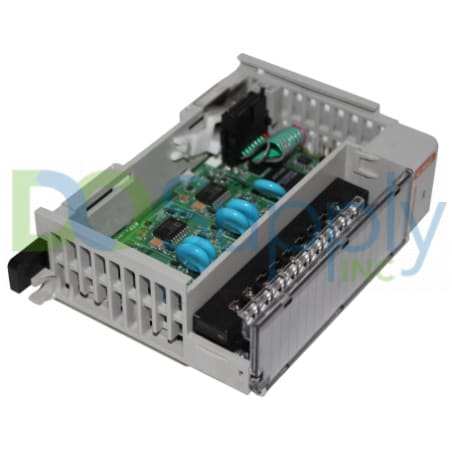

Allen Bradley CompactLogix 1769sc-IR6I

Product image is representative; revision or series may vary. Contact us to request a specific version.

1769sc-IR6I

|
Need a Specific Revision?

The 1769sc-IR6I from Allen Bradley is a highly specialized isolated RTD/resistance input module designed for the CompactLogix series. It features six isolated channels to measure various inputs with a 16-bit resolution, ensuring precise data capture for monitoring and control applications.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1769sc-IR6I

ManufacturerAllen Bradley
Product TypeIsolated RTD/Resistance Input Module
Product LineCompactLogix
Part Number1769sc-IR6I
Weight2.00 lbs (0.91 kg)
Number of Inputs6 individually isolated channels
Resolution16-bit
Isolation Voltage125 V AC
Backplane Current (5V)190 mA
Backplane Current (24V)35 mA
Min. Operating Temperature0°C
Max. Operating Temperature60°C
Min. Storage Temperature-40°C
Max. Storage Temperature85°C
Relative Humidity5 to 95% (non-condensing)
Installation Altitude1000 m
View as PDF
Request a Repair

The 1769sc-IR6I isolated RTD/resistance input module is part of Allen Bradley's CompactLogix series. This component is designed to handle six separate channels, each individually isolated, which provides flexibility in configuration and application. Users benefit from its 16-bit resolution, allowing for accurate input measurements critical in process control systems.

The device is rated for an isolation voltage of 125 V AC. For power requirements, it draws 190 mA from the 5V backplane supply and 35 mA from the 24V supply, ensuring efficient operations within control systems. Operating conditions for this module are specified between 0°C and 60°C, while the storage capability is broader, accommodating temperatures from -40°C to a maximum of 85°C.

Environmentally, the 1769sc-IR6I performs well within a relative humidity range of 5 to 95% (non-condensing), making it suitable for various settings, including those with high moisture levels. Installation can occur at altitudes of up to 1000 meters, making this module versatile for different industrial applications.

Revision Part #Also known as
1769sc-IR6I Ser A1769sc-IR6I/A, Series A, Rev A
Don't see your particular revision? Contact us now.
