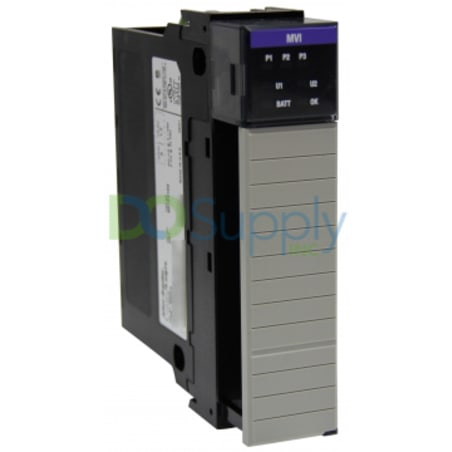

Allen Bradley ControlLogix 1756-MVID

Product image is representative; revision or series may vary. Contact us to request a specific version.

1756-MVID

|
Need a Specific Revision?

The 1756-MVID multi-vendor interface module by Allen-Bradley/Rockwell Automation is part of the ControlLogix 1756 product series. The power dissipation of the unit is 4 Watts and the backplane current load is 800 milliAmps at 5.1 Volts DC and 30 milliAmps at 24 Volts DC. The unit comes with open enclosure and it includes certifications from the CE, c-UL-us, and N223 standards. This model comes with special development kit CD.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1756-MVID

ManufacturerAllen Bradley
CategoryPLCs
Product LineControlLogix
Part Number1756-MVID
Weight2.25 lbs (1.02 kg)
TypeMulti-vendor interface module
Power dissipation4 Watts
Backplane current load at 5.1 Volts DC800 milliAmps
Backplane current load at 24 Volts DC30 milliAmps
Relative humidity5 to 95%, non-condensing
EnclosureNone (Open-style)
Shock30 G
Vibration2 G from 10 to 500 Hertz
Operating temperature0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit)
Storage temperature-40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit)
Certificationsc-UL-us, CE, N223
Request a Repair

The 1756-MVID module is a ControlLogix series multi-vendor interface module that has been designed and produced by Allen-Bradley/Rockwell Automation. This Bulletin 1756 component is approved for use in hazardous locations and it meets the requirements for safe operation in industrial environments. The product is part of Series A and it offers a simple and rugged design that is perfect for use in such conditions. The chassis-based components like the 1756-MVID module provide additional functionalities and they form a complete system with communication modules, amplifiers, power supplies, and input/output modules. The 1756-MVID is delivered with components like three serial adapter cables, installation instructions, and a CD ROM with development tools. The module is connected to the ControlLogix chassis and it can be installed into any slot. The unit has a power dissipation of 4 Watts and it is a low maintenance component which is extremely reliable.

The 1756-MVID ControlLogix multi-vendor interface module has a backplane current load of 800 milliAmps at 5.1 Volts DC and 30 milliAmps at 24 Volts DC. The humidity level should be between 5 and 95% (non-condensing). The component has an open style construction and it provides standard protection from vibration and shock. The vibration is rated as 2 G from 10 to 500 Hertz frequency and the specified maximum shock rating is 30 G. In regard to the environmental conditions, the 1756-MVID module has an operating temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) and it can be stored within a temperature range of -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit). The product includes certifications from the CE, c-UL-us, and N223 standards.
