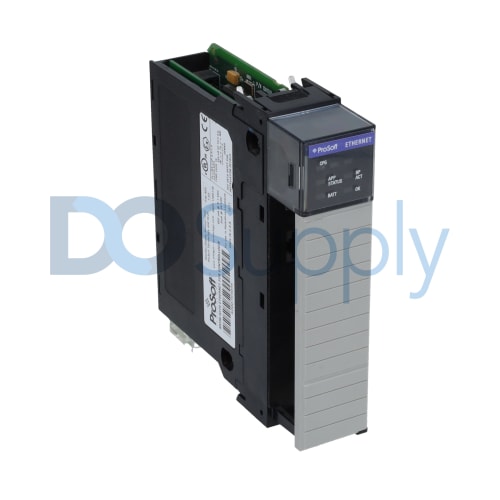

Allen Bradley ControlLogix MVI56-MNETR

Product image is representative; revision or series may vary. Contact us to request a specific version.

MVI56-MNETR

|
Need a Specific Revision?

The MVI56-MNETR from Allen Bradley is a Modbus TCP/IP interface module for use in ControlLogix systems. It requires a single slot for installation and provides essential connectivity for Modbus applications with a current draw of 800 mA at 5 VDC.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for MVI56-MNETR

ManufacturerAllen Bradley
Product TypeModbus TCP/IP Interface Module
Product LineControlLogix
Part NumberMVI56-MNETR
Weight3.00 lbs (1.36 kg)
Slot RequirementSingle-slot
Backplane Current (5V)800 mA at 5 VDC
Backplane Current (24V)3 mA at 24 VDC
Shock Resistance (Operational)30 G
Shock Resistance (Non-operational)50 G
Min. Operating Temperature0°C
Max. Operating Temperature60°C
Min. Storage Temperature-40°C
Max. Storage Temperature85°C
Relative Humidity5 to 95% (Non-Condensing)
Installation Altitude1000 m
Request a Repair

The Allen Bradley MVI56-MNETR is a dedicated interface module tailored for Modbus TCP/IP applications. Functionally, it fits within a single slot of the ControlLogix system, making for straightforward integration. This module utilizes a backplane current of 800 mA at 5 VDC and a minimal draw of only 3 mA at 24 VDC, ensuring efficient power consumption during operation.

Temperature-wise, the MVI56-MNETR is built to operate effectively between 0°C and 60°C. It also has a wide storage temperature range, tolerating lows of -40°C and highs of up to 85°C. With a relative humidity tolerance of 5% to 95% (non-condensing), this module is suitable for various factory conditions.

The device is designed to withstand operational shocks at a rating of 30 G and can handle up to 50 G shock resistance when not in operation. This durability is critical in environments where equipment may experience high mechanical stresses. Additionally, the module supports installation at altitudes of up to 1000 meters, making it versatile for a range of locations. Overall, the MVI56-MNETR enhances network communication capabilities for systems requiring Modbus TCP/IP protocols.
