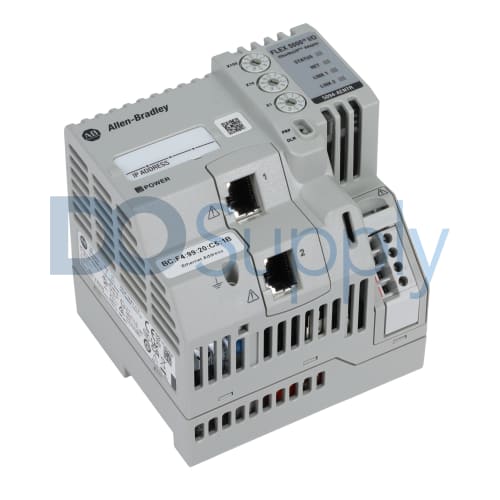

Description: The Allen-Bradley 5094-AENTR is a communication adapter from the Flex 5000 I/O series. This module features Two (2) RJ45 ports for Ethernet connectivity with built-in LED status indicators, IP address rotary switches, PRP / DLR switch, and a removable power RTB. It supports Parallel Redundancy Protocol (PRP) and Device Level Ring (DLR) topology on both ethernet ports via the built-in PRP switch. This module is mainly used for implementing distributed I/O applications. This content was written and compiled by DO Supply and should not be copied.
Rated 4.9 with 9 reviews

Preowned

Includes a 1-Year DO Supply warranty.

DO Supply is not an authorized distributor for Allen Bradley.

top legal disclaimer
top legal disclaimer

credit cards accepted
better business bureau

Call

Submit RFQ for 5094-AENTR

Add more parts to quote

Description: The Allen-Bradley 5094-AENTR is a communication adapter from the Flex 5000 I/O series. This module features Two (2) RJ45 ports for Ethernet connectivity with built-in LED status indicators, IP address rotary switches, PRP / DLR switch, and a removable power RTB. It supports Parallel Redundancy Protocol (PRP) and Device Level Ring (DLR) topology on both ethernet ports via the built-in PRP switch. This module is mainly used for implementing distributed I/O applications. This content was written and compiled by DO Supply and should not be copied.

Preowned

Includes a 1-Year DO Supply warranty.

DO Supply is not an authorized distributor for Allen Bradley.

top legal disclaimer
disclaimer
credit cards
better business bureau

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the 5094-AENTR.
Exchange: Exchange credit for your defective unit available.
Conditions: We sell preowned surplus and refurbished parts.

To speak to a sales representative for pricing & lead time:


Rated 4.9 with 9 reviews

    Technical Specifications for 5094-AENTR

ManufacturerAllen-Bradley
Manufacturer: Rockwell Automation
BrandAllen-Bradley
Brand: Allen-Bradley
Part Number5094-AENTRXT
Product Description: ControlNet communication module
Adapter TypeFLEX 5000 EtherNet/IP Adapter with RJ45 Ports
Part Number: 5094-AENTR
Voltage and current ratings, MP18...32V DC, 1250 mA
Voltage and current ratings, MP inrush18...32VDC, 3200 mA for 100 ms
Communication Port: Two (2) Ethernet ports
Voltage and current ratings, backplane15V DC, 1130 mA
Ethernet Data Transfer speed: 10 Mbps, 100 Mbps, 1 Gbps
Recommended external overcurrent protectionMOD Power: 10...12A @ 22.5...43.2 A2t, Fast ActingSA Power: 20 A @ 250V AC
Media: Copper
Power dissipation, max5.1 W @ 18V DC
Compatible modules:Flex 5000 I/O
Thermal dissipation, max17.4 BTU/hr @ 24V DC
Isolation voltage300V (continuous), Basic Insulation Type Tested @ 2121V AC for 60 s, Power to Backplane and Backplane to Ethernet Tested @ 4242V DC for 60 s, Power to Ethernet ports No isolation between Ethernet ports
Wiring category1 - on power ports. 1- on Ethernet ports.
Supported topologies: PRP / DLR
Wire typeCopper
LED status indicators: STATUS; NET; LINK 1; LINK 2
Wire size, power RTB0.34...2.5 mm (22...14 AWG) solid or stranded copper wire rated at 105 °C (221 °F), or greater, 1.2 mm (3/64 in.) insulation, max, single wire connection only. Ferrule according to DIN 46 228/1.
Mounting: Zinc-plated, chromate-passivated steel DIN; EN60715 - 35 x 7.5 mm (1.38 x 0.30 in.)
Wire size, functional earth terminal2.5 mm (14 AWG) solid or stranded copper wire rated at 105 °C (221 °F), or greater, 3.5 mm (0.14 in.) max diameter including insulation, single wire connection only.
External power supply: 18-32 VDC
ManufacturerAllen-Bradley
Manufacturer: Rockwell Automation
BrandAllen-Bradley
Brand: Allen-Bradley
Part Number5094-AENTRXT
Product Description: ControlNet communication module
Adapter TypeFLEX 5000 EtherNet/IP Adapter with RJ45 Ports
Part Number: 5094-AENTR
Voltage and current ratings, MP18...32V DC, 1250 mA
Voltage and current ratings, MP inrush18...32VDC, 3200 mA for 100 ms
Communication Port: Two (2) Ethernet ports
Voltage and current ratings, backplane15V DC, 1130 mA
Ethernet Data Transfer speed: 10 Mbps, 100 Mbps, 1 Gbps
Recommended external overcurrent protectionMOD Power: 10...12A @ 22.5...43.2 A2t, Fast ActingSA Power: 20 A @ 250V AC
Media: Copper
Power dissipation, max5.1 W @ 18V DC
Compatible modules:Flex 5000 I/O
Thermal dissipation, max17.4 BTU/hr @ 24V DC
Isolation voltage300V (continuous), Basic Insulation Type Tested @ 2121V AC for 60 s, Power to Backplane and Backplane to Ethernet Tested @ 4242V DC for 60 s, Power to Ethernet ports No isolation between Ethernet ports
Wiring category1 - on power ports. 1- on Ethernet ports.
Supported topologies: PRP / DLR
Wire typeCopper
LED status indicators: STATUS; NET; LINK 1; LINK 2
Wire size, power RTB0.34...2.5 mm (22...14 AWG) solid or stranded copper wire rated at 105 °C (221 °F), or greater, 1.2 mm (3/64 in.) insulation, max, single wire connection only. Ferrule according to DIN 46 228/1.
Mounting: Zinc-plated, chromate-passivated steel DIN; EN60715 - 35 x 7.5 mm (1.38 x 0.30 in.)
Wire size, functional earth terminal2.5 mm (14 AWG) solid or stranded copper wire rated at 105 °C (221 °F), or greater, 3.5 mm (0.14 in.) max diameter including insulation, single wire connection only.
External power supply: 18-32 VDC
s

About 5094-AENTR

The Allen-Bradley 5094-AENTR is a Flex 500 communication adapter. This module functions as the header module of a Flex 5000 I/O assembly, enabling the implementation of distributed I/O architecture. It comes with Two (2) Ethernet network communication interfaces in the form of RJ45 ports, supporting Parallel Redundancy Protocol (PRP) and Device Level Ring (DLR) topology. PRP is one of the modern approaches in implementing high-availability and fault-tolerant industrial communication. This feature is available with the 5094-AENTR adapters only, not found in earlier Flex I/O products. With PRP, Two (2) separate segments of Ethernet network with similar topology are established with configuration entered through software such as the Logix Designer and by setting the PRP / DLR hardware switch. Additionally, the 5094-AENTR continues to support Device Level Ring (DLR) topology where the module’s dual Ethernet ports act as integrated switches utilizing a single IP address. With DLR topology, an alternative communication path is provided where data can be transmitted when the primary path has failed. This topology operates at a single ethernet segment. The 5094-AENTR is powered by an external supply voltage of 18-32 VDC along 120 mA current supply. It supports mounting to a DIN rail with recommended DIN rail type of zinc-plated, chromate-passivated steel DIN rail to ensure continuous grounding connection. Built-in removable terminal block (RTB) is provided with the module which can be replaced with 5094-AENRTB-QTY5 screw-type terminal in packs of 5 and 5094-AENRTBS-QTY5 spring type in packs of 5 as well. This module measures 92.7 (H) x 94.0 (W) x 96.5 (D) mm (3.65 x 3.70 x 3.80 in.).

The Allen-Bradley/Rockwell Automation industrial adapter known as the 5094-AENTR adapter is part of the FLEX 5000 product series. The adapter installs to an EN60715 DIN rail and an open type of enclosure which is typical for FLEX 5000 components. The 5094-AENTR adapter has a weight of 400 grams (0.88 pounds) and dimensions that include a height of 92.7 millimeters (3.65 inches), a width of 94 millimeters (3.7 inches), and a depth of 96.5 millimeters (3.8 inches). The adapter uses standard 22 to 14 AWG copper wires and it comes with a removable terminal block (RTB).

The 5094-AENTR adapter has an insulation voltage rating of 300 Volts (continuous) for its basic insulation type and it does not include Ethernet port isolation. The adapter is intended for voltage from 18 to 32 Volts DC and its current rating is 1250 milliAmps. The 5094-AENTR adapter has the same inrush MP voltage rating and 3200 milliAmps for the 100 milliseconds inrush MP current rating. The unit dissipates a maximum power of 5.1 Watts at 18 Volts DC and its maximum thermal dissipation is 17.4 BTU per hour at 24 Volts DC. It should be noted that the adapter of this type is equipped with RJ45 ports. The terminal block torque for the functional earth terminal is 0.5 N-m or 4.4 pounds on an inch. Besides that, the terminal block torque for the screw-type power RTB is 0.4 N-m (3.5 pounds on an inch). The spring-type RTB is not applicable for this adapter. The 5094-AENTR adapter has 8 millimeters (0.3 inches) of insulation stripping length of its functional earth terminal.

FAQ for 5094-AENTR

1. Does the 5094-AENTR support Device Level Ring (DLR) topology?


Yes. The 5094-AENTR supports DLR topology.

2. What is the other network failover capability of the 5094-AENTR?


The 5094-AENTR also supports Parallel Redundancy Protocol (PRP).

3. What is the number of Ethernet ports available to this module?


The 5094-AENTR has two (2) Ethernet ports.

Technical Description of 5094-AENTR

The Allen-Bradley 5094-AENTR adapter module is an Allen-Bradley Ethernet adapter module from the FLEX 5000 series. It is used to connect FLEX 5000 series I/O modules to the Ethernet/IP network. The 5094-AENTR Ethernet adapter module is compatible with both standard and safety I/O modules. It only supports copper media. The 5094-AENTR Ethernet adapter module allows the I/O modules to reach Ethernet/IP communication speeds of up to 1 Gbps.

Repair Services for 5094-AENTR

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote
Our team of highly skilled technicians can repair your Allen Bradley PLC5094-AENTR. All of our repairs come with a 1 Year warranty, please contact us for more information about our repair process.

Reviews for 5094-AENTR

Product Review

"The 5094-AENTR is part of Allen-Bradley’s modern Flex I/O modules. The 5094-AENTR is specifically an Ethernet communication adapter that supports PRP and DLR topologies. DLR topologies are already available with previous adapter models however, PRP topology is available only to the 5094 series. " -DO Supply Tech

Dimensions For 5094-AENTR

Size
Input Type
Panel Cutout Height in mm
Panel Cutout Width in mm
Terminal Height in mm
Terminal Width in mm
Terminal Overall Depth in mm
Terminal Mounted Depth in mm

Dimensions For 5094-AENTR

Resolutions For 5094-AENTR

About

Technical Specifications for 5094-AENTR

ManufacturerAllen-Bradley
Manufacturer: Rockwell Automation
BrandAllen-Bradley
Brand: Allen-Bradley
Part Number5094-AENTRXT
Product Description: ControlNet communication module
Adapter TypeFLEX 5000 EtherNet/IP Adapter with RJ45 Ports
Part Number: 5094-AENTR
Voltage and current ratings, MP18...32V DC, 1250 mA
Voltage and current ratings, MP inrush18...32VDC, 3200 mA for 100 ms
Communication Port: Two (2) Ethernet ports
Voltage and current ratings, backplane15V DC, 1130 mA
Ethernet Data Transfer speed: 10 Mbps, 100 Mbps, 1 Gbps
Recommended external overcurrent protectionMOD Power: 10...12A @ 22.5...43.2 A2t, Fast ActingSA Power: 20 A @ 250V AC
Media: Copper
Power dissipation, max5.1 W @ 18V DC
Compatible modules:Flex 5000 I/O
Thermal dissipation, max17.4 BTU/hr @ 24V DC
Isolation voltage300V (continuous), Basic Insulation Type Tested @ 2121V AC for 60 s, Power to Backplane and Backplane to Ethernet Tested @ 4242V DC for 60 s, Power to Ethernet ports No isolation between Ethernet ports
Wiring category1 - on power ports. 1- on Ethernet ports.
Supported topologies: PRP / DLR
Wire typeCopper
LED status indicators: STATUS; NET; LINK 1; LINK 2
Wire size, power RTB0.34...2.5 mm (22...14 AWG) solid or stranded copper wire rated at 105 °C (221 °F), or greater, 1.2 mm (3/64 in.) insulation, max, single wire connection only. Ferrule according to DIN 46 228/1.
Mounting: Zinc-plated, chromate-passivated steel DIN; EN60715 - 35 x 7.5 mm (1.38 x 0.30 in.)
Wire size, functional earth terminal2.5 mm (14 AWG) solid or stranded copper wire rated at 105 °C (221 °F), or greater, 3.5 mm (0.14 in.) max diameter including insulation, single wire connection only.
External power supply: 18-32 VDC
ManufacturerAllen-Bradley
Manufacturer: Rockwell Automation
BrandAllen-Bradley
Brand: Allen-Bradley
Part Number5094-AENTRXT
Product Description: ControlNet communication module
