Allen Bradley FLEX 5000 5094-OA16

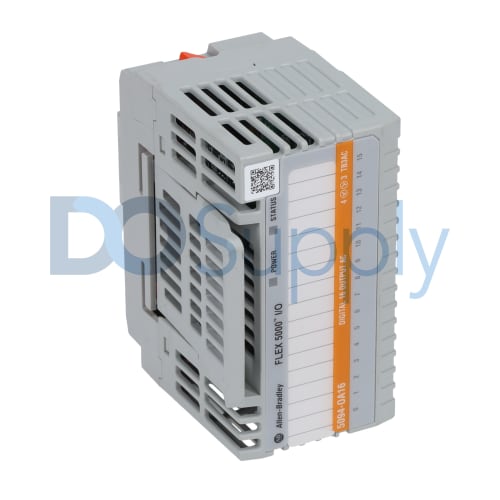

Product image is representative; revision or series may vary. Contact us to request a specific version.

5094-OA16

|
Need a Specific Revision?

The Allen Bradley 5094-OA16 output module is engineered for efficient control in various industrial settings. Capable of 16 sourcing outputs, it operates within the voltage category of 120/240 VAC, with a voltage range of 74 to 264 VAC. This module features an output current capacity of a maximum of 0.5 A at its rated voltage, designed to provide responsive performance for connected devices.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 5094-OA16

ManufacturerAllen Bradley
Product TypeOutput Module
Product LineFLEX 5000
Part Number5094-OA16
Weight3.00 lbs (1.36 kg)
UPC00 191326730921
Output Channels16 sourcing outputs
Output Voltage Category120/240 V AC
Output Voltage Range74 to 264 V AC
Nominal Voltage120/240 V AC
Output CurrentMax 0.5 A @ 120/240V AC
Frequency Rating50/60 Hz
Sensor/Actuator Power CurrentMax 4 A @ 120/240 V AC
Backplane Power15 V DC, max 100 mA
Output Current Rating0.5 A @ 120/240V AC
Off-State Leakage CurrentMax 1 mA
Enclosure Type RatingNone (open style)
Wire Size0.34 to 2.5 mm2 (22 to 14 AWG)
Isolation Voltage250 V continuous reinforced (system-to-field)
Request a Repair

The Allen Bradley part number 5094-OA16 is designed as an output module for the FLEX 5000 series, facilitating the control of various devices in industrial applications. This module features 16 output channels that are capable of delivering power within the voltage ranges of 74 to 264 VAC. It nominally functions at 120/240 V AC and supports a maximum output current of 0.5 A at the rated voltage.

Operating with a compatible frequency of 50/60 Hz, the 5094-OA16 allows for a maximum sensor or actuator power current of 4 A under the same voltage specifications. Notably, this output module requires backplane power rated at 15 V DC with a maximum consumption of 100 mA.

In terms of electrical characteristics, the off-state leakage current does not exceed 1 mA, ensuring minimal power loss when outputs are inactive. The enclosure type is designated as open style, meaning it lacks a protective cover, allowing for easy access and cooling during operation.

Compatibility with wire sizes ranging from 0.34 to 2.5 mm² (22 to 14 AWG) enables various installation options. Additionally, the isolation voltage is rated at 250 V continuous reinforced, providing protection between the system and field connections. The 5094-OA16 output module exemplifies reliability and functionality for connecting various sensors and actuators in an industrial setup.
