Allen Bradley Flex I/O 1794 1794-TB37DS

Product image is representative; revision or series may vary. Contact us to request a specific version.

1794-TB37DS

|
Need a Specific Revision?

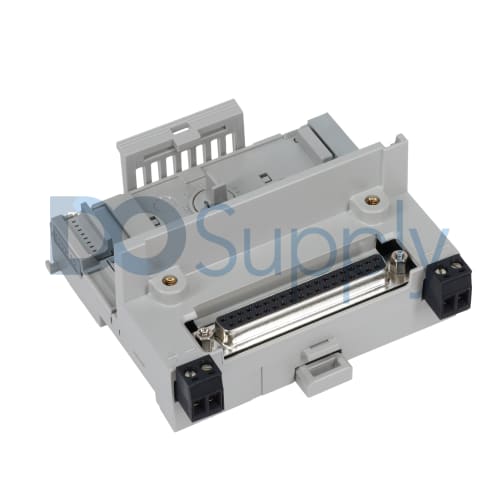

The Allen Bradley 1794-TB37DS serves as a terminal base unit designed for integration within the Flex I/O 1794 series. It employs D-Shell termination and supports connections for both digital and analog configurations, accommodating a total of 37 pins. This unit has a maximum current capacity of 10A.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1794-TB37DS

ManufacturerAllen Bradley
Product TypeTerminal Base Unit
Product LineFlex I/O 1794
Part Number1794-TB37DS
UPC612598318582
Weight3.00 lbs (1.36 kg)
Termination TypeD-Shell Termination
Connection TypeDigital and Analog Connection
Number of Pins37 Pins
Max. Current Capacity10A
FunctionIt is used for both digital and analog modules
Terminal Screw Torque0.6 Nm
Enclosure TypeOpen Type
Relative Humidity5 to 95% (non-condensing)
Vibration Resistance5G @ 10 to 500 Hz
Operating Temperature Range0 to 55°C
Request a Repair

The 1794-TB37DS from Allen Bradley is constructed as a terminal base unit that integrates into the Flex I/O 1794 setup. This unit is specifically designed with 37 pins, utilizing D-Shell termination to provide reliable connections for both digital and analog modules. It is built to support a maximum current of 10 Amps, making it suitable for a variety of applications.

The open-type enclosure design enhances accessibility for installation and maintenance. With a terminal screw torque requirement of 0.6 Nm, proper connections are ensured for reliable operation. In terms of environmental adaptability, this unit operates efficiently at temperatures ranging from 0 to 55 degrees Celsius, while also performing optimally in relative humidity conditions of 5% to 95% without the risk of condensation. Additionally, the 1794-TB37DS can withstand vibration levels of up to 5G, specifically in the 10 to 500 Hz frequency range, underscoring its durability in industrial settings. Overall, this terminal base unit is a critical component for facilitating both digital and analog I/O applications in Allen Bradley's Flex I/O system.
