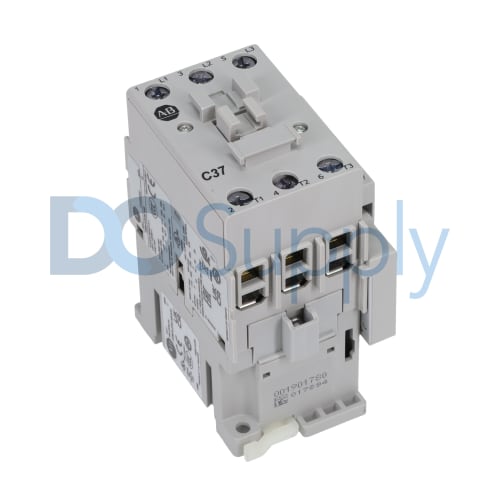

Allen Bradley IEC 100 Contactors 100-C37EJ10

Product image is representative; revision or series may vary. Contact us to request a specific version.

100-C37EJ10

|
Need a Specific Revision?

The 100-C37EJ10 from Allen Bradley is an IEC contactor designed to efficiently manage electrical loads. This device operates with a nominal coil voltage of 24V DC and is constructed to support high performance in varied operating environments.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 100-C37EJ10

ManufacturerAllen Bradley
Product TypeIEC Contactor
Product LineIEC 100 Contactors
Part Number100-C37EJ10
UPC612598706983
Weight3.00 lbs (1.36 kg)
Nominal Coil Voltage24V DC
Rated Operating Current (Ie) at AC-165A at 415V and 40 degrees Celsius
Rated Operating Current (Ie) at AC-337A at 415V and 60 degrees Celsius
Kilowatt Rating at AC-318.5 kW at 690V and 60 degrees Celsius
Number of Poles3 Poles
Main Pole Contact Configuration3 N.O. Contacts
Auxiliary Contact Configuration1 N.O. Contact
Coil TypeElectronic
Integrated Coil DiodeYes
Ingress Protection RatingIP20
Request a Repair

The Allen Bradley 100-C37EJ10 is a reliable IEC contactor optimized for various industrial contexts. Its coil operates at a nominal voltage of 24V DC, making it well-suited for automatic control applications.

This contactor supports a rated operating current of 65A at AC-1 when utilized with a 415V power supply and maintains efficiency at 40 degrees Celsius. Under AC-3 conditions, it also caters to a 37A rating at 415V while operating at 60 degrees Celsius. The kilowatt rating can reach 18.5 kW at 690V under these thermal conditions, affirming its ability to handle substantial loads.

In terms of configuration, the contactor consists of three main poles, each equipped with normally open contacts (N.O.), allowing for effective load switching. Additionally, it includes one auxiliary contact configured as normally open, enhancing its flexibility in operational setups. The electronic coil type is supplemented by an integrated diode, ensuring smoother operation and circuit protection.

Defined by an ingress protection rating of IP20, the 100-C37EJ10 is rated for use in environments where moderate protection from solid objects is acceptable. This makes it highly functional in indoor facilities or similar settings where exposure to hazardous elements is minimal.
