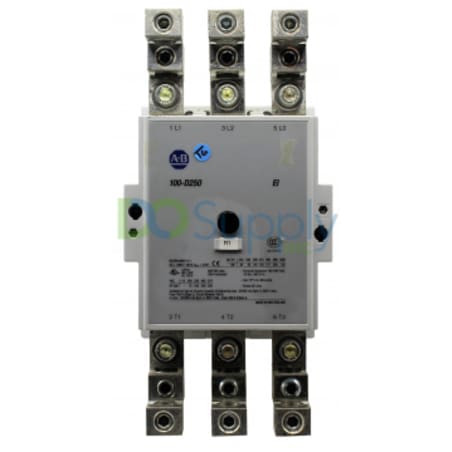

Allen Bradley IEC 100 Contactors 100-D250ED00

Product image is representative; revision or series may vary. Contact us to request a specific version.

100-D250ED00

|
Need a Specific Revision?

The IEC contactor with the product code 100-D250ED00 is designed by Allen-Bradley/Rockwell Automation and it is part of the Bulletin 100-D product series. The 100-D250ED00 contactor is rated at 250 Amps of current and it has 3 poles. The non-reversing contactor has output power ratings of 250 kilowatts at 690 Volts and 250 Horsepower at 575 Volts.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 100-D250ED00

ManufacturerAllen Bradley
CategoryPLCs
Product LineIEC 100 Contactors
Part Number100-D250ED00
UPC781180104909
Weight15.00 lbs (6.80 kg)
Number of Poles3
OperationAC-Operated, Non-Reversing
Coil typeElectronic coil with el. interface
Current Rating250 Amps
AC Voltage Frequency50 or 60 Hertz
Ratings for switching AC motors at 230 Volts80 kilowatts
Ratings for switching AC motors at 400 Volts140 kilowatts
Ratings for switching AC motors at 415 Volts145 kilowatts
Ratings for switching AC motors at 500 Volts177 kilowatts
Ratings for switching AC motors at 690 Volts250 kilowatts
Ratings for switching AC motors at 1000 Volts132 kilowatts
Auxiliary ContactsNone
Coil Voltage110 to 130 Volts AC
Request a Repair

The product code 100-D250ED00 is an order reference for an Allen-Bradley/Rockwell Automation contactor that can be combined with a variety of parts to form a complete industrial contactor and control system that operates at the highest level. A typical system of this kind consists of circuit breakers, contactors, smart motor controllers, overload relays, load switches, and other components. The 100-D250ED00 contactor is part of the Allen-Bradley Bulletin 100-D series and it is built for AC applications. This contactor is very efficient in regard to energy consumption and it is built from resistant and durable materials. The compatible motor parts for this contactor are robust, easy to install, affordable, and easy to maintain. There is a variety of motor protection devices, motor starters, bimetal thermal overload relays, and other components that are available for customizing the contactor.

The Allen-Bradley/Rockwell Automation 100-D250ED00 Bulletin 100-D contactor has a current rating of 250 Amps. The 100-D250ED00 contactor provides 250 Horsepower of rated output power at a voltage rating of 575 Volts and 200 Horsepower of rated output power at a voltage rating of 460 Volts. The 100-D250ED00 contactor is a 3-pole type of contactor that has an electronic coil and a coil voltage range of 110 to 130 Volts AC. The contactor’s coil also includes an electronic interface for control and it has an operating frequency range of 50 or 60 Hertz. The 100-D250ED00 contactor comes without any auxiliary contacts built into it but optional auxiliary contact blocks can be installed on it if necessary.
