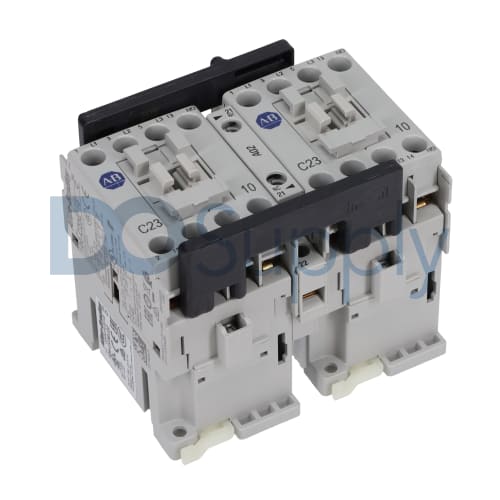

Allen Bradley IEC 104 Contactors 104-C23EJ22

Product image is representative; revision or series may vary. Contact us to request a specific version.

104-C23EJ22

|
Need a Specific Revision?

The 104-C23EJ22 is a reversing contactor from Allen Bradley’s IEC 104 Contactors series, designed for various control applications. It operates with a rated control supply voltage of 24 VDC and can handle a maximum current of 97 A.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 104-C23EJ22

ManufacturerAllen Bradley
Product TypeReversing Contactor
Product LineIEC 104 Contactors
Part Number104-C23EJ22
UPC662074925414
Weight1.88 lbs (0.85 kg)
Voltage Type for ActuatingDC
Rated Control Supply Voltage24 VDC
Maximum Current (Ie)97 A
Maximum Switching Frequency200 operations per hour
Main Current Circuit Resistance2 mOhm
Cross Section per UL/CSA16 AWG
Rated Operational Current for Contactor in Elevator Duty (UL/CSA)21.0 A at 460V
Rated Operational Power for Contactor in Elevator Duty (UL/CSA)5 Hp at 230V
Rated Isolation Voltage (Ui)690V at IEC
Request a Repair

The 104-C23EJ22 from Allen Bradley is part of the IEC 104 Contactors series and is specifically classified as a reversing contactor. It is actuated by a DC voltage of 24 volts, enabling precise control in various applications. This component can manage a maximum current of 97 amperes, supporting demanding tasks without interruption.

Designed for enhanced performance, the contactor can conduct operations at a maximum frequency of 200 per hour. Low circuit resistance is a notable feature, with the main current circuit exhibiting just 2 mOhm. In compliance with UL and CSA standards, the conductor size is rated at 16 AWG, ensuring compatibility with necessary installation requirements.

When elevator duty is specified, the contactor is rated operationally for 21.0 A at 460V. Additionally, it supports a maximum power rating of 5 horsepower at 230V for similar applications, making it a suitable choice in scenarios where motor control is essential. The rated isolation voltage is 690V per IEC guidelines, reflecting the robust design that meets international standards. This product's versatility and specifications make it applicable in various control tasks, including those requiring reversing capabilities.
