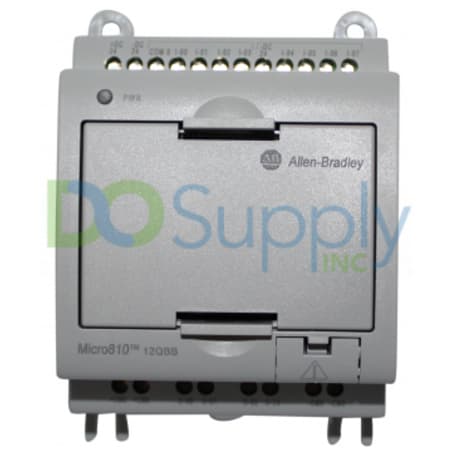

Allen Bradley Micro 810 2080-LC10-12QBB

2080-LC10-12QBB

|

The 2080-LC10-12QBB controller is an Allen-Bradley/Rockwell Automation programmable controller. It has been designed and manufactured as part of the Allen-Bradley Micro 810 series. The 2080-LC10-12QBB programmable controller can operate with almost any 24 Volts DC rated power supply that meets its compatibility requirements. The voltage range supported by this controller is from 12 to 24 Volts DC. The 2080-LC10-12QBB programmable controller has 8 AC/DC inputs, 4 analog inputs, and 4 relay outputs.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with DO Supply's 2-year warranty.
Learn more
  • We sell industrial automation parts backed by our 2-year DO Supply Warranty.

  • Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.

  • AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.

  • Repairs and exchanges are available for all automation products.

  • Reseller Options

    Drop shipping, blind shipping, and account shipping with no extra fees.

Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for 2080-LC10-12QBB

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2080-LC10-12QBB
Product TypeProgrammable Controller
Power12-24V DC
Number of I/O8 Input(4 digital, 4 analog/digital); 4 Output
Dimensions HxWxD3.58 x 2.95 x 2.32 in.
Supply Voltage Range11.4V-26.4V DC
Power Consumption3W
Voltage Range12/24V DC Class 2
Isolated AC Input On-state Voltage nom.12/24V AC at 50/60 Hz
DC Input On-state Voltage nom.12/24V DC
Analog Input Voltage Range0-10V DC
DC Output User Supply Voltage min./max.10V DC/ 26.4V DC
Inputs8 12-24V DC/V AC
Outputs4 24V DC SRC; 4 Analog
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

The 2080-LC10-12QBB is a Micro810 Logic Controller that provides a cost-effective control solution for small applications. The Micro810 logic controller belongs to the family of Allen Bradley Micro800 programmable controllers and is the smallest among them. The 2080-LC10-12QBB microcontroller functions as a smart relay with a high current output. The smart relay function can be configured using the 1.5 inch LCD display and keypad, and the controller comes with a 12 point form factor with 8A inputs that eliminate the need to use external relays. All the function blocks in the 2080-LC10-12QBB microcontroller include Delay ON/OFF Timer, Time of Day, Week and Year for applications that require a programmable timer & lighting control. The device can be programmed by downloading a program through the USB programming port. The 2080-LC10-12QBB microcontroller is made to operate within a range of 120 to 240 Volt AC and 12 to 24 Volt DC options. It can be easily connected to a computer for programming using a Micro810 USB adapter.

The optional power supply can be utilized for applications where a 24 Volt DC supply is not available. The 2080 LCD module also functions as a memory back up for the 2080-LC10-12QBB microcontroller. Using this module, a user can easily check the status and configure the controller. This module is removable, but should not be removed in hazardous locations.

Revision Part #Also known as
2080-LC10-12QBB Ser A2080-LC10-12QBB/A, Series A, Rev A
