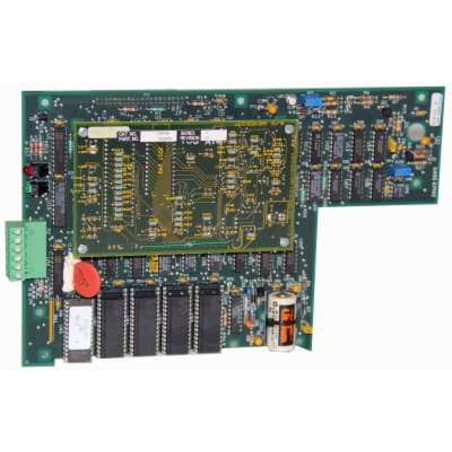

Allen Bradley PLC 5 1784-F30D

Product image is representative; revision or series may vary. Contact us to request a specific version.

1784-F30D

|
Need a Specific Revision?

The 1784-F30D from Allen Bradley is an expansion module within the PLC 5 series designed for efficient remote I/O capabilities. This module interfaces with plant floor terminals and supports extended node capabilities. It operates reliably within specified temperature ranges and offers comprehensive baud rate performance.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1784-F30D

ManufacturerAllen Bradley
CategoryPLCs
Product LinePLC 5
Part Number1784-F30D
Weight3.00 lbs (1.36 kg)
ProductExpansion Module
Expansion Module TypeRemote I/O Module
Compatible Terminal TypePlant Floor Terminals
Extended Node CapabilitySupported
Slave ModuleYes, slave to I/O scanner
Maximum Baud Rate with Extended Node Capability230.4 KBaud
Maximum Baud Rate without Extended Node Capability230.4 KBaud
Humidity Rating5 to 95% (Non-Condensing)
Operating Temperature32 to 140 Degrees Fahrenheit
Storage Temperature-40 to 185 Degrees Fahrenheit
Request a Repair

Designed for the Allen Bradley PLC 5 series, the part number 1784-F30D acts as an essential expansion module. This remote I/O module efficiently connects to plant floor terminals, enhancing functionality in various applications. It is established as a slave module tied to an I/O scanner, allowing for integration within a broader control system.

Supporting the extended node capability, this module notably allows for a maximum baud rate of 230.4 KBaud, ensuring reliable communication and data transfer. In fact, this baud rate remains the same with or without the extended node capability, demonstrating consistent performance. The operational environment for the 1784-F30D is wide-ranging, with an operational humidity rating from 5% to 95% (non-condensing) contributing to its adaptability in diverse conditions.

Temperature-wise, it is functional between 32 degrees and 140 degrees Fahrenheit, ensuring reliable performance within a variety of work environments. When not in use, it can be stored in temperatures as low as -40 degrees and up to 185 degrees Fahrenheit, highlighting its resilience. Overall, the 1784-F30D expansion module is engineered to facilitate remote I/O operations with versatility and robustness in challenging conditions.
