Allen Bradley PLC 5 1784-PKTXD

Product image is representative; revision or series may vary. Contact us to request a specific version.

1784-PKTXD

|
Need a Specific Revision?

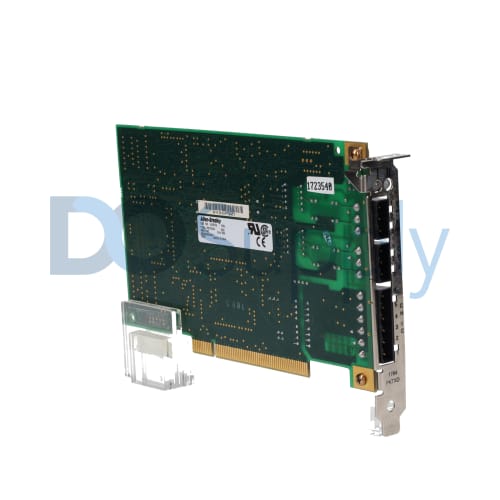

The 1784-PKTXD is a PCI Network Interface Card from Allen Bradley's PLC 5 series. It facilitates connections across multiple networks such as DH+, RIO, and DH-485, providing versatility for system integration.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1784-PKTXD

ManufacturerAllen Bradley
Product TypePCI Network Interface Card
Product LinePLC 5
Part Number1784-PKTXD
UPC612598181056
Weight0.31 lbs (0.14 kg)
GTIN/UPC612598181056
Supported NetworksDH+, RIO, and DH-485 (CH1 only)
Host BusUniversal PCI, 2.3 compliant
Channels2 independent
CH 1 Connectors3-pin Phoenix (DH+/RIO); 6-pin Phoenix (DH-485)
CH 2 Connector3-pin Phoenix (DH+/RIO)
DH+ / RIO Rates57.6, 115.2, or 230.4 kbit/s
DH-485 Rates1200 bit/s to 19200 bit/s
Max DH+ / RIO Distance3048 m at 57.6 kbit/s; 1524 m at 115.2 kbit/s; 762 m at 230.4 kbit/s
Max DH-485 Distance1219 m (4000 ft)
Power Draw800 mA at 5V DC (4.0 W)
Surge Immunity±2 kV line-earth per IEC 61000-4-5
EFT Immunity±2 kV at 5 kHz per IEC 61000-4-4
Request a Repair

Allen Bradley's 1784-PKTXD is an efficient PCI Network Interface Card intended for use within PLC 5 systems. The design is compliant with Universal PCI 2.3 and supports a range of networks, notably DH+, RIO, and DH-485 (Channel 1 exclusively). This network card accommodates two independent communication channels.

For connections, Channel 1 includes both a 3-pin Phoenix connector for DH+/RIO and a 6-pin Phoenix connector for DH-485. Channel 2 similarly uses a 3-pin Phoenix connector for DH+/RIO communication. The data transmission over DH+ and RIO can operate at rates of 57.6, 115.2, or 230.4 kbit/s, whereas DH-485 supports rates between 1200 bit/s and 19200 bit/s.

Distance capabilities for DH+ and RIO are significant, allowing runs of up to 3048 meters at 57.6 kbit/s, 1524 meters at 115.2 kbit/s, and 762 meters at 230.4 kbit/s. Meanwhile, DH-485 can extend communications over a maximum stretch of 1219 meters (or 4000 feet). With an operational power draw of 800 mA at 5V DC (totaling 4.0 Watts), this card is designed to provide robust support in demanding environments.

The 1784-PKTXD also features high levels of surge immunity, boasting ±2 kV line to earth per IEC 61000-4-5 standards, along with EFT immunity of ±2 kV at 5 kHz following IEC 61000-4-4 standards. This ensures reliable, interference-free operation in various industrial applications, enhancing system durability and performance.

Revision Part #Also known as
1784-PKTXD Ser A1784-PKTXD/A, Series A, Rev A
Don't see your particular revision? Contact us now.
