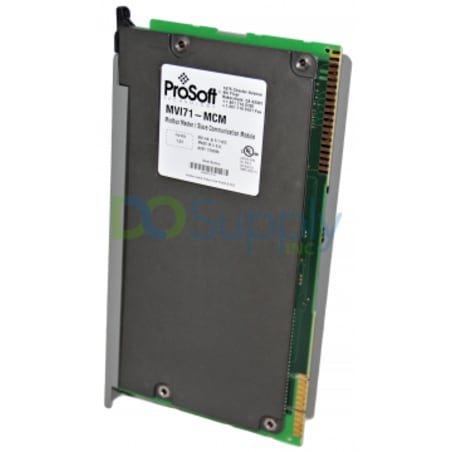

MVI71-MCM

Revisions: Ser A
Description: The ProSoft MVI71-MCM Modbus Master/Slave Network Interface Module has 1 Slot and Ladder Logic Data Transfer. It also has 5000 Registers and a Local or Remote Rack.
Available Now
Request a quote for MVI71-MCM

Description:

The ProSoft MVI71-MCM Modbus Master/Slave Network Interface Module has 1 Slot and Ladder Logic Data Transfer. It also has 5000 Registers and a Local or Remote Rack.


DO Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with DO Supply's 1-year warranty

Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

disclaimer
credit cards
better business bureau
Revisions: Ser A

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via UPS, DHL, and TNT
Repairs: We offer repair service for the MVI71-MCM.
Exchange: Exchange credit for your defective unit available.
Conditions: We sell preowned surplus and refurbished parts.

To speak to a sales representative for pricing & lead time:


Rated 4.7 with 10 reviews

    Technical Specifications for MVI71-MCM

Manufacturer
BrandAllen-Bradley
Part Number/Catalog No.MVI71-MCM
Product TypeModbus Master/Slave Network Interface Module
Rockwell Automation Compatible SeriesProgrammable Logic Controller
Slot1
Data TransferLadder Logic
Registers5000
RackLocal or Remote
Shock30G Operational
Backplane Current Load800 mA @ 5V
Manufacturer
BrandAllen-Bradley
Part Number/Catalog No.MVI71-MCM
Product TypeModbus Master/Slave Network Interface Module
Rockwell Automation Compatible SeriesProgrammable Logic Controller
Slot1
Data TransferLadder Logic
Registers5000
RackLocal or Remote
Shock30G Operational
Backplane Current Load800 mA @ 5V
s

About MVI71-MCM

The Allen-Bradley MVI71-MCM module is a Modbus master/slave network interface module. It is classified under the programmable logic controller series and it is a single-slot 1771 backplane compatible module. The unit is recognized as an input/output module with access to processor memory. This allows for a simplified data connection between the processor and the module. The MVI71-MCM module also features the Ladder Logic protocol that enables a seamless data transfer from the module to the processor. The MVI71-MCM module requires the Allen-Bradley PLC processor with a compatible power supply. For optimal performance, it requires a minimum of 64 MB of RAM. However, the manufacturer recommends 256 MB of RAM for optimal functionality. In addition, ensure that it has at least 400 MB of free hard disk space, and use a 256-color VGA graphics indicator.



During the installation of the MVI71-MCM module, follow all of the safety instructions. Failure to follow the safety regulations could result in damage to the unit or even cause serious injury. The MVI71-MCM module can only handle cold swapping. Therefore, the power should be disconnected before the insertion or removal of the module from the chassis. For effective functioning, there should be a minimal amount of data transferred to the module. The MVI71-MCM module features 1 or 2 stop bits and the data size is 7 or 8 bits. The MVI71-MCM module comes with a baud rate of 110 to 115 kilobaud and it supports the floating-point data movement. It features a command list of up to 100 commands per master port.

Repair Services for MVI71-MCM

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your MVI71-MCM. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for MVI71-MCM

Please refer to the manual for more information about the MVI71-MCM such as the wiring diagrams, data sheets and migration or obsolescence details.

Revision Part # Also Known as Availability
MVI71-MCM Ser A
MVI71-MCM/A, Series A, Rev A Request Quote
