Allen Bradley Point I/O 1734 1734-4IOL

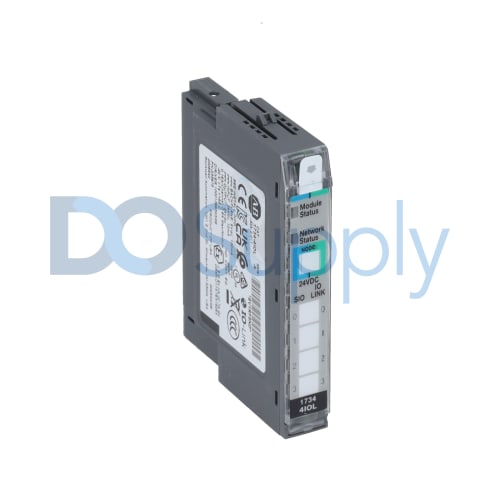

Product image is representative; revision or series may vary. Contact us to request a specific version.

1734-4IOL

|
Need a Specific Revision?

The 1734-4IOL from Allen Bradley functions as an IO-Link Master Module within the Point I/O series. This compact module offers four channels for effective integration with sensors and actuators, supporting a variety of applications in automation.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1734-4IOL

ManufacturerAllen Bradley
CategoryPLCs
Product LinePoint I/O 1734
Part Number1734-4IOL
UPC887172307751
Weight0.31 lbs (0.14 kg)
ProductIO-Link Master Module
Number of Channels4
Backplane Power5V DC, 100 mA
Input Ratings24V DC, 12 mA
Output Ratings24V DC, 0.15 mA per Channel
Minimum On-State Input Voltage13V DC
Maximum On-State Input Voltage30V DC
Minimum On-State Output Voltage19.2V DC
Maximum On-State Output Voltage28.8V DC
Operating Temperature-20 to 55 degrees Celsius
Storage Temperature-40 to 85 degrees Celsius
Request a Repair

The Allen Bradley part number 1734-4IOL is a highly functional IO-Link Master Module that integrates seamlessly into the Point I/O series. This module features four distinct channels, allowing for versatile connections to various sensors and actuators for automation scenarios. It operates on a backplane power supply of 5V DC with a consumption of 100 mA. Its input ratings are specified at 24V DC and 12 mA, making it efficient in processing inputs from connected devices.

Output ratings are established at 24V DC with a per-channel output of 0.15 mA, enabling effective control over connected components. The module is designed to accommodate a minimum on-state input voltage of 13V DC and a maximum of up to 30V DC. For output voltage requirements, it provides a range from a minimum of 19.2V DC to a maximum of 28.8V DC, ensuring adequate performance across various applications.

In terms of environmental specifications, the 1734-4IOL module is rated for operation in temperatures ranging from -20 to 55 degrees Celsius. For storage conditions, it can withstand extremes ranging from -40 to 85 degrees Celsius. This module is ideal for use in industrial environments, where reliability and adaptability to temperature fluctuations are key.
