1734-EPAC

Revisions: Ser A

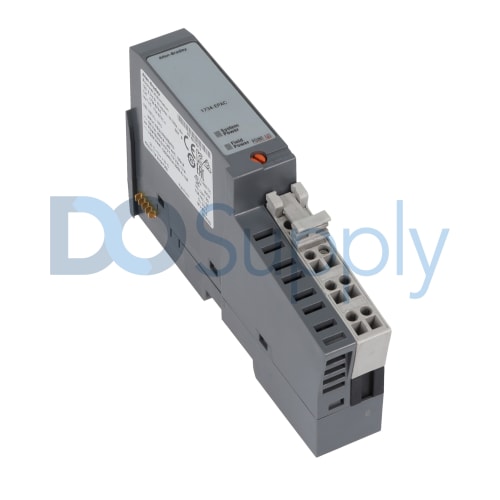

Description: The Allen-Bradley 1734-EPAC is a POINT I/O Expansion Power Supply. It has 120 or 240 Volts AC Field Power and an Inrush Current of 2 amps for 6 milliseconds with MOV and Fuse Overvoltage Protection. This Expansion Power Supply has a 10 amps Power Supply Current.
In Stock Ships Today
Request a quote for 1734-EPAC

Description: The Allen-Bradley 1734-EPAC is a POINT I/O Expansion Power Supply. It has 120 or 240 Volts AC Field Power and an Inrush Current of 2 amps for 6 milliseconds with MOV and Fuse Overvoltage Protection. This Expansion Power Supply has a 10 amps Power Supply Current.

DO Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with DO Supply's 1-year warranty

Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

disclaimer
credit cards
better business bureau
Revisions: Ser A

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via UPS, DHL, and TNT
Repairs: We offer repair service for the 1734-EPAC.
Exchange: Exchange credit for your defective unit available.
Conditions: We sell preowned surplus and refurbished parts.

To speak to a sales representative for pricing & lead time:


Rated 4.7 with 16 reviews

    Technical Specifications for 1734-EPAC

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1734-EPAC
SeriesPOINT I/O
Module TypeExpansion Power Supply
Field Power120 or 240 Volts AC
Inrush Current2 amps for 6 milliseconds
Overvoltage ProtectionMOV and Fuse
Power Consumption15.1 Watts
Power Supply Current10 amps
Isolation Voltage264 Volts Continuous
Power Dissipation 8.4 Watts
Thermal Dissipation28.7 BTU/hour
ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1734-EPAC
SeriesPOINT I/O
Module TypeExpansion Power Supply
Field Power120 or 240 Volts AC
Inrush Current2 amps for 6 milliseconds
Overvoltage ProtectionMOV and Fuse
Power Consumption15.1 Watts
Power Supply Current10 amps
Isolation Voltage264 Volts Continuous
Power Dissipation 8.4 Watts
Thermal Dissipation28.7 BTU/hour
s

About 1734-EPAC

The Allen-Bradley 1734-EPAC is a POINT I/O 120 to 240 Volts AC expansion power supply that transmits field power to I/O modules. It is also used to separate field power, efficiently creating a logical and functional partition between input and output modules, and grouping modules according to a specific function or task. This power supply can support 4 to 17 I/O modules – with the exact number depending on the DIN-rail position and current required for each module. Multiple 1734-EPAC’s with POINT I/O adapters can also be used to assemble a full system.





The 1734-EPAC Expansion Power Supply has an input voltage rating of 120 to 240 Volts AC nominal, 50 to 60 Hertz, and an 85 to 264 Volts AC range. It has a power consumption of 15.1 W maximum and a power dissipation of 8.4 W maximum at 264 Volts AC. With a 264 Volts continuous isolation voltage, it is tested to withstand 3250 Volts DC for 60 seconds. It comes with 2 green indicators – 1 for field power status and another for 5 Volts of system power. Plus, it features MOV and fuses input overvoltage protection. The 1734-EPAC is industry compliant with cULus, CE, and C-Tick certifications. The operating temperature should not exceed 55 degrees Celsius (131 degrees Fahrenheit) and the relative humidity should not exceed 95%, noncondensing. Make sure to turn off field wide power when connecting or disconnecting the wiring to prevent an electrical arc from occurring.



Repair Services for 1734-EPAC

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 1734-EPAC. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for 1734-EPAC

Please refer to the manual for more information about the 1734-EPAC such as the wiring diagrams, data sheets and migration or obsolescence details.

Revision Part # Also Known as Availability
1734-EPAC Ser A
1734-EPAC/A, Series A, Rev A Request Quote
Common misspellings:
  • l734-EPAC
  • 173A-EPAC
  • 1734EPAC

Dimensions For 1734-EPAC

Size
Input Type
Panel Cutout Height in mm
Panel Cutout Width in mm
Terminal Height in mm
Terminal Width in mm
Terminal Overall Depth in mm
Terminal Mounted Depth in mm

Dimensions For 1734-EPAC

Resolutions For 1734-EPAC

Why Buy From Do Supply Inc?
  • 1 Year Do Supply Warranty on most products

  • Fast and convenient shipping

  • Large inventory of over 20,000 items

  • Great low prices on all conditions

  • Extensive quality control and testing
About

Technical Specifications for 1734-EPAC

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1734-EPAC
SeriesPOINT I/O
Module TypeExpansion Power Supply
Field Power120 or 240 Volts AC
Inrush Current2 amps for 6 milliseconds
Overvoltage ProtectionMOV and Fuse
Power Consumption15.1 Watts
Power Supply Current10 amps
Isolation Voltage264 Volts Continuous
Power Dissipation 8.4 Watts
Thermal Dissipation28.7 BTU/hour
ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1734-EPAC
SeriesPOINT I/O
Module TypeExpansion Power Supply
Field Power120 or 240 Volts AC
Inrush Current2 amps for 6 milliseconds
Overvoltage ProtectionMOV and Fuse
Power Consumption15.1 Watts
Power Supply Current10 amps
Isolation Voltage264 Volts Continuous
Power Dissipation 8.4 Watts
Thermal Dissipation28.7 BTU/hour

About 1734-EPAC

The Allen-Bradley 1734-EPAC is a POINT I/O 120 to 240 Volts AC expansion power supply that transmits field power to I/O modules. It is also used to separate field power, efficiently creating a logical and functional partition between input and output modules, and grouping modules according to a specific function or task. This power supply can support 4 to 17 I/O modules – with the exact number depending on the DIN-rail position and current required for each module. Multiple 1734-EPAC’s with POINT I/O adapters can also be used to assemble a full system.





The 1734-EPAC Expansion Power Supply has an input voltage rating of 120 to 240 Volts AC nominal, 50 to 60 Hertz, and an 85 to 264 Volts AC range. It has a power consumption of 15.1 W maximum and a power dissipation of 8.4 W maximum at 264 Volts AC. With a 264 Volts continuous isolation voltage, it is tested to withstand 3250 Volts DC for 60 seconds. It comes with 2 green indicators – 1 for field power status and another for 5 Volts of system power. Plus, it features MOV and fuses input overvoltage protection. The 1734-EPAC is industry compliant with cULus, CE, and C-Tick certifications. The operating temperature should not exceed 55 degrees Celsius (131 degrees Fahrenheit) and the relative humidity should not exceed 95%, noncondensing. Make sure to turn off field wide power when connecting or disconnecting the wiring to prevent an electrical arc from occurring.
