1734-IR2E

Revisions: Ser A Ser B Ser C

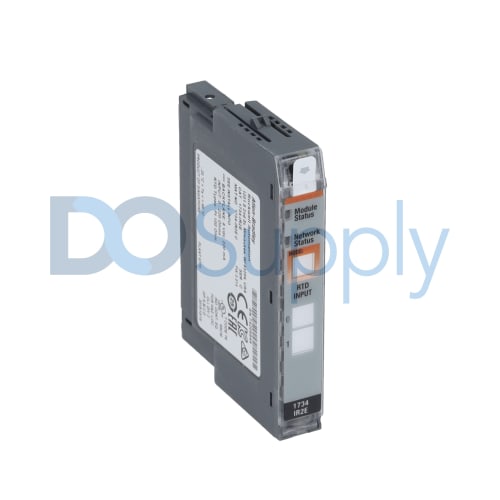

Description: The Allen-Bradley 1734-IR2E is a POINT I/O Analog Temperature Input Module. It has 2 high resolution RTD Inputs and a Data Format of Signed Integer with an Input Resolution of 16 bits. This Analog Temperature Input Module has a 1 Watt Power Dissipation. This content was written and compiled by D-O Supply and should not be copied.
Available Now
Request a quote for 1734-IR2E

Description: The Allen-Bradley 1734-IR2E is a POINT I/O Analog Temperature Input Module. It has 2 high resolution RTD Inputs and a Data Format of Signed Integer with an Input Resolution of 16 bits. This Analog Temperature Input Module has a 1 Watt Power Dissipation. This content was written and compiled by D-O Supply and should not be copied.

Preowned

Includes a 1-Year DO Supply warranty.

DO Supply is not an authorized distributor for Allen Bradley.

top legal disclaimer
disclaimer
credit cards
better business bureau
Revisions: Ser A Ser B Ser C

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the 1734-IR2E.
Exchange: Exchange credit for your defective unit available.
Conditions: We sell preowned surplus and refurbished parts.

To speak to a sales representative for pricing & lead time:


Rated 4.1 with 14 reviews

    Technical Specifications for 1734-IR2E

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1734-IR2E
SeriesPOINT I/O
Module TypeAnalog Temperature Input Module
Inputs2 high resolution RTD
Data FormatSigned Integer
Input Resolution16 bits
Isolation Voltage50 Volts Continuous
Power Dissipation1 Watt
Thermal Dissipation3.3 BTU/hour
EnclosureOpen
Keyswitch Position6
Weight0.08 pounds (0.036 kilograms)
Dimensions (H x W x D)2.21 x 0.47 x 2.97 inches
Operating Temperature-20-55 Celsius
UPC10612598347695
ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1734-IR2E
SeriesPOINT I/O
Module TypeAnalog Temperature Input Module
Inputs2 high resolution RTD
Data FormatSigned Integer
Input Resolution16 bits
Isolation Voltage50 Volts Continuous
Power Dissipation1 Watt
Thermal Dissipation3.3 BTU/hour
EnclosureOpen
Keyswitch Position6
Weight0.08 pounds (0.036 kilograms)
Dimensions (H x W x D)2.21 x 0.47 x 2.97 inches
Operating Temperature-20-55 Celsius
UPC10612598347695
s

About 1734-IR2E

The Allen-Bradley 1734-IR2E is a POINT analog temperature input module. It comes with 2 single-ended, non-isolated high-resolution RTDs. Users can monitor the network status, module status, and status of the inputs in real time through the indicators. It can produce up to 6 bytes of fault status data and input data without consuming any I/O data. It has a 16-bit resolution at 2.4 milliohms/cnt and 0.006 degrees Celsius/cnt. The 1734-IR2E module comes with an open-type enclosure and can be mounted on a DIN rail to a 1734-TB, 1734-TBS, 1734-TOP, or a 1734-TOPS terminal base unit. Note that users can only use 22 to 14 AWG shielded thermocouple wire with this module. The entire 1734-IR2E measures 2.97 x 0.47 x 2.21 inches and weighs around 0.036 kilograms or 0.08 pounds.



No external DC power supply is needed for the 1734-IR2E module. It comes with an accuracy of 0.1% full scale at 25 degrees Celsius and an accuracy drift with the temperature of 30 ppm/degree Celsius, but these only apply to ohm input. The module also has alarms for over-range, under-range, low level, high level, and open wire conditions. Users can select from 1 of the 4 predefined temperature scales (Celsius, Fahrenheit, Kelvin, and Rankine) or one custom scale (mV). The module also has a common mode rejection ratio of 120 dB and a normal mode rejection ratio of 100 dB. The 1734-IR2I has an input range of 0 to 220 ohms and a voltage rating of 24 Volts DC. It also has a 0 to 220 ohms resistance, a 6 to 60 milliseconds input step response, and a power dissipation of 1 Watts.



Repair Services for 1734-IR2E

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 1734-IR2E. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for 1734-IR2E

Please refer to the manual for more information about the 1734-IR2E such as the wiring diagrams, data sheets and migration or obsolescence details.

Revision Part # Also Known as Availability
1734-IR2E Ser A
1734-IR2E/A, Series A, Rev A Request Quote
1734-IR2E Ser B
1734-IR2E/B, Series B, Rev B Request Quote
1734-IR2E Ser C
1734-IR2E/C, Series C, Rev C Request Quote
Common misspellings:
  • l734-IR2E
  • 173A-IR2E
  • 1734IR2E

Dimensions For 1734-IR2E

Size
Input Type
Panel Cutout Height in mm
Panel Cutout Width in mm
Terminal Height in mm
Terminal Width in mm
Terminal Overall Depth in mm
Terminal Mounted Depth in mm

Dimensions For 1734-IR2E

Resolutions For 1734-IR2E
