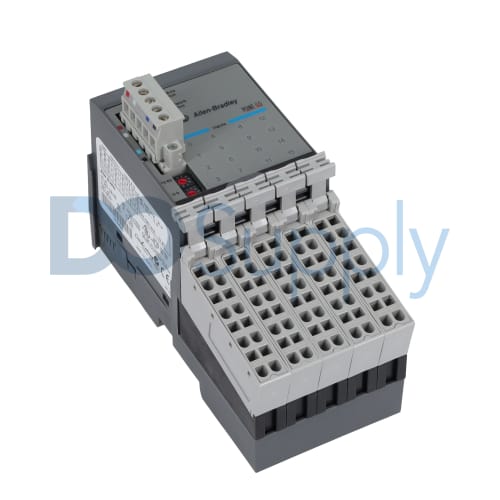

1734D-IB16S

The 1734D-IB16S is a compact digital DC input module from the Allen Bradley Point I/O 1734 series. Designed for efficient interface capabilities, this model accommodates 16 DC inputs, allowing for comprehensive control and monitoring of system inputs.

Specifically, it operates on a nominal input voltage of 12/24 VDC, with a broader operational range extending from 10 to 28.8 VDC. This voltage flexibility makes it compatible with a variety of DC input signals. The input configuration is of the current sinking variety, ensuring effective signal processing for controlling connected devices. An integrated DeviceNet adapter enables direct connection to DeviceNet networks, capable of supporting communication speeds of 125, 250, and 500 kbps.

Mounting this module is straightforward with the DIN rail setup, providing an organized solution in control panels. Connectivity is facilitated through removable spring clamp terminals, allowing for easy installation and maintenance. A selectable input filter can be adjusted between 0 and 65 ms, aiding in the optimization of input response times.

This module is designed to function efficiently within a temperature range of 0°C to 60°C during operation, making it suitable for many industrial environments. Its storage capabilities allow for temperatures as low as -40°C to as high as 85°C, accommodating various application requirements. Additionally, it can perform in relative humidity conditions ranging from 5% to 95%, without concerns of condensation, enhancing its versatility in industrial settings.
