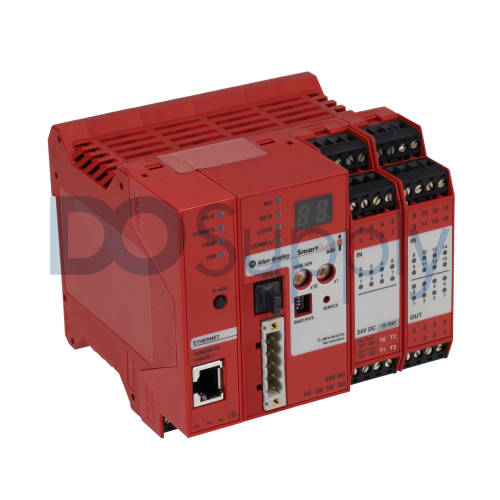

Allen Bradley SmartGuard 600 1752-L24BBBE

Product image is representative; revision or series may vary. Contact us to request a specific version.

1752-L24BBBE

|
Need a Specific Revision?

The 1752-L24BBBE from Allen Bradley, part of the SmartGuard 600 series, is a specialized safety controller that features numerous connectivity options. This unit provides 16 digital inputs and 8 digital outputs, supporting various control configurations.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1752-L24BBBE

ManufacturerAllen Bradley
Product TypeSafety Controller
Product LineSmartGuard 600
Part Number1752-L24BBBE
UPC612598513994
Weight2.69 lbs (1.22 kg)
Number of Inputs/Outputs16 digital inputs and 8 digital outputs
Protection ClassIP20
Nominal Supply Voltage24 Volts DC
Operating Frequency50 to 60 Hertz
Allowable Supply Voltage Range20.4 to 26.4 Volts DC
Heat Dissipation9.3 Watts (under maximum load)
Communication PortsEthernet, DeviceNet, and USB ports
Current Consumption280 milliamperes at 24 Volts DC
Inrush Current4.8 Amperes (maximum) for 600 microseconds
Ethernet Data Rate10 to 100 megabits per second
Input Impedance2.6 kiloohms
DeviceNet Current Load15 milliamperes at 24 Volts DC
Output Current Rating0.5 Amperes
Request a Repair

The 1752-L24BBBE safety controller, part of Allen Bradley's SmartGuard 600 series, is designed to meet complex control requirements in industrial settings. With the capability of handling 16 digital inputs and 8 digital outputs, this controller offers significant flexibility in system configuration and monitoring.

Operating on a nominal supply voltage of 24 Volts DC, it functions effectively within a voltage range of 20.4 to 26.4 Volts DC. This unit operates across frequencies of 50 to 60 Hertz, ensuring compatibility with various applications. It also has a current consumption of 280 milliamperes, making it efficient in energy use. The controller has a maximum inrush current of 4.8 amperes for a brief span of 600 microseconds, providing the necessary surge capacity during start-up.

Data transfer is facilitated through multiple communication ports, including Ethernet, DeviceNet, and USB, making it well-suited for integration into modern control systems. The Ethernet data rate supports ranges of 10 to 100 megabits per second, allowing for effective communication bandwidth.

The safety controller provides an input impedance of 2.6 kiloohms and is capable of a DeviceNet current load of 15 milliamperes at 24 Volts DC. Finally, the output of the device has a current rating of up to 0.5 amperes, which ensures adequate power is supplied to connected components.

The 1752-L24BBBE is protected by an IP20 class rating, safeguarding it against typical dust and liquid exposure, making it a reliable component in various operational environments. Heat dissipation under maximum load is recorded at 9.3 Watts, highlighting efficient thermal management for sustained operation.
