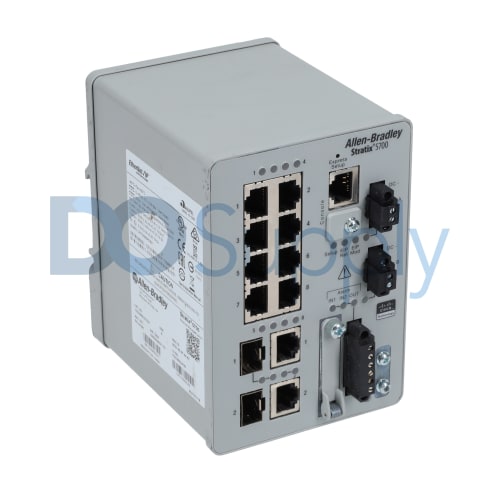

Allen Bradley Stratix 5700 1783-BMS10CGA

Product image is representative; revision or series may vary. Contact us to request a specific version.

1783-BMS10CGA

|
Need a Specific Revision?

The product code 1783-BMS10CGA is used for an Ethernet switch from the Stratix 5700 series by Allen-Bradley/Rockwell Automation. The device has a total of 10 ports, including 8 RJ45 ports and 2 combo ports.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1783-BMS10CGA

ManufacturerAllen Bradley
CategoryPLCs
Product LineStratix 5700
Part Number1783-BMS10CGA
UPC886739973507
Weight2.94 lbs (1.33 kg)
Total Ports10 Ports
RJ45 Ports8 Fast Ports
Combo Ports2 Gigabit Ports
Power Consumption12.5 Watts at 24 Volts DC
Isolation Voltage50 Volts (Continuous)
Enclosure TypeOpen
Operating Temperature-40 to 60 degrees Celsius (-40 to 140 degrees Fahrenheit)
Storage Temperature-40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit)
Request a Repair

The catalog number 1783-BMS10CGA is reserved for an Allen-Bradley/Rockwell Automation industrial Ethernet switch that operates at a high level. This compact Ethernet switch features a total of 10 ports that can be used for various applications. The ports include 8 fast RJ45 Ethernet ports and 2 Gigabit combo Ethernet ports. The 1783-BMS10CGA Ethernet switch is part of the Stratix 5700 Ethernet switch series. The power requirements of this switch include 0.5 to 2 Amps of current at a voltage range of 12 to 48 Volts DC. The power consumption rating of the switch is 9.5 Watts at 24 Volts DC and at a temperature of 40 degrees Celsius (104 degrees Fahrenheit). In addition to that, the isolation voltage rating of the 1783-BMS10CGA switch is 50 Volts (continuous) and it features a basic type of insulation.

The Allen-Bradley/Rockwell Automation 1783-BMS10CGA Stratix 5700 series Ethernet switch requires a 4-square-millimeter ground connection option with stranded copper wire and it supports a memory card with the product code 1784-SD1. The weight of the switch is 1.25 kilograms or 2.75 pounds and the enclosure of the switch is open. Additionally, the 1783-BMS10CGA Ethernet switch carries a T4 temperature code according to both the IEC and North American standards. The drive does not provide isolation between individual Ethernet ports or between the console port and system. The supported SFP modules are modules from the Allen-Bradley 1783 series with suffixes of -SFP100FX, -SFP1GSX, -SFP100LX, and -SFP1GLX. The torque rating of the 1783-BMS10CGA switch is 0.23 N-m or 2 pounds on an inch for the power and alarm connections and 0.96 N-m or 8.5 pounds on an inch for the ground terminals.
