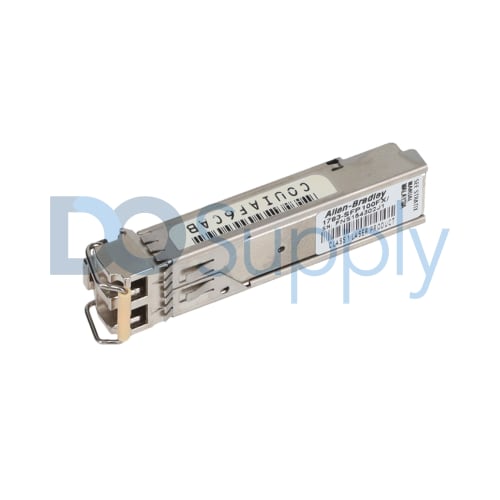

Allen Bradley Stratix Managed Switches 1783-SFP100FX

Product image is representative; revision or series may vary. Contact us to request a specific version.

1783-SFP100FX

|
Need a Specific Revision?

The 1783-SFP100FX transceiver from Allen Bradley falls under the Stratix Managed Switches product line. This fiber transceiver is a 100BASE-FX multimode device, supporting fast Ethernet communications over 2 kilometers.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1783-SFP100FX

ManufacturerAllen Bradley
Product TypeSFP Fiber Transceiver
Product LineStratix Managed Switches
Part Number1783-SFP100FX
UPC612598347773
Weight3.00 lbs (1.36 kg)
EthernetNo
Fast EthernetYes
Gigabit EthernetNo
Type100BASE-FX Multimode Fiber
Cable Length2 km
Core Size/Cladding Size62.5/125 micron
Interface ConnectorDual LC
Wavelength1310 Nm
Digital Optical Monitoring (DOM)Yes
Modal Bandwidth500 MHz/km
Environmental Temperature-40 °C
10 Gigabit EthernetNo
Request a Repair

The Allen Bradley 1783-SFP100FX is a specific type of SFP fiber transceiver with capabilities tailored for fast Ethernet applications. It does not support standard Ethernet or Gigabit Ethernet standards. This transceiver is compatible with 100BASE-FX multimode fiber technology, which enables communication over fiber optic cabling. The effective transmission length for this module reaches up to 2 kilometers, allowing it to meet the communication needs of varied applications.

The optical core is constructed with 62.5 microns and a 125-micron cladding size. Connectivity is facilitated through dual LC interface connectors. Operating at a wavelength of 1310 Nm, this transceiver is optimized for multimode transmission.

Additionally, the 1783-SFP100FX features Digital Optical Monitoring (DOM), which allows users to monitor performance and detect issues easily. This transceiver's modal bandwidth is measured at 500 MHz/km, providing high data transfer capabilities. The transceiver operates within an environmental temperature range, maintaining functionality even in low conditions as extreme as -40 °C. However, it is important to note that this model does not support 10 gigabit Ethernet standards.
