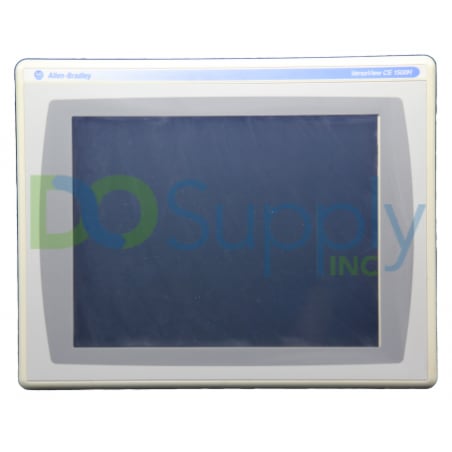

Allen Bradley Display 6182H 6182H-15TRH4D

Product image is representative; revision or series may vary. Contact us to request a specific version.

6182H-15TRH4D

|
Need a Specific Revision?

The 6182H-15TRH4D, an operator interface terminal from Allen Bradley's Display 6182H series, boasts a versatile touchscreen input. Designed for a wide array of applications, this terminal features standard communication via Ethernet and RS-232 protocols, ensuring effective data exchange.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 6182H-15TRH4D

ManufacturerAllen Bradley
Product TypeOperator Interface Terminal
Product LineDisplay 6182H
Part Number6182H-15TRH4D
Weight9.00 lbs (4.08 kg)
Communication ProtocolStandard Communication (Ethernet & RS-232)
RAM Capacity128 MB
Flash Memory128 MB
Input TypeTouchscreen
Display Size15 inches
Power TypeDC Power
Resolution1024 x 768 Pixels
Rated Voltage24V DC nominal (18 to 32 V DC)
Relative Humidity5 to 95% (Non-condensing)
Installation Height2000 m
Display TypeColor Active Matrix TFT LCD
View as PDF
Request a Repair

The model 6182H-15TRH4D, produced by Allen Bradley, is an operator interface terminal dedicated to industrial applications. This terminal incorporates a user-friendly touchscreen and integrates standard communication protocols, including Ethernet and RS-232. Featuring a generous display size of 15 inches, it utilizes color active matrix TFT LCD technology.

The screen resolution stands at 1024 x 768 pixels, offering clear visibility for user interaction. The operator terminal operates on a DC power supply, with a nominal voltage of 24V DC, accommodating a voltage range between 18 to 32 V DC. It is designed to endure general industrial conditions, capable of functioning in relative humidity levels between 5 and 95% without condensation.

Additionally, this terminal is suitable for installation at elevations up to 2000 meters, expanding its versatility. With 128 MB of RAM and an equal amount in flash memory, it ensures efficient performance and sufficient storage capacity for applications, making it a robust choice for operators seeking reliability and functionality in their interface equipment.

Revision Part #Also known as
6182H-15TRH4D Ser A6182H-15TRH4D/A, Series A, Rev A
Don't see your particular revision? Contact us now.
