6186M-17PT

Revisions: Ser A Ser B Ser C Ser D Ser E Ser F

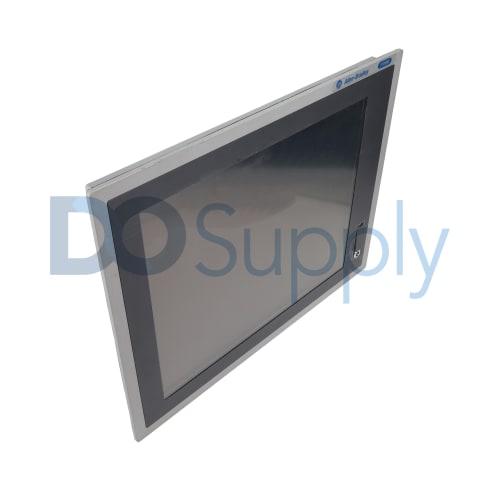

Description: The Allen-Bradley/Rockwell Automation 6186M-17PT monitor is a display monitor from the Allen-Bradley VersaView series. It provides a 17-inch active-matrix screen with full color graphics to different industrial devices such as non-display computers that do not have monitors but require them for certain applications. The 6186M-17PT display monitor can be controlled through a touchscreen with an antiglare shield. It has an aluminum bezel and it supports both AC and DC input voltage. The 6186M-17PT display monitor can operate at 100 to 240 Volts AC or at 9 to 36 Volts DC.
In Stock Ships Today
Request a quote for 6186M-17PT

Description: The Allen-Bradley/Rockwell Automation 6186M-17PT monitor is a display monitor from the Allen-Bradley VersaView series. It provides a 17-inch active-matrix screen with full color graphics to different industrial devices such as non-display computers that do not have monitors but require them for certain applications. The 6186M-17PT display monitor can be controlled through a touchscreen with an antiglare shield. It has an aluminum bezel and it supports both AC and DC input voltage. The 6186M-17PT display monitor can operate at 100 to 240 Volts AC or at 9 to 36 Volts DC.

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the 6186M-17PT.
Exchange: Exchange credit for your defective unit available.

To speak to a sales representative for pricing & lead time:


Rated 4.7 with 12 reviews

    Technical Specifications for 6186M-17PT

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.6186M-17PT
Product Line1700M Industrial Monitor
Display Size 17 in.
Display ColorColor Active Matrix TFT
Input TypeResistive Touchscreen
Input Power100-240V AC or 9-36V DC
Software Windows XP Professional
Bezel TypeAluminum
Backlight50,000 hours to half-life
Mounting Options Panel, Bench, Tabletop, Rack, or DIN Rail
Shipping Weight24 lbs.
Shipping Dimensions15 x 18 x 4 in.
ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.6186M-17PT
Product Line1700M Industrial Monitor
Display Size 17 in.
Display ColorColor Active Matrix TFT
Input TypeResistive Touchscreen
Input Power100-240V AC or 9-36V DC
Software Windows XP Professional
Bezel TypeAluminum
Backlight50,000 hours to half-life
Mounting Options Panel, Bench, Tabletop, Rack, or DIN Rail
Shipping Weight24 lbs.
Shipping Dimensions15 x 18 x 4 in.
s

About 6186M-17PT

The 6186M-17PT Performance Industrial Monitor by Allen-Bradley is an industrial-based display device which provides a visual interface through a 17-inch wide color active matrix LCD touch screen for controlling and maintaining of industrial applications. It offers a unique display dimension of 338mm x 270mm (13.3in x 10.7in) and supports several selectable resolutions from 720 x 400 pixels to 1280 x 1024 pixels with a 16.7M colors depth for each resolution. The touch resistive and antiglare display surface has a luminance of 350 cd/m2 (Nits) and comes with a Cold Cathode Fluorescent Tube backlight with a standby time of 50,000 hours. It provides a 1000:1 contrast ratio with 5:4 aspect ratio and has a response time lower than 35ms.

The 6186M-17PT has a video transmission frequency capacity of 140 MHz and a digital and analog DVI and HD-15 VGA video signal connector at the backside which provide a digital and analog video signal. It has two USB ports on the back and one on the front with a current capacity of 500mA used for direct communication with external devices like keyboards and printers. The 6186M-17PT is a panel-mounted Industrial monitor which uses a DIN rail-mounted AC power adapter, with a voltage rating of 100-240V AC at 47-63Hz and a power consumption of 55W. Additionally, the 6186M-17PT has a display OSD setup mode which allows for control of display contrast, brightness, display orientation, image lock, and color balance, and it has a Windows XP Pro Operating System. It weighs 8.6kg (19lb) and has total dimensions of 356mm x 452mm x 61mm (14.02in x 17.80in x 2.4in).



Technical Description of 6186M-17PT

Allen Bradley VersaView series Industrial Monitors with 17 in. Color Active Matrix TFT display, Resistive Touchscreen and 100-240V AC or 9-36V DC input power

Repair Services for 6186M-17PT

Type Lead Time Price Action
Repair Service 2-4 weeks $1836.85cartAdd to Cart

Our highly skilled technicians can repair your 6186M-17PT. All of our repairs come with a 1 Year Warranty. Please contact us for additional information about our repair process.

Revisions for 6186M-17PT

Please refer to the manual for more information about the 6186M-17PT such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.

Revision Part # Also Known as Availability
6186M-17PT Ser A
6186M-17PT/A, Series A, Rev A Request Quote
6186M-17PT Ser B
6186M-17PT/B, Series B, Rev B Request Quote
6186M-17PT Ser C
6186M-17PT/C, Series C, Rev C Request Quote
6186M-17PT Ser D
6186M-17PT/D, Series D, Rev D Request Quote
6186M-17PT Ser E
6186M-17PT/E, Series E, Rev E Request Quote
6186M-17PT Ser F
6186M-17PT/F, Series F, Rev F Request Quote
Common misspellings:
  • 6l86M-17PT
  • 61b6M-17PT
  • 6186M-l7PT
  • 6186M17PT

Dimensions For 6186M-17PT

Size
Input Type
Panel Cutout Height in mm
Panel Cutout Width in mm
Terminal Height in mm
Terminal Width in mm
Terminal Overall Depth in mm
Terminal Mounted Depth in mm

Dimensions For 6186M-17PT
