6177R-MMSS8

Revisions: Ser A

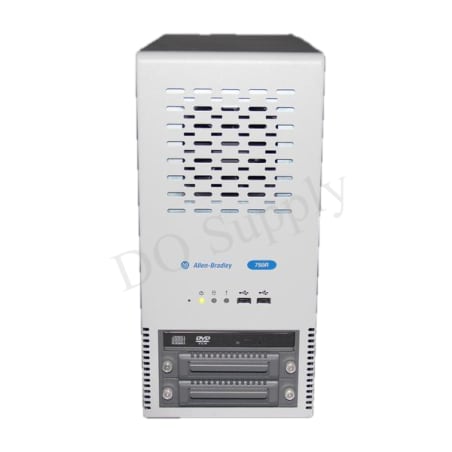

Description: The 6177R-MMSS8 industrial computer is a non-display computer that has no built-in display or monitor. It has been designed and manufactured by Allen-Bradley/Rockwell Automation in the VersaView series. Allen-Bradley also manufactures industrial monitors in the VersaView series that can be connected to the 6177R-MMSS8 non-display computer when it needs to have a display. The 6177R-MMSS8 non-display computer has a port for connecting to a mouse and another port for connecting to a keyboard.
Call
Request a quote for 6177R-MMSS8

Description: The 6177R-MMSS8 industrial computer is a non-display computer that has no built-in display or monitor. It has been designed and manufactured by Allen-Bradley/Rockwell Automation in the VersaView series. Allen-Bradley also manufactures industrial monitors in the VersaView series that can be connected to the 6177R-MMSS8 non-display computer when it needs to have a display. The 6177R-MMSS8 non-display computer has a port for connecting to a mouse and another port for connecting to a keyboard.

DO Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with DO Supply's 1-year warranty

Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

disclaimer
credit cards
better business bureau
Revisions: Ser A

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via UPS, DHL, and TNT
Repairs: We offer repair service for the 6177R-MMSS8.
Exchange: Exchange credit for your defective unit available.
Conditions: We sell preowned surplus and refurbished parts.

To speak to a sales representative for pricing & lead time:


Rated 4.3 with 21 reviews

    Technical Specifications for 6177R-MMSS8

ManufacturerRockwell Automation
BrandAllen-Bradley
ProcessorIntel i5-2400 3.1 GHz, Quad Core
RAM8GB DDR3
ModelServer
Input Power100-240V AC
Memory2 x 500 GB
Mount TypeMachine Mount
Shipping Weight30.36 lb
ManufacturerRockwell Automation
BrandAllen-Bradley
ProcessorIntel i5-2400 3.1 GHz, Quad Core
RAM8GB DDR3
ModelServer
Input Power100-240V AC
Memory2 x 500 GB
Mount TypeMachine Mount
Shipping Weight30.36 lb
s

About 6177R-MMSS8

The Allen-Bradley 6177R-MMSS8 is an industrial computer without an integrated display. It belongs to the 750R series and it can be combined with an industrial display to complete the system. The system can be configured for RAID and it is enabled for RAID 1. A DVD-RW optical drive is included as standard.  Expansion slots include one PCI, one PCI Express x 16, one PCI Express x 4 and one PCI express x 1.



The 6177R-MMSS8 includes two 10/100/1000 Gbps Ethernet interfaces for network connectivity. The integrated I/O ports include two serial, one parallel, one PS/2 for a mouse, one PS/2 for a keyboard, seven USB 2.0 ports, two USB 3.0 ports, one eSATAp, two DVI, audio line in/out and microphone. The 6177R-MMSS8 operates on 100 to 240 Volts AC power at 50 or 60 Hertz. The system draws 10 Amps at 100 Volts RMS and 5 Amps at 240 Volts RMS. The 6177R-MMSS8 is available in a machine-mount form factor. The dimensions of the system are 14.17 x 6.69 x 15.01 inches and it weighs 13.8 kilograms. The working temperature range for the 6177R-MMSS8 is 0 to 50 degrees Celsius. The supported relative humidity range is 10 to 90% (non-condensing). The computer produces 44.3 dB sound while in idle mode and a maximum of 63.4 dB sound while operating.

This content was written and compiled by dosupply.com and should not be copied.

Technical Description of 6177R-MMSS8

VersaView Non-Display series Terminals with 8GB DDR3 of RAM, also a 2 x 500 GB for storage and an input power of 100-240V AC

Repair Services for 6177R-MMSS8

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote
Our highly skilled technicians can repair your 6177R-MMSS8. All of our repairs come with a 1 Year Warranty. Please contact us for additional information about our repair process.

Revisions for 6177R-MMSS8

Please refer to the manual for more information about the 6177R-MMSS8 such as the wiring diagrams, data sheets and migration or obsolescence details.

Revision Part # Also Known as Availability
6177R-MMSS8 Ser A
6177R-MMSS8/A, Series A, Rev A Request Quote
