6181P-17TPXPH

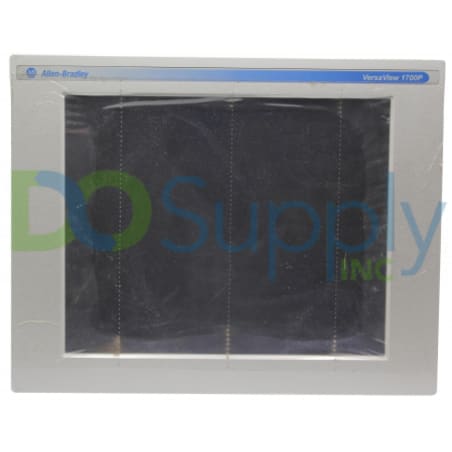

The Allen-Bradley 6181P-17TPXPH is a VersaView 1700P integrated display performance computer that comes with a 17-inch touchscreen display. The touchscreen used is a PCAP touchscreen type with a resistive antiglare and the display is an active color matrix thin film transistor (TFT) type. This display has a native resolution of 1284 x 1024 and 24-bit colors. It is equipped with an Intel Pentium 4 2.0 GHz processor and a 1 GB DDR RAM that can be expanded to 2 GB. Ports present on this computer include 1 parallel port, 3 serial ports, 2 USB 2.0 ports, 2 PS/2 ports for the keyboard and mouse, 1 10-100 Ethernet port, microphone port, 1 video port, and audio line in and out. It also has a half-length PCI slot and 1 CompactFlash Type 2 slot for additional storage. Drives installed are a slim floppy drive and a slim DVD/CD-RW drive.

The input power of this computer is 90-264V AC, which is auto-ranging, and the line frequency is 47-63 Hz. The 6181P-17TPXPH’s operating temperature range is 0-50 oC and its non-condensing relative humidity is 10-90%. It also comes with an operating shock of 15 g at ½ sine for 11 ms and an operating vibration of 1 g peak, swept sine at 10-500 Hz. This computer has approximate dimensions of 14.02 x 17.80 x 4.32 inches. Note that the 6181P-17TPXPH computer is panel-mounted.

The 6181P-17TPXPH ships with a cutout template, an installation guide, mounting clips, and a support CD. It can be installed in an industrial environment with a pollution level of Pollution Degree 2, a Category II overvoltage rating, and with a maximum altitude of 6562 feet. Minimize the electrical noise in the work environment to ensure that the touchscreen will respond properly.

When mounting the 6181P-17TPXPH touchscreen terminal in an enclosure, make sure that the installation site has sufficient power, that there is enough air space around the enclosure for cooling and ventilation, and that the ambient air temperature does not exceed the 6181P-17TPXPH’s maximum rated operating temperature. Also, make sure that the humidity in the ambient atmosphere does not exceed the 6181P-17TPXPH’s limits, and that the atmosphere is not too dry, or static electricity may build up to dangerous levels.
