2706-B13C8

Description: DL20 series Message Display with 1 line, 20 character VFD and 110/120V AC input power and 8K RAM memory
Available Now
Request a quote for 2706-B13C8

Description:

DL20 series Message Display with 1 line, 20 character VFD and 110/120V AC input power and 8K RAM memory


About | Products Specs | FAQ

no auth
no auth mobile
disclaimer
credit cards
better business bureau

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the 2706-B13C8.
Exchange: Exchange credit for your defective unit available.

To Speak to a sales representative for pricing & lead time:

mobile

Phone
1-800-730-0292
phone

International
919-205-4392

Email
[email protected]

Rated 4.4 with 16 reviews

    Technical Specifications for 2706-B13C8

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2706-B13C8
Product LineDL20
Display Size14.4 x 14.4 inches
Display ColorVacuum Fluorescent Display (VFD)
Input TypeASCII
Communication RS-422 and RS-232
Input Power110 to 120 Volts AC
Memory8K RAM
Enclosure TypeNEMA Type 12/13
Line Count1
Character Count20
ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2706-B13C8
Product LineDL20
Display Size14.4 x 14.4 inches
Display ColorVacuum Fluorescent Display (VFD)
Input TypeASCII
Communication RS-422 and RS-232
Input Power110 to 120 Volts AC
Memory8K RAM
Enclosure TypeNEMA Type 12/13
Line Count1
Character Count20
s

About 2706-B13C8

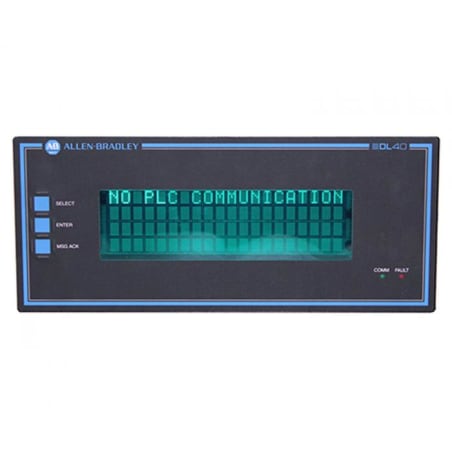

The Allen-Bradley 2706-B13C8 terminal is a Dataliner message display terminal which has a vacuum fluorescent display (VFD) screen with dimensions of 14.4 x 14.4 inches. It is available in a 1-line configuration with a parallel port, it can display up to 20 characters per line, it has 8 KB of RAM, and it runs on 110 to 120 Volts AC of input power. The 2706-B13C8 message display terminal is designed to receive slave addresses, message triggers, and variable data from an SLC or PLC module. For communication, it has an RS-422 port for file transfer and an RS-232 port for file upload and download. It can display a wide variety of symbols and characters that are readable at up to 30 feet away. The 2706-B13C8 terminal supports offline programming software to create and edit application files. Its panel or enclosure has a NEMA Type 12 or 13 rating.

The 2706-B13C8 message display terminal has capabilities such as dynamic message chaining and invisible messages. Parallel data lines allow the 2706-B13C8 terminal to accept 5 to 30 Volts DC and 120 Volts AC input signals. It performs self-testing and diagnostics during power-on and it has autorun features. Messages can be configured manually by attaching an external keyboard or extra terminal. It has a real-time clock that keeps the current date and time and it can create a backup and record the occurrence and sequence of messages. External devices such as printers, slave displays, and alarms can be connected. The 2706-B13C8 message display terminal is highly customizable and it can deliver alarms and messages in an industrial environment.

FAQ for 2706-B13C8

QuestionAnswer
1:

The Allen Bradley DataLiner Message Display offer the hardware and customization needed for effective factory-wide display. The DataLiner family features the DL5, DL10, DL20, DL30, DL40, DL40P, and DL50 marquee product lines. These products feature Vacuum Fluorescent, Red, or Tri-Color displays with from 1 to 5 lines of characters. There are parallel ports that provide both RS-232 and RS-485 communication. DataLiners allow for viewing of messages up to 240 feet away. These highly compatible and customizable message displays effectively deliver messages and alarms across the warehouse floors.

Repair Services for 2706-B13C8

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 2706-B13C8. All of our repairs come with a 1 Year Warranty. Please contact us for additional information about our repair process.

Revisions for 2706-B13C8

Please refer to the manual for more information about the 2706-B13C8 such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.

Revision Part # Also Known as Availability
2706-B13C8 Ser A
 2706-B13C8/A, Series A, Rev A Request Quote
2706-B13C8X
 2706-B13C8/X, Series X, Rev X Request Quote
Common misspellings:
