2706-B41J31

Description: DL20 series Message Display with 4 line, 20 character VFD and 120V AC input power and 31K RAM memory
In Stock Ships Today
Request a quote for 2706-B41J31

Description: DL20 series Message Display with 4 line, 20 character VFD and 120V AC input power and 31K RAM memory

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the 2706-B41J31.
Exchange: Exchange credit for your defective unit available.

To Speak to a sales representative for pricing & lead time:

phone

International
919-205-4392

Rated 4.8 with 19 reviews

    Technical Specifications for 2706-B41J31

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2706-B41J31
Product LineDL20
Display Size6.2 x 14.4 in.
Display ColorVacuum Fluorescent Display (VFD)
Input TypeASCII
Communication RS-422 and RS-232
Input Power120V AC
Memory31K RAM
Enclosure TypeNEMA Type 12/13
Line Count4
Character Count20
ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2706-B41J31
Product LineDL20
Display Size6.2 x 14.4 in.
Display ColorVacuum Fluorescent Display (VFD)
Input TypeASCII
Communication RS-422 and RS-232
Input Power120V AC
Memory31K RAM
Enclosure TypeNEMA Type 12/13
Line Count4
Character Count20

About 2706-B41J31

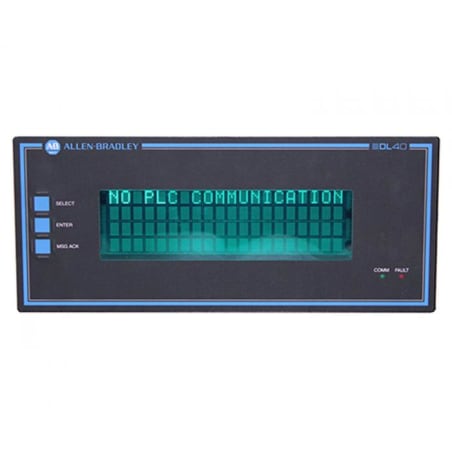

The 2706-B41J31 DataLiner is a message display terminal by Allen-Bradley. It is a new DL40 Plus terminal with customizable hardware and software and several enhancements that the old DL40 terminals lack. It also lacks certain older features that are out-of-date like the SB tape recorder backup feature.
The 2706-B41J31 message display terminal fits the same panel space as previous Allen-Bradley DL40 terminals, but its weight and dimensions have been reduced for a better fit and ease of transportation. It weighs only 4.9 lbs, its depth has been reduced from 4.53 to 3 inches, and its panel mounting studs are now 0.6 inches long instead of 0.5 inches.
The 2706-B41J31’s 6.2 x 14.4-inch screen is a Vacuum Fluorescent Display with an adjustable intensity from 0-100% and 4 lines of text. It can show up to 20 English, International, or Cyrillic characters per line and it can show them in red, amber, or green. The message is legible from up to 240 feet away, making the 2706-B41J31 ideal for emergency messages and alarms.
The 2706-B41J31’s hardware specifications include 128 KB of flash memory, a Y2K-compliant real-time clock with a replaceable battery, and isolated I/O ports. The ports are a parallel port, an IBM keyboard port, an RS-485 port, and an RS-232 port. The RS-232 port has an auto-wakeup feature that allows for offline programming. The 2706-B41J31 can also connect with PLCs and SLCs through Channel 0 ports. The 2706-B41J31 runs on AC power and is CE, UL, and CUL-certified.

FAQ for 2706-B41J31

The Allen Bradley DataLiner Message Display offer the hardware and customization needed for effective factory-wide display. The DataLiner family features the DL5, DL10, DL20, DL30, DL40, DL40P, and DL50 marquee product lines. These products feature Vacuum Fluorescent, Red, or Tri-Color displays with from 1 to 5 lines of characters. There are parallel ports that provide both RS-232 and RS-485 communication. DataLiners allow for viewing of messages up to 240 feet away. These highly compatible and customizable message displays effectively deliver messages and alarms across the warehouse floors.

Repair Services for 2706-B41J31

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 2706-B41J31. All of our repairs come with a 1 Year Warranty. Please contact us for additional information about our repair process.

Revisions for 2706-B41J31

Please refer to the manual for more information about the 2706-B41J31 such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.

Revision Part # Also Known as Availability
2706-B41J31/A, Series A, Rev A Request Quote
2706-B41J31/B, Series B, Rev B Request Quote
2706-B41J31/C, Series C, Rev C Request Quote
2706-B41J31/D, Series D, Rev D Request Quote
2706-B41J31/E, Series E, Rev E Request Quote
2706-B41J31/F, Series F, Rev F Request Quote
2706-B41J31X
2706-B41J31/X, Series X, Rev X Request Quote
