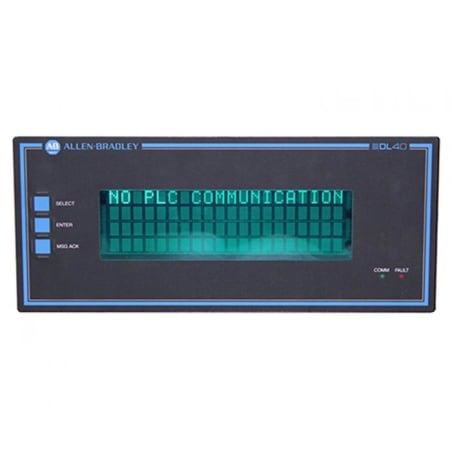

The 2706-C11J8A1 DL30 display terminal by Allen-Bradley is a single line display terminal with a 16-character display line and a variable data option. It has 16 upper and lowercase alphanumeric characters. It also has symbols and punctuation characters with a character length of 0.3 inches and a 5 x 7 dot-matrix Vacuum Fluorescent Display (VFD) with a maximum viewing distance of 4.6 meters (15 feet). The 2706-C11J8A1 uses an AC power supply with 120 Volts AC and an apparent power rating of 45VA along with a circuit protection via the MDL type fuse with circuit protection at 250 Volts AC and 1.2 Amps.
The 2706-C11J8A1 has an input voltage ranging between 5 and 120 Volts AC. Programming is easily and conveniently done using the 2706–NP1 or the 2706–NP2 offline programming software through a compatible computer connected through the RS-422 and RS-232 serial communication port. It uses the 8 KB EEPROM with a 387-message block capacity for story information over a variable amount of time. The 2706-C11J8A1 has two ports which cannot be used at once but are selected one at a time using the DIP configured switch. The serial port is used for connection to peripheral devices, and the parallel port has 16 input data lines with 2 strobe lines. It is NEMA 12, 13, and 4-rated and meets the IP65 enclosure rating requirement. It has a functional temperature limit of 50 degrees Celsius (122 degrees Fahrenheit) at up to 95% non-condensing relative humidity. It weighs approximately 1.70 kilograms (3.75 pounds) and has a dimension of 4.5 x 9.4 x 5 inches.
FAQ for 2706-C11J8A1
The Allen Bradley DataLiner Message Display offer the hardware and customization needed for effective factory-wide display. The DataLiner family features the DL5, DL10, DL20, DL30, DL40, DL40P, and DL50 marquee product lines. These products feature Vacuum Fluorescent, Red, or Tri-Color displays with from 1 to 5 lines of characters. There are parallel ports that provide both RS-232 and RS-485 communication. DataLiners allow for viewing of messages up to 240 feet away. These highly compatible and customizable message displays effectively deliver messages and alarms across the warehouse floors.
Repair Services for 2706-C11J8A1
||$1345||Add to Cart |
Our highly skilled technicians can repair your 2706-C11J8A1. All of our repairs come with a 1 Year Warranty. Please contact us for additional information about our repair process.
Revisions for 2706-C11J8A1
Please refer to the manual for more information about the 2706-C11J8A1 such as the wiring diagrams, data sheets,
firmware information and migration or obsolescence details.
