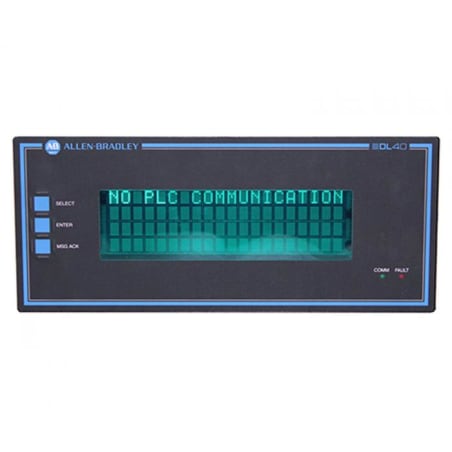

The 2706-C21J8 DL30 data liner display terminal by Allen-Bradley is a 2-line terminal display device with eighteen characters per display line but no variable data option. It has alphabet (upper and lower case), number, and symbol characters with 0.3-inch character lengths. It has a 5 x 7 dot-matrix and a Vacuum Fluorescent Display (VFD) which makes the characters visible from as much as 4.6 meters (15 feet) away. It has 120 Volts AC power and an 8VA rating. It uses an MDL type fuse with 250 Volts AC, and 1.2 Amps circuit protection rating. The 2706-C21J8’s input voltage ranges between 5 and 120 Volts AC, and it does not require any converter.
It can be programmed offline using either the 2706–NP1 or the 2706–NP2 offline programming software. The 2706-C21J8 stores information in the 2706-C21J8 using the 8KB Electronic Erasable Programmable Read-Only Memory (EEPROM) with a maximum message capacity of 353 blocks. It has two distinct ports that the user can select using a DIP configured switch. Its parallel port has 14 input data lines and two strobe lines. The 2706-C21J8 has a functional temperature limit between 0 and 50 degrees Celsius (32 and 122 degrees Fahrenheit) at 5 to 95% non-condensing relative humidity. Its enclosure is NEMA 12, 13, and 4 rated. Its weight is 2.16 kilograms (4.7 pounds) and its dimensions are 4.5 x 9.4 x 5 inches.
FAQ for 2706-C21J8
The Allen Bradley DataLiner Message Display offer the hardware and customization needed for effective factory-wide display. The DataLiner family features the DL5, DL10, DL20, DL30, DL40, DL40P, and DL50 marquee product lines. These products feature Vacuum Fluorescent, Red, or Tri-Color displays with from 1 to 5 lines of characters. There are parallel ports that provide both RS-232 and RS-485 communication. DataLiners allow for viewing of messages up to 240 feet away. These highly compatible and customizable message displays effectively deliver messages and alarms across the warehouse floors.
