2706-C21J8A1

Description: DL30 series Message Display with 2 line, 18 character VFD and 110/120V AC input power and 8K RAM memory
In Stock Ships Today
Request a quote for 2706-C21J8A1

Description: DL30 series Message Display with 2 line, 18 character VFD and 110/120V AC input power and 8K RAM memory

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the 2706-C21J8A1.
Exchange: Exchange credit for your defective unit available.

To Speak to a sales representative for pricing & lead time:

phone

International
919-205-4392
phone

International
919-205-4392

Rated 4.8 with 18 reviews


About 2706-C21J8A1

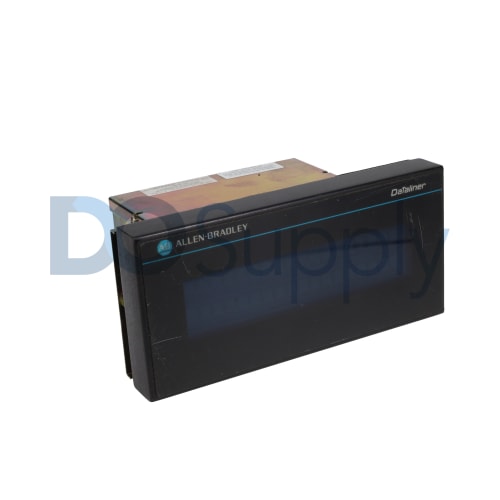

The 2706-C21J8A1 DL30 data liner by Allen-Bradley is a two-line display terminal with 18 characters per line and a variable data option. It has 18 alpha-numeric (upper and lower case), symbols, and punctuation characters which are 0.3in. in character size, and a 5 by 7 dot matrix character display in a Vacuum Fluorescent Display (VFD) with an approximate 4.6-meter (15-foot) viewing distance. It utilizes a 120 Volts AC power supply with 8VA of maximum power along its circuit at 60 Hertz and an MDL type fuse with 1.2 Amps and 250 Volts AC protection rating. The 2706-C21J8A1 has an input voltage between 5 and 120 Volts AC without the use of a specialized converter.


The 2706-C21J8A1 DL30, like every data liner display terminal, is programmed offline through the BA T50, 6120, and 6121 industrial computers linked through the RS-232 serial port, using the 2706–NP1, and 2706–NP2 offline programming software. It has an 8KB EEPROM memory with a 353-message block capacity. The 2706-C21J8A1 has 2 ports, the parallel port, and the serial port, which can easily be switched for use, via the DIP configured switch. The parallel port of the 2706-C21J8A1 has 14 input data lines and 2 strobe lines, for indicating a variable or number data. It has an operational temperature range of 0 to 50 degrees Celsius (32 to 122 degrees Fahrenheit) at 95% non-condensing relative humidity limit and it has a NEMA 12, 13, and 4 enclosure rating. The 2706-C21J8A1 weighs approximately 2.16 kilograms (4.75 pounds) and has dimensions of 4.5 x 9.4 x 5 inches.


Technical specifications:


ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2706-C21J8A1
Product LineDL30
Display Size1.5 x 6.75 in.
Display ColorVacuum Fluorescent Display (VFD)
Input TypeASCII
Communication RS-422 and RS-232
Input Power110-120V AC
Memory8K RAM
Enclosure TypeNEMA Type 12/13
Line Count2
Character Count18
ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2706-C21J8A1
Product LineDL30
Display Size1.5 x 6.75 in.
Display ColorVacuum Fluorescent Display (VFD)
Input TypeASCII
Communication RS-422 and RS-232
Input Power110-120V AC
Memory8K RAM
Enclosure TypeNEMA Type 12/13
Line Count2
Character Count18

FAQ

The Allen Bradley DataLiner Message Display offer the hardware and customization needed for effective factory-wide display. The DataLiner family features the DL5, DL10, DL20, DL30, DL40, DL40P, and DL50 marquee product lines. These products feature Vacuum Fluorescent, Red, or Tri-Color displays with from 1 to 5 lines of characters. There are parallel ports that provide both RS-232 and RS-485 communication. DataLiners allow for viewing of messages up to 240 feet away. These highly compatible and customizable message displays effectively deliver messages and alarms across the warehouse floors.

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 2706-C21J8A1. All of our repairs come with a 1 Year Warranty. Please contact us for additional information about our repair process.

Please refer to the manual for more information about the 2706-C21J8A1 such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.
