2706-E23C16B1

Description: DL40 series Message Display with 2 line, 20 character VFD and 85-264V AC input power and 16K RAM memory
Available Now
Request a quote for 2706-E23C16B1

Description: DL40 series Message Display with 2 line, 20 character VFD and 85-264V AC input power and 16K RAM memory

no auth
no auth mobile
disclaimer
credit cards
better business bureau
Revisions: -Manual -Price -Ser A -Ser B -Ser C -Ser D -Ser E -Ser F A B C D E F G H I J

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the 2706-E23C16B1.
Exchange: Exchange credit for your defective unit available.

To Speak to a sales representative for pricing & lead time:

phone

International
919-205-4392
phone

International
919-205-4392

Rated 4.4 with 11 reviews


About 2706-E23C16B1

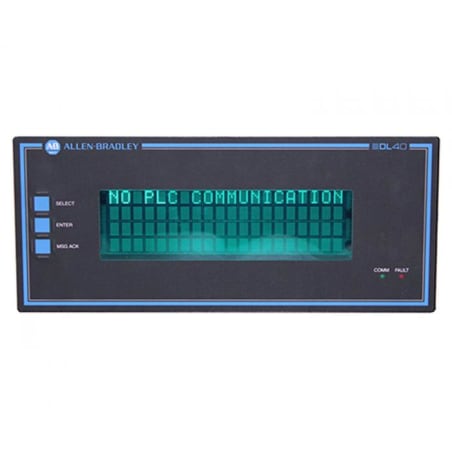

The Allen-Bradley 2706-E23C16B1 is a Dataliner message display in the DL40 series. Its vacuum fluorescent display screen comes with dimensions of 4.4 x 14.4 in. This screen comes in a two-line configuration that has remote I/O and the ability to display up to 20 characters per line. The 2706-E23C16B1 has 16 KB of RAM and 85 - 265V AC input power.
The 2706-E23C16B1 message display supports two-way communications with both PLC's and SLC's. It also has an RS-485 port for file transfer and an RS-232 port for uploading and downloading before. It displays a wide variety of symbols and characters that are still readable even at 25 feet away. The 2706-E23C16B1 supports offline programming software to create and edit application files. It can mount on a panel or in an enclosure with a NEMA Type 12,13 rating and be wired into the control system.
The 2706-E23C16B1 has capabilities like embedded variables, message chaining, and data mode selection and it facilitates uploading and downloading files via the DH+ and the Ethernet link. It has an onboard editor, extended ASCII character set support, and a battery-backed real-time clock. It can also create a backup and record the occurrence and sequence of the triggered messages. External devices like printers, slave displays, and alarms can be connected as required. The 2706-E23C16B1 display is highly customizable and able to deliver alarms and messages in a factory or industrial environment.


Technical specifications:


ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2706-E23C16B1
Product LineDL40
Display Size4.4 x 14.4 in.
Display ColorVacuum Fluorescent Display (VFD)
Input TypeASCII
Communication Remote I/O
Input Power85-264V AC
Memory16K RAM
Enclosure TypeNEMA Type 12, 13
Line Count2
Character Count20
ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2706-E23C16B1
Product LineDL40
Display Size4.4 x 14.4 in.
Display ColorVacuum Fluorescent Display (VFD)
Input TypeASCII
Communication Remote I/O
Input Power85-264V AC
Memory16K RAM
Enclosure TypeNEMA Type 12, 13
Line Count2
Character Count20

FAQ

The Allen Bradley DataLiner Message Display offer the hardware and customization needed for effective factory-wide display. The DataLiner family features the DL5, DL10, DL20, DL30, DL40, DL40P, and DL50 marquee product lines. These products feature Vacuum Fluorescent, Red, or Tri-Color displays with from 1 to 5 lines of characters. There are parallel ports that provide both RS-232 and RS-485 communication. DataLiners allow for viewing of messages up to 240 feet away. These highly compatible and customizable message displays effectively deliver messages and alarms across the warehouse floors.

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 2706-E23C16B1. All of our repairs come with a 1 Year Warranty. Please contact us for additional information about our repair process.

Please refer to the manual for more information about the 2706-E23C16B1 such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.
