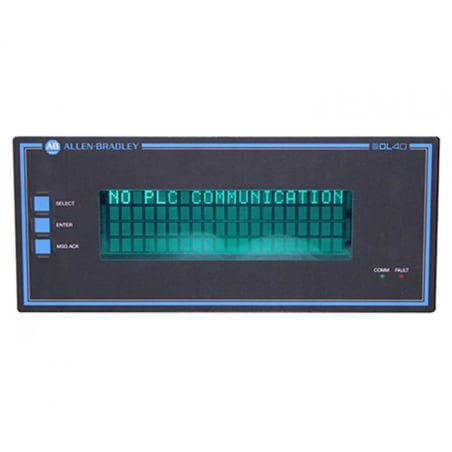

The Allen-Bradley 2706-E43C128B1 is a Dataliner DL40 Message Display that has a Vacuum Fluorescent Display (VFD) screen with dimensions of 6.2 x 14.4 inches. This screen is available with a 4-line display configuration and remote I/O, and it can display up to 20 characters on each line. The 2706-E43C128B1 has 128 KB of RAM and it runs on 85 - 265V AC input power.
The 2706-E43C128B1 Message Display is capable of 2-way communication with PLC's and SLC's. It also has an RS-485 port for file transfer and an RS-232 port for uploading and downloading files. It can display a wide variety of symbols and characters that are readable at up to 25 feet away. The 2706-E43C128B1 supports offline programming software for creating and editing application files. It can mount on a panel or in an enclosure with a NEMA Type 12 or 13 rating.
The 2706-E43C128B1’s features include embedded variables, message chaining, hidden messages, and data mode selection. It can also upload and download files on the DH+ and Ethernet links that run from a computer to another DL40 device. The 2706-E43C128B1 has an onboard editing program and support for the extended ASCII character set. This character set includes English, International, and Cyrillic letters. Its real-time clock tells the current date and time. The 2706-E43C128B1 can also create backups and record the occurrence and sequence of the triggered messages. External devices such as printers, slave displays, and alarms can connect to it with its different ports. The 2706-E43C128B1 is highly customizable and capable of effectively delivering alarms and messages in an industrial setting.
FAQ for 2706-E43C128B1
The Allen Bradley DataLiner Message Display offer the hardware and customization needed for effective factory-wide display. The DataLiner family features the DL5, DL10, DL20, DL30, DL40, DL40P, and DL50 marquee product lines. These products feature Vacuum Fluorescent, Red, or Tri-Color displays with from 1 to 5 lines of characters. There are parallel ports that provide both RS-232 and RS-485 communication. DataLiners allow for viewing of messages up to 240 feet away. These highly compatible and customizable message displays effectively deliver messages and alarms across the warehouse floors.
Repair Services for 2706-E43C128B1
||Ask|| Get Quote |
Our highly skilled technicians can repair your 2706-E43C128B1. All of our repairs come with a 1 Year Warranty. Please contact us for additional information about our repair process.
Revisions for 2706-E43C128B1
Please refer to the manual for more information about the 2706-E43C128B1 such as the wiring diagrams, data sheets,
firmware information and migration or obsolescence details.
