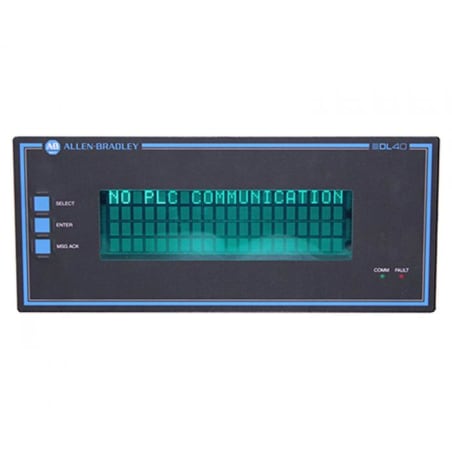

Product image is representative; revision or series may vary. Contact us to request a specific version.
2706-LV2P
The Allen-Bradley/Rockwell Automation 2706-LV2P terminal is an industrial message display terminal. It has been manufactured by Allen-Bradley as part of the Dataliner DL40 Plus series. The 2706-LV2P message display terminal can be used to replace several older message display terminals from the Allen-Bradley Dataliner DL40 series because it is an enhanced version of the older terminals that has several new features. Likewise, the 2706-LV2P message display terminal�s new hardware features include 128 KB of flash memory, an upgraded power supply, and reduced weight.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for 2706-LV2P
| Manufacturer | Allen Bradley |
|---|---|
| Category | Panelviews |
| Product Line | Dataliner |
| Part Number | 2706-LV2P |
| Weight | 4.94 lbs (2.24 kg) |
| Display Color | Vacuum Fluorescent Display (VFD) |
| Input Type | ASCII and Parallel Port |
| Communication | RS-232 and RS-485 |
| Input Power | 120 or 240V AC |
| Memory | 128K RAM |
| Enclosure Type | NEMA Type 12, 13 |
| Line Count | 2 |
| Character Count | 20 or 40 |
The Allen-Bradley 2706-LV2P is a PanelView DataLiner DL40 Plus message display module. It comes with a 2-line, 20-character vacuum fluorescent display (VFD) with a brightness that can be adjusted from 0 to 100% and has a height of 12.5 millimeters. It has an ASCII input type and comes with a 128 KB of RAM. A real-time, battery-backed clock that is fully compliant with the year 2000 is also present**.** The 2706-LV2P has an input power of 100 to 240 Volts AC at 50 to 60 Hertz with an integral fuse installed. The entire display measures 45 x 15 x 15 centimeters and weighs around 2 kilograms or 3.7 pounds.
The 2706-LV2P is a replacement for the following DL40 series parts: the 2706-E23J16, 2706-E23J32, 2706-E23C16, 2706-E23C32, 2706-B23J8, 2706-B23J16, 2706-B23J31, 2706-B23C8, 2706-B23C16, 2706-B23C31, 2706-B13J8, 2706-B13J16, 2706-B13J31, 2706-B13C8, 2706-B13C16, and the 2706-B13C31. If the users are using an older DL40 display than those listed here, they do not need to configure their applications to make it compatible with the 2706-LV2P because it has backward compatibility. Features of the 2706-LV2P include RS-232 message triggering, RS-232 auto-wakeup for offline programming, concurrent RS-232 and RS-485 communications, direct connection to PLC and SLC Channel 0 ports, data logging memory, 3 character sets (Cyrillic, English, and International), and power fail recovery.
| Revision Part # | Also known as | |
|---|---|---|
| 2706-LV2P Ser A | 2706-LV2P/A, Series A, Rev A | |
| 2706-LV2PX | 2706-LV2P/X, Series X, Rev X | |
| Don't see your particular revision? Contact us now. | ||
- 2706LV2P
- 27O6-LV2P
- 27O6LV2P
DL40P series Message Display with 2 line, 20 character VFD and 120 or 240V AC input power and 128K RAM memory
