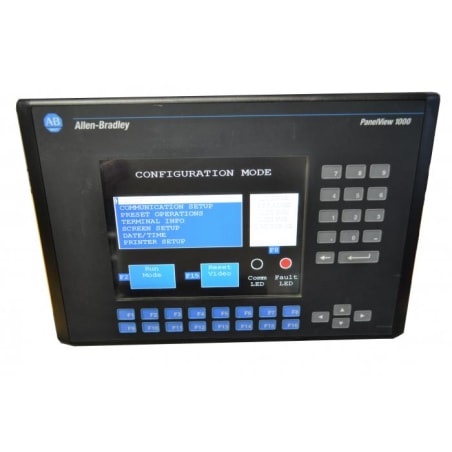

Allen Bradley Panelview 1000 2711-K10C14X

Product image is representative; revision or series may vary. Contact us to request a specific version.

2711-K10C14X

|
Need a Specific Revision?

The 2711-K10C14X is a human-machine interface (HMI) terminal from Allen Bradley's Panelview 1000 series. It features a 10.1-inch display with a VGA resolution of 640 × 480 pixels. This terminal operates on an AC supply voltage ranging from 85 to 264 volts and consumes approximately 39 watts maximum.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 2711-K10C14X

ManufacturerAllen Bradley
Product TypeHMI terminal
Product LinePanelview 1000
Part Number2711-K10C14X
Weight8.81 lbs (4.00 kg)
Display Size10.1 in
Resolution640 × 480 VGA
Display TechnologyTFT colour with CCFL backlight
Input MethodKeypad only
Application Memory~1 MB flash
AC Supply Range85–264 V AC
Power Consumption~39 W max
Operating Temperature0–55 °C
Storage Temperature−25–70 °C
Humidity5–95 %, non-condensing
Shock Resistance15 g operating
Vibration Resistance2 g, 10–2000 Hz
Altitude Limit≤2000 m
Enclosure RatingNEMA 12/13/4X, IP54/IP65
View as PDF
Request a Repair

The Allen Bradley 2711-K10C14X human-machine interface (HMI) terminal is designed to facilitate user interaction in automation systems. The product showcases a vivid 10.1-inch display utilizing TFT color technology. With a resolution of 640 × 480 VGA pixels, it ensures clarity for various applications. However, this terminal is designed to accept input solely through a keypad, enhancing control.

Operating with an alternating current supply, it requires a voltage input between 85 and 264 volts AC, while its power consumption peaks at roughly 39 watts. The environmental tolerances of the terminal are quite broad; it can work effectively at temperatures varying from 0 to 55 °C and can be stored between −25 and 70 °C. The terminal is also rated for humidity levels from 5% to 95% without condensation issues, ensuring continued operation in humid environments.

For reliability during operation, the 2711-K10C14X can withstand shocks of up to 15 g and vibrations of 2 g across a frequency band of 10 to 2000 Hz. This capability is essential for maintaining functionality in demanding industrial conditions. Additionally, it is intended for use at elevations not exceeding 2000 meters above sea level.

The enclosure is built to meet NEMA ratings of 12, 13, and 4X, along with IP54/IP65 certification for superior protection against dust and moisture. This combination of features makes the Allen Bradley 2711-K10C14X a resilient choice for demanding automation environments.
