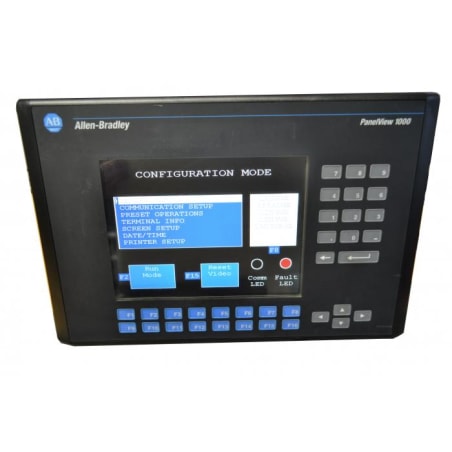

Allen Bradley Panelview 1000 2711-K10C3L1X

Product image is representative; revision or series may vary. Contact us to request a specific version.

2711-K10C3L1X

|
Need a Specific Revision?

The 2711-K10C3L1X is a keypad terminal within Allen Bradley's Panelview 1000 series. With a 10.1-inch color TFT display offering a resolution of 640 × 480, this terminal is designed for effective user interaction in industrial environments.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 2711-K10C3L1X

ManufacturerAllen Bradley
Product TypeKeypad Terminal
Product LinePanelview 1000
Part Number2711-K10C3L1X
Weight6.56 lbs (2.98 kg)
MountingPanel-mount
Size (H x W x D)282 × 423 × 112 mm
Humidity5–95% RH, non-condensing
Storage Temperature-25 to 70 °C
Operating Temperature0 to 55 °C
Display Size10.1 in
Resolution640 × 480 (VGA)
Display TypeColor TFT
InputKeypad
Memory256 KB
Power Supply24 VDC
Power Use~24 W
PortsDH-485, RS-232 printer
View as PDF
Request a Repair

The Allen Bradley 2711-K10C3L1X functions as a panel-mount keypad terminal, engineered specifically for industrial applications. It features a 10.1-inch color TFT display that achieves a VGA resolution of 640 × 480 pixels, providing clear visuals for operators. This device is designed for ease of use and interaction, relying on a keypad for input.

With a memory capacity of 256 KB, it allows for efficient data processing and management. The terminal operates effectively under a power supply of 24 VDC, consuming approximately 24 Watts during usage.

Weighing in at around 3.1 kg, its dimensions measure 282 mm high, 423 mm wide, and 112 mm deep, making it suitable for various panel installations. The device's environmental capabilities are noteworthy, as it operates within temperatures ranging from 0 °C to 55 °C, and it can be stored in temperatures from -25 °C up to 70 °C.

Condensation is avoided, due to its operating humidity tolerance of 5–95%. Connectivity options include ports for DH-485 and an RS-232 printer, ensuring wide compatibility with existing systems. This model captures a blend of functionality and reliability for any control system requiring robust operator interface solutions.
