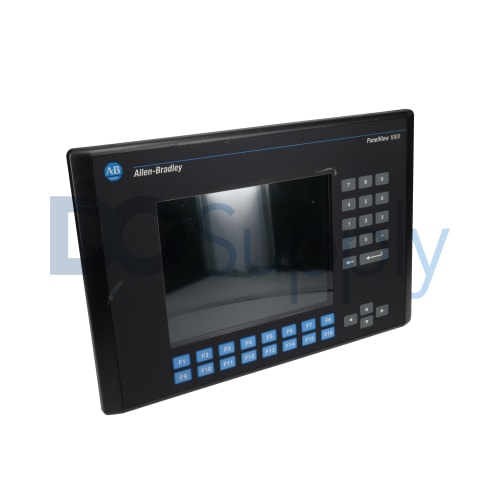

Product image is representative; revision or series may vary. Contact us to request a specific version.
The Allen Bradley 2711-K10C3X is available with a 2-Year DO Supply warranty.
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
Repairs and exchanges are available for all automation products.
Drop shipping, blind shipping, and account shipping with no extra fees.
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | PanelView 1000 Operator Interface |
| Product Line | Panelview 1000 |
| Part Number | 2711-K10C3X |
| Weight | 6.63 lbs (3.01 kg) |
| Accessories | function key legend inserts; Anti-glare overlays; backlight replacements; Real-time clock replacements; Mounting hardware; Power supply and terminal block; interface modules; |
| Input Voltage range | 85…264V AC, 47…63 Hz |
| Communication ports | DH485; RS232 (Printer) |
| ATA memory card | Supported |
| Application memory | 310KB application runtime; 1008 KB nonvolatile memory (application objects plus text and bitmaps) |
| Keypad function keys | 16 function keys (F1…F16) |
| Backlight | 50,000 hr 1/2 life at 25 °C (77 °F) |
| Resolution | 640 x 480 |
| Display Area | 211 x 158 mm (8.3 x 6.2 in.) |
| Display Type | Color active matrix TFT |
| Product Family | PanelView Standard |
| Display Size | 10.1 in. |
| Display Color | Multi-Color |
| Input Type | Keypad |
| Communication | DH-485 |
| Input Power | 85-264 Volts Alternating Current |
| Memory | 256 Kilobytes |
| Enclosure Type | NEMA Type 12/13 or 4X |
| UPC | 10662072718541 |
| Product Lifecycle Status* | Discontinued/Obsolete |
* The Allen Bradley 2711-K10C3X has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 2711-K10C3X units instead of migration.
| Size | 10 inch |
|---|---|
| Input Type | Keypad |
| Display Type | Black/White Monochrome |
| Display Size (Diagonal) | 10 in. |
| Viewing Area | 211 x 158 mm (8.3 x 6.2 in.) |
| Display Resolution | 640 x 480 |
