Allen Bradley Panelview 1000 2711-K10C8

2711-K10C8

|

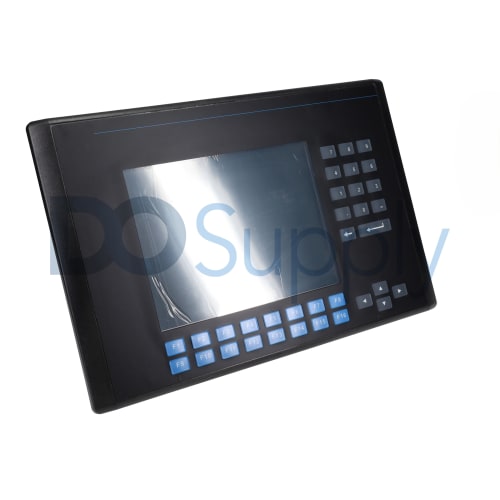

The Allen-Bradley 2711-K10C8 is a PanelView 1000 Standard Operator Terminal. This operator terminal is powered by an external 85-264VAC supply voltage and has a 10-inch display with embedded Data Highway Plus (DH+) communication interface and RS232 printer port. It has Sixteen (16) fully programmable function keys.

Ships Today.
In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with DO Supply's 2-year warranty.
Learn more
  • We sell industrial automation parts backed by our 2-year DO Supply Warranty.

  • Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.

  • AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.

  • Repairs and exchanges are available for all automation products.

  • Reseller Options

    Drop shipping, blind shipping, and account shipping with no extra fees.

Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for 2711-K10C8

Weight:3.7 kg (8.2 lb)
Accessories:function key legend inserts; Anti-glare overlays; backlight replacements; Real-time clock replacements; Mounting hardware; Power supply and terminal block; interface modules;
Input Voltage range:85…264V AC, 47…63 Hz
Communication ports:Data Highway Plus (DH+); RS232 (Printer)
ATA memory card:Supported
Application memory:310KB application runtime; 1008 KB nonvolatile memory (application objects plus text and bitmaps)
Keypad function keys:16 function keys (F1…F16)
Backlight:50,000 hr 1/2 life at 25 °C (77 °F)
Resolution:640 x 480
Display Area:211 x 158 mm (8.3 x 6.2 in.)
Display Type:Color active matrix TFT
Manufacturer:Rockwell Automation
Product Family:PanelView Standard
Product Type:PanelView 1000 Operator Terminal
BrandAllen-Bradley
Part Number/Catalog No.2711-K10C8
Product LinePanelview 1000
Display Size10.1 inches
Display ColorMulti-Color
Input TypeKeypad
CommunicationDH Plus (DH+) and Printer (RS-232) Port
Input Power85 to 264 Volts AC
RAM310 KB
Nonvolatile Memory1008 KB
Enclosure TypeNEMA Type 12/13 or 4x
UPC10662072718558
Product Lifecycle Status*Discontinued/Obsolete

* The Allen Bradley 2711-K10C8 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 2711-K10C8 units instead of migration.

Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

The PanelView Standard Operator terminal with catalog number 2711-K10C8 is a PanelView 1000. This PanelView 1000 product category features the largest screen size among the PanelView Standard family. It is capable of implementing real-time process monitoring and control and may also contribute to increased control efficiency as monitoring and control are performed from a common place.

Through the 10-inch colored screen with resolution of 640 x 480, the machine or process operator is able to view and observe the process. With the embedded keypad assembly that is composed of Sixteen (16) function keys from F1 to F16, numeric keys, navigation and confirmation keys, the operator is able to implement the necessary control actions and task to control the system.

Operator command and instrument status are sent and received via the embedded communication interface that supports Data Highway Plus (DH+) over a 1770-CD or Belden 9463 cable which is a 3-conductor cable, connected in daisy-chain topology. This communication protocol is one of the mature protocols that the PanelView Standard Operator terminals supports. The secondary communication port supports communication with an alarm and events printer with selectable communication rate of 1200, 2400, 9600, 19,200 Kbps.

The 2711-K10C8 supports communication with Allen-Bradley controllers such as PLC5, SLC500, MicroLogix, CompactLogix and ControlLogix controllers. It may also be interface with 3rd party devices or intelligent hardware such as protocol converters and gateways.

The Power supply requirement of the 2711-K10C8 is 85-264V AC along a frequency of 47-63 Hz. It has a power consumption of 45VA, maximum.

In addition, the 2711-T10C15 terminal also supports an ATA memory card, which stores data and applications. The 2711-T10C15 terminal offers 310 KB of RAM and 1008 KB of non-volatile memory. The electrical power supply of the device is 85 to 264 Volts AC at 47 to 63 Hertz and its maximum power consumption is 70 VA. Furthermore, the device is configured with communication ports. The DH+ port of the 2711-K10C8 terminal is used to communicate with an Allen-Bradley PLC-5 controller, a ControlLogix controller, and an SLC 5/04 controller. The data or applications on this terminal can be added to it from a personal computer through a DH+ link. From the DH+ screen panel, the users can visualize and transform the communication settings and statistics on the terminals. The DH+ link, also called a data Highway plus link, is a token-passing baseband connection for a local area network. Moreover, this Allen-Bradley machine weighs 3.7 kilograms or 8.2 Pounds and the dimensions are 11.11 x 16.64 x 4.40 inches.

Revision Part #Also known as
2711-K10C8 Ser A2711-K10C8/A, Series A, Rev A
Request a quote
2711-K10C8 Ser B2711-K10C8/B, Series B, Rev B
Request a quote
2711-K10C8 Ser C2711-K10C8/C, Series C, Rev C
Request a quote
2711-K10C8 Ser D2711-K10C8/D, Series D, Rev D
Request a quote
2711-K10C8 Ser E2711-K10C8/E, Series E, Rev E
Request a quote
2711-K10C8 Ser F2711-K10C8/F, Series F, Rev F
Request a quote
2711-K10C8X2711-K10C8/X, Series X, Rev X
Request a quote
Don't see your particular revision? Contact us now.
