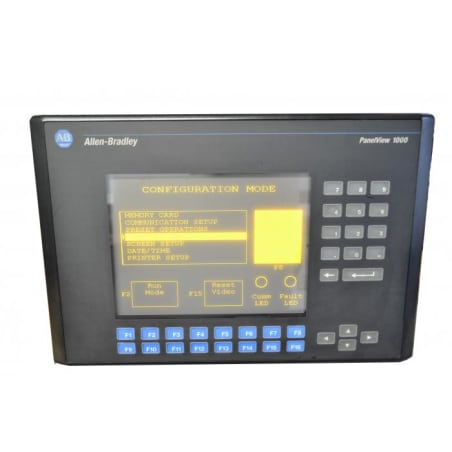

Allen Bradley Panelview 1000 2711-K10G1L1X

Product image is representative; revision or series may vary. Contact us to request a specific version.

2711-K10G1L1X

|
Need a Specific Revision?

The 2711-K10G1L1X operates as an operator terminal in the PanelView 1000 series by Allen Bradley. Featuring a 10.1-inch grayscale display and a resolution of 640 x 480 pixels, this unit is designed for effective interaction in industrial applications. It has a NEMA 12/13 and 4X rated enclosure for protection against contaminants and moisture.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 2711-K10G1L1X

ManufacturerAllen Bradley
Product TypeOperator terminal
Product LinePanelview 1000
Part Number2711-K10G1L1X
Weight8.00 lbs (3.63 kg)
EnclosureNEMA 12/13, 4X
Memory256 KB
Storage Temperature−20–85 °C
Operating Temperature0–55 °C
DisplayGrayscale
Resolution640×480
Screen Size10.1 in.
InputKeypad
KeysNumeric + function
CommunicationRemote I/O, RS-232
Power Requirement24 VDC
Maximum Power Consumption24 W
View as PDF
Request a Repair

The Allen Bradley 2711-K10G1L1X is categorized as an operator terminal and is part of the PanelView 1000 series. It boasts a 10.1-inch grayscale display, as well as a resolution of 640 by 480 pixels, catering to various monitoring and control tasks in industrial setups. Enclosed in a NEMA 12/13 and 4X rated casing, this terminal is built to withstand exposure to dust, water, and harsh environments.

It comes with 256 KB of onboard memory, allowing for efficient data handling, while its operating temperature range is maintained between 0 °C and 55 °C. For storage purposes, the device supports conditions from -20 °C to 85 °C. User input is facilitated through a keypad that consists of numeric and function keys, enhancing operational versatility.

The communication options include Remote I/O and RS-232, which enable integration within various systems. The 2711-K10G1L1X operates with a power input of 24 VDC, and it has a maximum power consumption of 24 watts, making it efficient for extended use. Weighing approximately 3.3 kg, it is manageable for installation and setup in diverse environments.
