2711-K10G3L1

Description: Keypad-DH-485 Communication and RS-232 Printer Port 10 in. Grayscale Display
Available Now
Request a quote for 2711-K10G3L1

Description: Keypad-DH-485 Communication and RS-232 Printer Port 10 in. Grayscale Display

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the 2711-K10G3L1 in 3-5 days.
Exchange: Exchange credit for your defective unit available.

To Speak to a sales representative for pricing & lead time:

phone

International
919-205-4392

Rated 4.8 with 7 reviews

    Technical Specifications for 2711-K10G3L1

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2711-K10G3L1
Product LinePanelview 1000
Display Size10.1 in.
Display ColorGrayscale
Input TypeKeypad
CommunicationDH-485
Input Power24 Volts Direct Current
Memory256 Kilobytes
Software2711-ND3 PanelBuilder 32
Enclosure TypeNEMA Type 12/13 or 4X
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 2711-K10G3L1 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 2711-K10G3L1 units instead of migration.

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2711-K10G3L1
Product LinePanelview 1000
Display Size10.1 in.
Display ColorGrayscale
Input TypeKeypad
CommunicationDH-485
Input Power24 Volts Direct Current
Memory256 Kilobytes
Software2711-ND3 PanelBuilder 32
Enclosure TypeNEMA Type 12/13 or 4X
Product Lifecycle Status*Discontinued/Obsolete

About 2711-K10G3L1

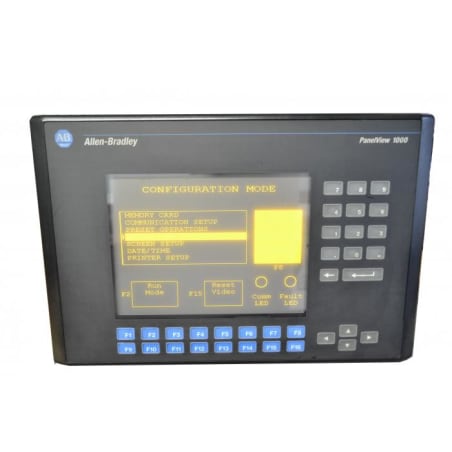

The 2711-K10G3L1 PanelView is an Allen-Bradley electronic device that permits users to interface with their machines. It provides operational functionality with a Greyscale display and pixel graphics. The 2711-K10G3L1 is a product in the DC-powered 2711-K10G series. The user can operate the 2711-K10G3L1 with its sixteen function keys. It has an 8.3 x 6.2-inch display dimension and its display resolution is 640 x 480. It has a replaceable backlight and battery, a runtime application memory of 310 KB, and it can support an ATA Memory card. It has a DH-485 Communication port and RS-232 Printer Port. Its DC input voltage of 18 to 32 Volts DC (24 Volts DC nominal), and a maximum power consumption of 24 Watts (1.0 amps at 24 Volts DC). The 2711-K10G3L1 Panelview 1000 weighs 7.2 pounds, and its dimensions are 11.11 x 16.64 x 4.40 inches The 2711-K10G3L1 Panelview 1000 has a storage temperature of -4 to 185 degrees Fahrenheit, and an operating temperature between 32 to 131 degrees Fahrenheit. The working relative humidity from between 5 to 95% noncondensing within the operating temperature range.

Repair Services for 2711-K10G3L1

Type Lead Time Price Action
Repair Service 3-5 days $965.24cartAdd to Cart

Our highly skilled technicians can repair your 2711-K10G3L1. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for 2711-K10G3L1

Please refer to the manual for more information about the 2711-K10G3L1 such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.

Revision Part # Also Known as Availability
2711-K10G3L1/A, Series A, Rev A Request Quote
2711-K10G3L1/B, Series B, Rev B Request Quote
2711-K10G3L1/C, Series C, Rev C Request Quote
2711-K10G3L1/D, Series D, Rev D Request Quote
2711-K10G3L1/E, Series E, Rev E Request Quote
2711-K10G3L1/F, Series F, Rev F Request Quote
2711-K10G3L1X
2711-K10G3L1/X, Series X, Rev X Request Quote
Firmware Revisions

The 2711-K10G3L1 has several firmware revisions: 2711-K10G3L1-FRN 3.01, 2711-K10G3L1-FRN 3.13, 2711-K10G3L1-FRN 3.14, 2711-K10G3L1-FRN 3.30, 2711-K10G3L1-FRN 3.40, 2711-K10G3L1-FRN 4.00, 2711-K10G3L1-FRN 4.10, 2711-K10G3L1-FRN 4.20, 2711-K10G3L1-FRN 4.41, 2711-K10G3L1-FRN 4.43, 2711-K10G3L1-FRN 4.46, and 2711-K10G3L1-FRN 4.48
