2711-K10G8L1

Description: Keypad-DH+ Communication and RS-232 Printer Port 10 in. Grayscale Display
Available Now
Request a quote for 2711-K10G8L1

Description: Keypad-DH+ Communication and RS-232 Printer Port 10 in. Grayscale Display

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the 2711-K10G8L1 in 3-5 days.
Exchange: Exchange credit for your defective unit available.

To Speak to a sales representative for pricing & lead time:

phone

International
919-205-4392

Rated 5 with 11 reviews

    Technical Specifications for 2711-K10G8L1

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2711-K10G8L1
Product LinePanelview 1000
Display Size10.1 in.
Display ColorGrayscale
Input TypeKeypad
CommunicationDH Plus (DH+) and Printer (RS-232) Port
Input Power24 Volts Direct Current
Memory256 Kilobytes
Software2711-ND3 PanelBuilder 32
Enclosure TypeNEMA Type 12/13 or 4X
UPC10662468985748
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 2711-K10G8L1 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 2711-K10G8L1 units instead of migration.

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2711-K10G8L1
Product LinePanelview 1000
Display Size10.1 in.
Display ColorGrayscale
Input TypeKeypad
CommunicationDH Plus (DH+) and Printer (RS-232) Port
Input Power24 Volts Direct Current
Memory256 Kilobytes
Software2711-ND3 PanelBuilder 32
Enclosure TypeNEMA Type 12/13 or 4X
UPC10662468985748
Product Lifecycle Status*Discontinued/Obsolete

About 2711-K10G8L1

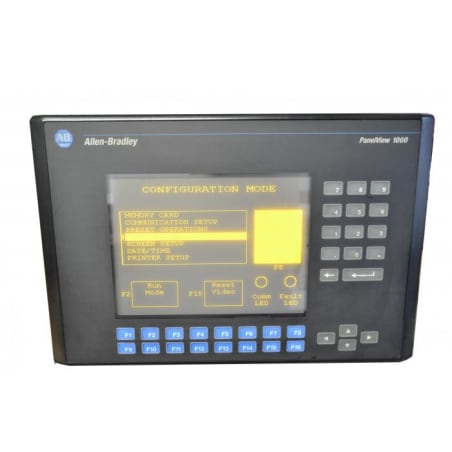

The 2711-K10G8L1 is part of the Allen-Bradley PanelView 1000 Terminals series. This module has a membrane keypad with an actuation of 1 million presses. Its dimensions are 282 x 423 x 167 millimeters (11.11 x 16.64 x 6.57 inches) and its gray-scale display area is 211 x 158 millimeters (8.3 x 6.2 inches). Moreover, DH Plus (DH+) and RS-232 ports are embedded in the terminal for easy communication and printing. The 2711-K10G8L1 has a non-volatile memory of 1008 KB and a RAM of 310 KB.

With a durable NEMA Type 12/13 or 4X enclosure, the 2711-K10G8L1 is well-suited for indoor use.  In addition, it runs on 24 Volts of DC power, enabling it to run even in a power outage by using batteries. It has smooth navigation due to 2711-ND3 PanelBuilder 32 software which can run on a personal computer. This software has several benefits including the ability to upload or download data. It can run on Windows 2000, Vista, XP, or ME. The 2711-K10G8L1’s software features push buttons, screen selector switches, data entry, information displays, alarm diagnostics, and graphics.

Repair Services for 2711-K10G8L1

Type Lead Time Price Action
Repair Service 3-5 days $1173.60cartAdd to Cart

Our highly skilled technicians can repair your 2711-K10G8L1. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for 2711-K10G8L1

Please refer to the manual for more information about the 2711-K10G8L1 such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.

Revision Part # Also Known as Availability
2711-K10G8L1/A, Series A, Rev A Request Quote
2711-K10G8L1/B, Series B, Rev B Request Quote
2711-K10G8L1/C, Series C, Rev C Request Quote
2711-K10G8L1/D, Series D, Rev D Request Quote
2711-K10G8L1/E, Series E, Rev E Request Quote
2711-K10G8L1/F, Series F, Rev F Request Quote
2711-K10G8L1X
2711-K10G8L1/X, Series X, Rev X Request Quote
Firmware Revisions

The 2711-K10G8L1 has several firmware revisions: 2711-K10G8L1-FRN 3.01, 2711-K10G8L1-FRN 3.13, 2711-K10G8L1-FRN 3.14, 2711-K10G8L1-FRN 3.30, 2711-K10G8L1-FRN 3.40, 2711-K10G8L1-FRN 4.00, 2711-K10G8L1-FRN 4.10, 2711-K10G8L1-FRN 4.20, 2711-K10G8L1-FRN 4.41, 2711-K10G8L1-FRN 4.43, 2711-K10G8L1-FRN 4.46, and 2711-K10G8L1-FRN 4.48
