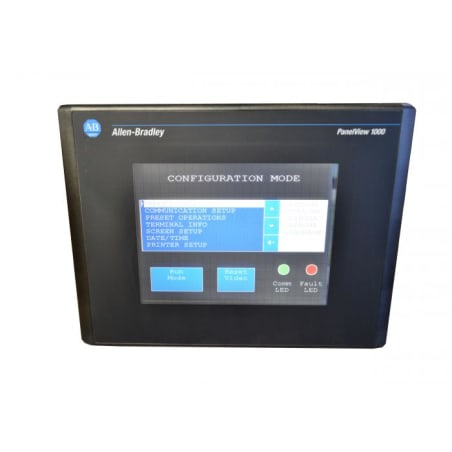

Allen Bradley Panelview 1000 2711-T10C14X

Product image is representative; revision or series may vary. Contact us to request a specific version.

2711-T10C14X

|
Need a Specific Revision?

The 2711-T10C14X, produced by Allen Bradley, is a high-performance human-machine interface (HMI) designed for effective operation in various industrial settings. It showcases a vibrant color TFT display with a generous 10.1-inch screen size, offering a resolution of 640 × 480 pixels for clear visuals.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 2711-T10C14X

ManufacturerAllen Bradley
Product TypeHMI
Product LinePanelview 1000
Part Number2711-T10C14X
Weight11.75 lbs (5.33 kg)
Memory256 KB
CommunicationModbus, RS-232
Power Input85–264 VAC, 47–63 Hz
Power Draw~55 VA max
Enclosure RatingNEMA 12/13, 4X
DisplayColor TFT
Backlight Life~40k–50k hrs
Input MethodTouchscreen
Screen Size10.1 in.
Resolution640 × 480 (VGA)
Operating Temperature0 to 55 °C
Humidity5–95% non-condensing
Mounting Size~282 × 370 mm cutout, 112 mm depth
View as PDF
Request a Repair

The Allen Bradley 2711-T10C14X serves as a robust HMI with a touch interface. This device features a 10.1-inch color TFT display that provides high-quality visuals, enhancing user interaction. The VGA resolution of 640 × 480 pixels contributes to detailed information presentation, essential for monitoring and controlling industrial processes. Constructed for durability, the unit is housed in an enclosure rated at NEMA 12/13 and 4X. This protects against contaminants and moisture, making it ideal for various industrial applications.

This HMI operates effectively with a supply voltage ranging from 85 to 264 VAC, at frequencies between 47 and 63 Hz. It draws about 55 VA of power at its maximum capacity. A significant advantage of this model is its backlight, which has an operational lifespan of approximately 40,000 to 50,000 hours. Operating in environments with a humidity level of 5% to 95% (non-condensing) ensures functionality in both dry and humid conditions.

Designed for user-friendly operation, the touchscreen input method simplifies navigation through its interfaces. It is relatively lightweight at around 3.6 kg, enabling easy installation and maintenance. The mounting requirements necessitate a cutout size of approximately 282 × 370 mm, with a depth of around 112 mm, allowing for straightforward integration into existing panels and systems.
