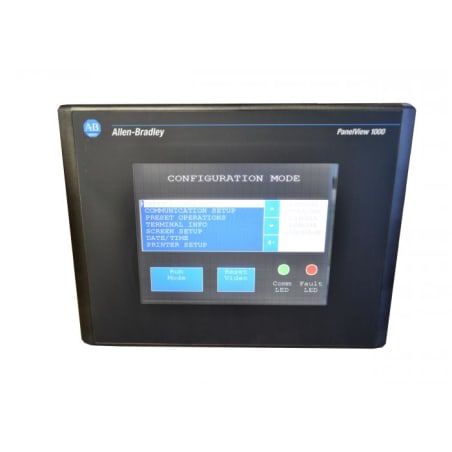

Description: The Allen-Bradley 2711-T10C9L1 is a PanelView 1000 Standard Operator Terminal. This operator terminal operates when supplied by an external supply voltage range of 18-32 Volts DC. It has a 10-inch colored display screen with a touchscreen input interface. It has a dual RS-232 communication port with one (1) used for DH-485 and the other port used for printer communication.
In Stock Ships Today
Request a quote for 2711-T10C9L1

Description: The Allen-Bradley 2711-T10C9L1 is a PanelView 1000 Standard Operator Terminal. This operator terminal operates when supplied by an external supply voltage range of 18-32 Volts DC. It has a 10-inch colored display screen with a touchscreen input interface. It has a dual RS-232 communication port with one (1) used for DH-485 and the other port used for printer communication.

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the 2711-T10C9L1 in 3-5 days.
Exchange: Exchange credit for your defective unit available.

To speak to a sales representative for pricing & lead time:


Rated 3.9 with 10 reviews

    Technical Specifications for 2711-T10C9L1

ManufacturerRockwell Automation
Part Number/Catalog No.2711-T10C9L1
BrandAllen-Bradley
Product Family:PanelView Standard Operator Terminals
Product Type:PanelView 1000 Standard Operator Terminals
Display Type:Color Active matrix
Display Area:211 x 158 mm (8.3 x 6.2 in.)
Resolution:640 x 480
Backlight:50,000 hr LED backlight life half-life
Touchscreen1 Million actuations
Application memory:310KB application runtime; 1008 KB nonvolatile memory
Communication ports:RS232 (DH485); RS232 (printer)
Input Voltage range:18-32VDC
Input Frequency:47…63 Hz
Enclosure:NEMA Type 12/13, 4X (Indoor use only), IP54, IP65
Status Indicators:COMM: Green Fault: Red
Configuration Software:PanelBuilder32
Product LinePanelview 1000
Display Size10.1 in.
Display ColorMulti-Color
Input TypeTouchscreen
CommunicationRS-232 (DH-485) and Printer (RS-232) Port
Input Power24 Volts Direct Current
Memory256 Kilobytes
Software2711-ND3 PanelBuilder 32
Enclosure TypeNEMA Type 12/13 or 4X
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 2711-T10C9L1 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 2711-T10C9L1 units instead of migration.

ManufacturerRockwell Automation
Part Number/Catalog No.2711-T10C9L1
BrandAllen-Bradley
Product Family:PanelView Standard Operator Terminals
Product Type:PanelView 1000 Standard Operator Terminals
Display Type:Color Active matrix
Display Area:211 x 158 mm (8.3 x 6.2 in.)
Resolution:640 x 480
Backlight:50,000 hr LED backlight life half-life
Touchscreen1 Million actuations
Application memory:310KB application runtime; 1008 KB nonvolatile memory
Communication ports:RS232 (DH485); RS232 (printer)
Input Voltage range:18-32VDC
Input Frequency:47…63 Hz
Enclosure:NEMA Type 12/13, 4X (Indoor use only), IP54, IP65
Status Indicators:COMM: Green Fault: Red
Configuration Software:PanelBuilder32
Product LinePanelview 1000
Display Size10.1 in.
Display ColorMulti-Color
Input TypeTouchscreen
CommunicationRS-232 (DH-485) and Printer (RS-232) Port
Input Power24 Volts Direct Current
Memory256 Kilobytes
Software2711-ND3 PanelBuilder 32
Enclosure TypeNEMA Type 12/13 or 4X
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 2711-T10C9L1 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 2711-T10C9L1 units instead of migration.

s

About 2711-T10C9L1

The 2711-T10C9L1 module is a Panelview 1000 terminal of Allen Bradley’s Panelview series. This DC-powered module has a touchscreen input type, allowing user’s to input information to the module through its touchscreen. It comes with an RS-232 communication port, along with a clock that will time stamp important data in real time. This clock is backed by batteries which can be replaced in the field. Another feature of the 2711-T10C9L1 is its field-replaceable backlight. This backlight has an average half-life of 50,000 hours at 25 degrees Celsius. Overall, the module should not be placed in an environmental temperature lower than freezing point (0 degrees Celsius) or higher than 55 degrees Celsius while in operation. In storage, the 2711-T10C9L1 can withstand temperatures as low as -25 degrees Celsius and as high as 70 degrees Celsius, but should not exceed either of those extremes. The highest altitude that this module should be placed at is 2000 meters, although ideally it should be placed much lower than that, in an enclosure rated as NEMA Type 12, 13, IEC IP54, or IP65, or NEMA Type 4X for indoor operations only. The 2711-T10C9L1 runs on the PanelBuilder32 software (also applicable on a personal computer). Its memory consists of 310 kilobytes of application runtime memory in addition to 1008 kilobytes of nonvolatile memory (which consists of text, bitmaps, and application objects). The 2711-T10C9L1 Panelview has a slot for an ATA flash memory card. With a size of approximately 282 x 370 x 112 millimeters, the 2711-T10C9L1 weighs roughly 3.2 kilograms.

The Allen-Bradley 2711-T10C9L1 is a PanelView standard Operator Terminal. It is part of the PanelView Plus 1000 sub-category. This electronic component is typically referred to as a Human Machine Interface (HMI) which is used in a wide variety of industrial applications, enabling real-time interaction between operators and the machine or processes being controlled. This operator terminal helps improve operating efficiency and accuracy as well as contributes to safety of personnel involved in the operating of the system.

The 2711-T10C9L1 comes with a Color-Active Thin Film Transistor (TFT) screen with a diagonal size of 10.0 inches and a viewing area of 211 x 158 millimeters (8.3 x 6.2 inches); it also has a resolution of 640 x 480 pixels. To view the graphics published to the operator terminal, the device is equipped with a field replaceable backlight with an expected lifespan with a 50,000 hour half-life when operated at 25 degrees Celsius or 77 degrees Fahrenheit.

Operators are able to modify process data and input control commands to the system via the touchscreen interface. The touch cells of the 2711-T10C9L1 are composed of 384 touch cells with an actuation lifespan of 1 million presses. For communicating with control systems such as Programmable Logic Controllers (PLCs) or Programmable Automation Controllers (PACs), the 2711-T10C9L1 has a dual RS-232 communication interface, with one (1) RS-232 port compatible for DH-485 protocol and the other RS-232 port dedicated for printer communication.

The 2711-T10C9L1 is provided with a built-in 1008 KB of non-volatile memory and 310 KB of Random Access Memory (RAM), which is mainly used during the runtime environment of the operator terminal.

FAQ for 2711-T10C9L1

Does the 2711-T10G10 have a touchscreen input or a keypad input?


The 2711-T10G10 has a touchscreen input only.

What kind of enclosures should the 2711-T10G10 Panelview be used with?


The 2711-T10G10 is rated for five different enclosures, which are the IEC IP54/IP65 enclosures and the NEMA Types 12, 13, and 4X (for specifically indoor operations) enclosures.

What kind of software does the 2711-T10G10 Panelview use?


The 2711-T10G10 runs PanelBuilder32 software, a common software that can also be used on a personal computer.

What kind of memory does the 2711-T10G10 module have?


The 2711-T10G10 is equipped with an application runtime memory of 310 KB and a nonvolatile memory of 1008 KB, in addition to its support of an ATA flash memory card.

Does the 2711-T10G10 have any communication ports?


Yes, the 2711-T10G10 has an RS-232 (DH-485) communication port.

What type of warranty is available for the 2711-T10G10 Panelview?


A 12 month DO Supply warranty is available for the 2711-T10G10 Panelview.

Does DO Supply offer any repair services?


Yes, DO Supply offers several different repair services. For more information, please contact us.

Does the 2711-T10C9L1 support vertical orientation?


No. Only horizontal orientation is allowed as this operator terminal does not support screen rotation.

What is the programming software used to configure the 2711-T10C9L1?


The 2711-T10C9L1 is configured using the PanelBuilder32 programming software.

What is the display resolution of the 2711-T10C9L1?


The 2711-T10C9L1 has a display resolution of 640 x 480 pixels.

Technical Description of 2711-T10C9L1

Touchscreen-RS-232 (DH-485) Communication and RS-232 Printer Port 10 in. Color Display

Repair Services for 2711-T10C9L1

Type Lead Time Price Action
Repair Service 2-4 weeks $1254.37cartAdd to Cart

Our highly skilled technicians can repair your 2711-T10C9L1. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for 2711-T10C9L1

Please refer to the manual for more information about the 2711-T10C9L1 such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.

Revision Part # Also Known as Availability
2711-T10C9L1/A, Series A, Rev A Request Quote
2711-T10C9L1/B, Series B, Rev B Request Quote
2711-T10C9L1/C, Series C, Rev C Request Quote
2711-T10C9L1/D, Series D, Rev D Request Quote
2711-T10C9L1/E, Series E, Rev E Request Quote
2711-T10C9L1/F, Series F, Rev F Request Quote
2711-T10C9L1X
2711-T10C9L1/X, Series X, Rev X Request Quote
Firmware Revisions

The 2711-T10C9L1 has several firmware revisions: 2711-T10C9L1-FRN 3.01, 2711-T10C9L1-FRN 3.13, 2711-T10C9L1-FRN 3.14, 2711-T10C9L1-FRN 3.30, 2711-T10C9L1-FRN 3.40, 2711-T10C9L1-FRN 4.00, 2711-T10C9L1-FRN 4.10, 2711-T10C9L1-FRN 4.20, 2711-T10C9L1-FRN 4.41, 2711-T10C9L1-FRN 4.43, 2711-T10C9L1-FRN 4.46, and 2711-T10C9L1-FRN 4.48

Common misspellings:
  • 27l1-T10C9L1
  • 271l-T10C9L1
  • 2711-Tl0C9L1
  • 2711-T1oC9L1
  • 2711-T10C911
  • 2711-T10C9Ll
  • 2711T10C9L1

Reviews for 2711-T10C9L1

Internal Review

"The Allen-Bradley 2711-T10C9L1 is an Allen-Bradley PanelView Standard operator terminal. This operator terminal primarily features a colored display screen which enables the device to provide a more detailed process visualization as it can be configured to implement animations that convey information using color codes. " -DO Supply Tech
