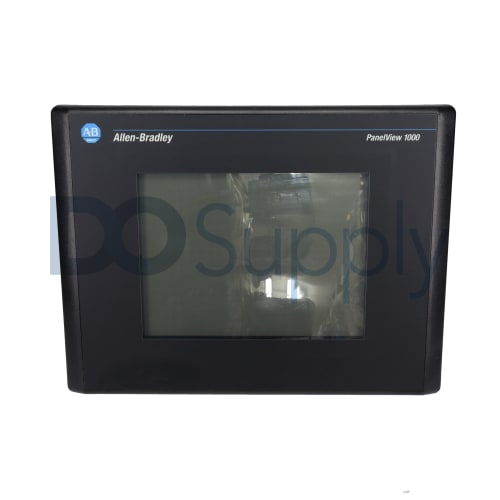

The 2711-T10G3L1 terminal is a standard terminal that belongs to the PanelView 1000 terminal series by Allen-Bradley/Rockwell Automation. This terminal is most commonly used in order to modify and supervise the status of different processes from one specific location without the need for transportation to different process locations. It is an important part of each application process that is being automated since it enables the users to control every detail and modify any variable in real-time while staying and working in just one place. The Allen-Bradley/Rockwell Automation 2711-T10G3L1 standard terminal comes with a 10-inch touchscreen with a grayscale display. Because this is a touchscreen terminal, it is recommended to use this terminal with its DC voltage source in the range of 18 to 32 Volts DC. With this type of voltage, the terminal generates a power consumption of at least 1 Amp at a specific voltage rating of 25 Volts DC. The Allen-Bradley/Rockwell Automation 2711-T10G3L1 standard terminal provides a DH-485 port. This port enables the terminal to be connected to different equipment that detects and send signals from each piece of equipment or part of the process. This terminal’s touchscreen dimensions consists of a width of 23 millimeters, a height of 282 millimeters, and a depth of 90 millimeters. It is important to recall that the Allen-Bradley/Rockwell Automation 2711-T10G3L1 standard terminal cannot be exposed to temperatures higher than 50 degrees Celsius and it is recommended to use the touchscreen very carefully with a special stylus to avoid any kind of scratching and other kinds of damage.

The Allen-Bradley 2711-T10G3L1 is a Human Machine Interface (HMI) device that is part of the PanelView standard operator terminal. It is part of the early HMI products of Allen-Bradley which is mainly used to implement real-time process visualization and control. This operator terminal interacts with industrial controllers and provides a control interface that is custom designed to represent the monitoring and control points of the process. Aside from the Human Machine Interface (HMI) terminology, the 2711P-T10G3L1 is also called a Man Machine Interface (MMI).

The 2711-T10G3L1 has a 10.4-inch grayscale display with viewing area of 211 x 158 millimeters (8.3 x 6.2 inches) and resolution of 640 x 480 pixels. It has a field replaceable backlight of 50,000 hour half-life when operated at 25 degrees Celsius or 77 degrees Fahrenheit. It has a total of 384 touch cells that is distributed along the display screen to enable the touchscreen input capability of this operator terminal. The touchscreen interface has a designed actuation life of 1 million presses.

The 2711-T10G3L1 has a Real-Time Clock (RTC) with battery back-up. The battery is field replaceable. Additionally, the 2711-T10G3L1 has a 310 KB application runtime and 1008 KB non-volatile memory for use by the application objects including text and bitmaps. This operator terminal supports installation of ATA memory card with memory options of 2MB - 32 MB Flash memory.

This operator terminal is downloaded with an application that is developed using the PanelBuilder32 programming and configuration software. This software is installed separately to a personal computer to allow offline configuration even without the actual hardware.

Does the 2711-T10G3L1 support vertical orientation?

No. It only supports horizontal orientation as it does not support screen rotation and due to its bulky hardware.

What is the programming software used to configure the 2711-T10G3L1?

The 2711-T10G3L1 is configured and programmed using the PanelBuilder32 programming software.

What is the power supply input of the 2711-T10G3L1?

The 2711-T10G3L1 is powered by an external 18-30VDC.
