2711-KC1
The Allen-Bradley 2711-KC1 is a Panelview 1200 Operator Terminal. This operator terminal is powered by an external 85-264V AC supply voltage and has a 9-inch Colored CRT display with embedded Remote I/O (RIO) communication and RS232 printer interface port. It has Sixteen (16) Function keys and a Keypad operator interface.
-
We sell industrial automation parts backed by our 2-year DO Supply Warranty.
-
Same-day domestic and expedited international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, and more, plus flexible payment plans.
-
Repair and exchange services for all existing automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for 2711-KC1
| Display Size | 12" Diagonal |
|---|---|
| Brand | Allen-Bradley |
| Manufacturer: | Rockwell Automation |
| Product Family: | PanelView Operator Terminals |
| Product Type: | PanelView 1200 Operator Terminals |
| Display Type: | Color CRT |
| Display Format: | 24 Rows x 80 Columns (normal size characters) |
| Lifecycle status: | Discontinued |
| Keypad: | 2 million presses |
| Keypad function keys: | 16 function keys (F1…F16) |
| Integrated ports: | Remote I/O (RIO); RS232 (printer) |
| Input Voltage range: | 90-132, 180-264 VAC automatic setting by the PanelView 1200 terminal to match available power supply |
| Input Frequency: | 47…63 Hz |
| Enclosure: | NEMA 4X (Indoor Use Only), NEMA 12, and NEMA 13 |
| Part Number/Catalog No. | 2711-KC1 |
| Product Line | Panelview 1200 |
| Display Color | Color |
| Communication | Remote I/O |
| Input Power | 90-130 Volts Alternating Current |
| Memory | RAM |
| Input Type | Keypad |
| Enclosure Type | NEMA 4X |
| Product Lifecycle Status* | Discontinued/Obsolete |
* The Allen Bradley 2711-KC1 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 2711-KC1 units instead of migration.
The Allen-Bradley product with catalog number 2711-KC1 is part of the PanelView 1200 Operator Terminals. This operator terminal and the entire PanelView 1200 are obsolete products as this series belongs to the early visualization component products of Allen-Bradley.
The 2711-KC1 has a CRT display, with display format of 24 Rows x 80 Columns (normal size characters) and Character Cell Pixel Format of 8 wide x 10 high. The graphic display is User-configurable and stored in a non-volatile memory. The display intensity of the monitor is adjustable from low to high range adjustment. This adjustment tool is installed at the back of the unit. The screen has an adjustable screen saver from 1-999 minutes. Appropriate configuration of the screen saver contributes to maximized operation lifespan of the display. The CRT display size is 12 inches.
It comes with Sixteen (16) function keys, numeric and navigation buttons located at the device front panel. These buttons serve as the operator interface enabling control of the process and switching of process mimic. The operator terminal keys are designed to operate up to 2 Million actuations.
Install the 2711-KC1 to an enclosure with protection ratings of NEMA 4X (Indoor Use Only), NEMA 12, and NEMA 13. This HMI terminal complies with the UL listed, Industrial Control Equipment (UL 508) and CSA certified, standard 22.2 No. 142.
The 2711-KC1 has an embedded Remote I/O (RIO) communication port and a secondary RS232 interface used for printer communication. The supported RIO speeds are 57.6/115.2/230.4 kilobaud with maximum cable distances of 10,000 ft. for 57.6 kilobaud, 5,000 ft. for 115.2 kilobaud and 2,500 ft. for 230.4 kilobaud.
This HMI terminal is widely used for many industrial applications due to its easy, fast, and reliable functioning.
The 2711-KC1 has a keypad on the touchscreen which makes inputting data easy. The baud rate for remote I/O is 57.6/115.2/230.4 Kbaud whereas the RS-232 port has a baud rate of 300-19.2 Kbaud. The 2711-KC1 has a power consumption of 80W and an input voltage of 90-264V AC at 47-63 Hz. The user memory is 64 KB battery-backed RAM that can be upgraded to 128 KB.
| Revision Part # | Also known as | |
|---|---|---|
| 2711-KC1 Ser A | 2711-KC1/A, Series A, Rev A | Request a quote |
| 2711-KC1 Ser B | 2711-KC1/B, Series B, Rev B | Request a quote |
| 2711-KC1 Ser C | 2711-KC1/C, Series C, Rev C | Request a quote |
| 2711-KC1 Ser D | 2711-KC1/D, Series D, Rev D | Request a quote |
| 2711-KC1 Ser E | 2711-KC1/E, Series E, Rev E | Request a quote |
| 2711-KC1 Ser F | 2711-KC1/F, Series F, Rev F | Request a quote |
| 2711-KC1X | 2711-KC1/X, Series X, Rev X | Request a quote |
| Don't see your particular revision? Contact us now. | ||
- 2711-KCL
- 2711KC1
- 2711KCL
- 271L-KC1
- 271LKC1
- 27L1-KC1
- 27L1KC1
- 27LL-KCL
- 27LLKCL
What is the monitor size of the 2711-KC1?
The 2711-KC1 has a 12-inch CRT display screen.
What is the operation lifespan of the 2711-KC1’s front panel keys?
The 2711-KC1 front panel keys are rated for 2 Million actuations.
What are the communication interfaces available with the 2711-KC1?
The 2711-KC1 has a remote I/O (RIO) communication port and RS232 Printer interface.

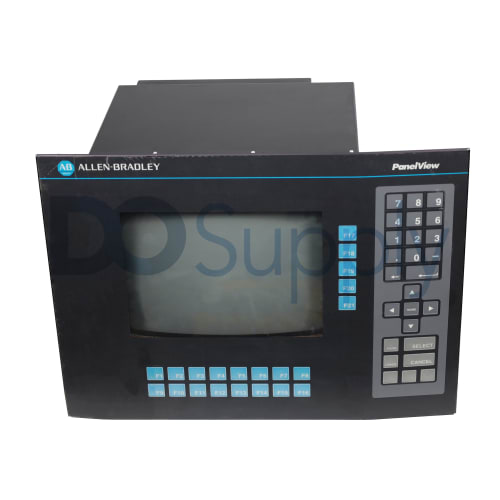

Panelview 1200 Keypad Terminal with a Color Display
The 2711-KC1 is a PanelView 1200 Operator Terminals. This Human Machine Interface (HMI) series has a CRT display and installed using mounting clips or stud mounts. This HMI is an early visualization product and has a rugged large body. Compared to modern HMI designs with slim and compact form, the 2711-KC1’s bulky assembly will require an enclosure that can handle the device weight as well as the depth. This may require a larger enclosure.
