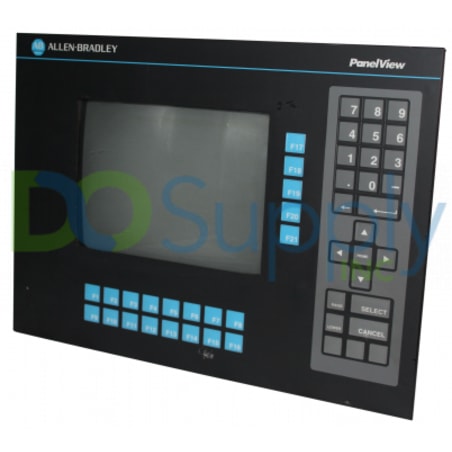

Allen Bradley Panelview 1200 2711-KC1X

Product image is representative; revision or series may vary. Contact us to request a specific version.

2711-KC1X

|
Need a Specific Revision?

The 2711-KC1X from Allen Bradley is part of the PanelView 1200 series, featuring a 12-inch color CRT display. It is designed for direct operator interaction through a keypad, which boasts a durability of up to 2 million presses and includes 16 function keys for various commands.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 2711-KC1X

ManufacturerAllen Bradley
Product TypePanelView 1200 Operator Terminals
Product LinePanelview 1200
Part Number2711-KC1X
Weight20.00 lbs (9.07 kg)
Display Size12" Diagonal
Display TypeColor CRT
Display Format24 Rows x 80 Columns (normal size characters)
Keypad2 million presses
Keypad Function Keys16 function keys (F1…F16)
Integrated PortsRemote I/O (RIO); RS232 (printer)
Input Voltage Range90-132, 180-264 VAC, automatically adjusts by the PanelView 1200 terminal to align with the available power supply
Input Frequency47…63 Hz
EnclosureNEMA 4X (Indoor Use Only), NEMA 12, and NEMA 13
Display ColorColor
CommunicationRemote I/O
Input Power90-130 Volts AC
MemoryRAM
Input TypeKeypad
Enclosure TypeNEMA 4X
View as PDF
Request a Repair

The Allen Bradley 2711-KC1X, categorized under the PanelView 1200 series, features a diagonal display measuring 12 inches in size. The device employs a color CRT screen capable of displaying 24 rows and 80 columns, facilitating effective user interaction. The keypad, designed for high durability, withstands up to 2 million presses and includes 16 function keys for versatile operations. Integrated communication options consist of Remote I/O (RIO) and RS232 for printers, enhancing flexibility in connectivity.

This terminal automatically adjusts to both 90-132 and 180-264 VAC input voltage ranges, ensuring compatibility with different power supply situations. The input frequency is rated between 47 to 63 Hz. Enclosed in a rugged housing compliant with NEMA 4X, NEMA 12, and NEMA 13 standards, this unit is suitable for indoor applications and protects against dust and moisture.

Memory capabilities utilize RAM, supporting efficient operation for various tasks. The 2711-KC1X is specifically designed as an operator terminal ideal for industrial settings, making it a crucial component for real-time monitoring and control.
