2711-T14C3

Available Now
Request a Quote for 2711-T14C3

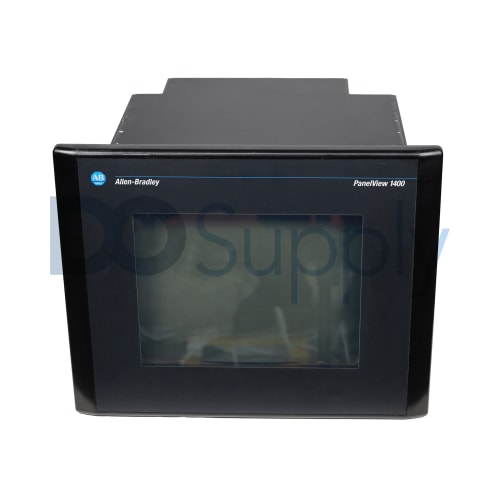

The Allen-Bradley/Rockwell Automation 2711-T14C3 terminal is an interface terminal from the Panelview 1400 series. It has a touchscreen for control that is 14 inches wide and that supports full color graphics. The 2711-T14C3 interface terminal has an RS-232 printer port and a DH-485 communication port. Its maximum operating shock rating is 15 g and its maximum non-operating shock rating is 30 g. The 2711-T14C3 interface terminal can operate at a temperature of 32 to 131 degrees Fahrenheit, it can be stored at a temperature of -40 to 185 degrees Fahrenheit, and it can operate and be stored at 5 to 95% non-condensing relative humidity levels.
Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via UPS, DHL, and TNT
Repairs: We offer repair service for the 2711-T14C3.
Exchange: Exchange credit for your defective unit available.
Conditions: We sell preowned surplus and refurbished parts.

To speak to a sales representative for pricing & lead time:

Rated 4.9 with 6 reviews

DO Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with DO Supply's 1-year warranty.

Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.


credit cards accepted
better business bureau

2711-T14C3

Description: The Allen-Bradley/Rockwell Automation 2711-T14C3 terminal is an interface terminal from the Panelview 1400 series. It has a touchscreen for control that is 14 inches wide and that supports full color graphics. The 2711-T14C3 interface terminal has an RS-232 printer port and a DH-485 communication port. Its maximum operating shock rating is 15 g and its maximum non-operating shock rating is 30 g. The 2711-T14C3 interface terminal can operate at a temperature of 32 to 131 degrees Fahrenheit, it can be stored at a temperature of -40 to 185 degrees Fahrenheit, and it can operate and be stored at 5 to 95% non-condensing relative humidity levels.

DO Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with DO Supply's 1-year warranty.

Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

disclaimer
credit cards
better business bureau

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via UPS, DHL, and TNT
Repairs: We offer repair service for the 2711-T14C3.
Exchange: Exchange credit for your defective unit available.

To speak to a sales representative for pricing & lead time:


Rated 4.9 with 6 reviews

Technical Specifications for 2711-T14C3

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2711-T14C3
Power TypeAC
Supply Voltage Limit85-264 Volts; 43-63 Hertz
Power Consumption200 VA max
Comm PortDH-485
Total Application Flash Memory1008 Kbytes
Operating Shock15 g
Non-Operating Shock30 g
Operating Temperature32-131 F (0-55 C)
Dimensions13.97 x 17.37 x 15.53 in (355 x 441 x 394 mm)
Display Dimensions10.0 x 7.5 in (255 x 191 mm)
Weight43.2 lbs (19.6 kg)
Method of InputTouchscreen
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 2711-T14C3 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 2711-T14C3 units instead of migration.

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2711-T14C3
Power TypeAC
Supply Voltage Limit85-264 Volts; 43-63 Hertz
Power Consumption200 VA max
Comm PortDH-485
Total Application Flash Memory1008 Kbytes
Operating Shock15 g
Non-Operating Shock30 g
Operating Temperature32-131 F (0-55 C)
Dimensions13.97 x 17.37 x 15.53 in (355 x 441 x 394 mm)
Display Dimensions10.0 x 7.5 in (255 x 191 mm)
Weight43.2 lbs (19.6 kg)
Method of InputTouchscreen
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 2711-T14C3 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 2711-T14C3 units instead of migration.


About 2711-T14C3

The Allen-Bradley 2711-T14C3 is a PanelView standard 1400 AC terminal that features a touchscreen instead of keypad input. The terminal's touchscreen is a Color CRT screen measuring 14 inches and with an 800 x 600-pixel resolution. The screen is made up of 384 touch cells, with each cell measuring 33 x 37 pixels, that fill up 16 rows and 24 columns. The 2711-T14C3 terminal also comes with status indicators that show the current state of the terminal. It also has a DH-485 communication port, an RS-232 printer port, and a total application flash memory of 1008 KB. The terminal is housed in a NEMA Type 12/13 or 4x enclosure that is only for indoor use. It measures 13.97 x 17.37 x 15.53 inches and weighs 43.2 pounds or 19.6 kilograms.

It has supply voltage limits of 85 to 264 Volts AC and 43 to 63 Hertz, with a maximum power consumption of 200 VA. Its operating vibration is 1g at up to 2000 Hertz, its operating shock of 15g, and its non-operating shock is 30g. Its operating temperature is between 32 to 131 degrees Fahrenheit and its storage temperature is between -40 and 185 degrees Fahrenheit. It has a heat dissipation of 78 W or 264 BTU/hour and a non-condensing relative humidity between 5 and 95% at 32 to 131 degrees Fahrenheit.

Technical Description of 2711-T14C3

DH-485 Communication and RS-232 Printer Port

Repair Services for 2711-T14C3

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 2711-T14C3. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for 2711-T14C3

Please refer to the manual for more information about the 2711-T14C3 such as the wiring diagrams, data sheets and migration or obsolescence details.

Revision Part # Also Known as Availability
2711-T14C3/A, Series A, Rev A Request Quote
2711-T14C3/B, Series B, Rev B Request Quote
2711-T14C3/C, Series C, Rev C Request Quote
2711-T14C3/D, Series D, Rev D Request Quote
2711-T14C3/E, Series E, Rev E Request Quote
2711-T14C3/F, Series F, Rev F Request Quote
2711-T14C3/G, Series G, Rev G Request Quote
2711-T14C3/H, Series H, Rev H Request Quote
2711-T14C3/I, Series I, Rev I Request Quote
2711-T14C3/J, Series J, Rev J Request Quote
2711-T14C3/K, Series K, Rev K Request Quote
2711-T14C3/L, Series L, Rev L Request Quote
2711-T14C3X
2711-T14C3/X, Series X, Rev X Request Quote
Common misspellings:
  • 27l1-T14C3
  • 271l-T14C3
  • 2711-Tl4C3
  • 2711-T1AC3
  • 2711T14C3

Dimensions For 2711-T14C3

Size 14 inch
Input Type Touch
Panel Cutout Height 305 mm (12.0 in)
Panel Cutout Width 391 mm (15.40 in)
Terminal Height 355 mm (13.97 in)
Terminal Width 441 mm (17.37 in)
Terminal Overall Depth 394 mm (15.53 in)
Terminal Mounted Depth 370 mm (14.58 in)

Dimensions For 2711-T14C3

Resolutions For 2711-T14C3

Size 14 inch
Input Type Touch
Display Resolution 800 x 600
About

Technical Specifications for 2711-T14C3

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2711-T14C3
Power TypeAC
Supply Voltage Limit85-264 Volts; 43-63 Hertz
Power Consumption200 VA max
Comm PortDH-485
Total Application Flash Memory1008 Kbytes
Operating Shock15 g
Non-Operating Shock30 g
Operating Temperature32-131 F (0-55 C)
Dimensions13.97 x 17.37 x 15.53 in (355 x 441 x 394 mm)
Display Dimensions10.0 x 7.5 in (255 x 191 mm)
Weight43.2 lbs (19.6 kg)
Method of InputTouchscreen
Product Lifecycle Status*Discontinued/Obsolete
ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2711-T14C3
Power TypeAC
Supply Voltage Limit85-264 Volts; 43-63 Hertz
Power Consumption200 VA max
Comm PortDH-485
Total Application Flash Memory1008 Kbytes
Operating Shock15 g
Non-Operating Shock30 g
Operating Temperature32-131 F (0-55 C)
Dimensions13.97 x 17.37 x 15.53 in (355 x 441 x 394 mm)
Display Dimensions10.0 x 7.5 in (255 x 191 mm)
Weight43.2 lbs (19.6 kg)
Method of InputTouchscreen
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 2711-T14C3 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 2711-T14C3 units instead of migration.

About 2711-T14C3

The Allen-Bradley 2711-T14C3 is a PanelView standard 1400 AC terminal that features a touchscreen instead of keypad input. The terminal's touchscreen is a Color CRT screen measuring 14 inches and with an 800 x 600-pixel resolution. The screen is made up of 384 touch cells, with each cell measuring 33 x 37 pixels, that fill up 16 rows and 24 columns. The 2711-T14C3 terminal also comes with status indicators that show the current state of the terminal. It also has a DH-485 communication port, an RS-232 printer port, and a total application flash memory of 1008 KB. The terminal is housed in a NEMA Type 12/13 or 4x enclosure that is only for indoor use. It measures 13.97 x 17.37 x 15.53 inches and weighs 43.2 pounds or 19.6 kilograms.

It has supply voltage limits of 85 to 264 Volts AC and 43 to 63 Hertz, with a maximum power consumption of 200 VA. Its operating vibration is 1g at up to 2000 Hertz, its operating shock of 15g, and its non-operating shock is 30g. Its operating temperature is between 32 to 131 degrees Fahrenheit and its storage temperature is between -40 and 185 degrees Fahrenheit. It has a heat dissipation of 78 W or 264 BTU/hour and a non-condensing relative humidity between 5 and 95% at 32 to 131 degrees Fahrenheit.

Technical Description of 2711-T14C3

DH-485 Communication and RS-232 Printer Port
Repairs
Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 2711-T14C3. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 2711-T14C3. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions

Please refer to the manual for more information about the 2711-T14C3 such as the wiring diagrams, data sheets and migration or obsolescence details.

Revision Part # Also Known as Availability
2711-T14C3/A, Series A, Rev A Request Quote
2711-T14C3/B, Series B, Rev B Request Quote
2711-T14C3/C, Series C, Rev C Request Quote
2711-T14C3/D, Series D, Rev D Request Quote
2711-T14C3/E, Series E, Rev E Request Quote
2711-T14C3/F, Series F, Rev F Request Quote
2711-T14C3/G, Series G, Rev G Request Quote
2711-T14C3/H, Series H, Rev H Request Quote
2711-T14C3/I, Series I, Rev I Request Quote
2711-T14C3/J, Series J, Rev J Request Quote
2711-T14C3/K, Series K, Rev K Request Quote
2711-T14C3/L, Series L, Rev L Request Quote
2711-T14C3X
2711-T14C3/X, Series X, Rev X Request Quote

Common misspellings:
  • 27l1-T14C3
  • 271l-T14C3
  • 2711-Tl4C3
  • 2711-T1AC3
  • 2711T14C3
PDF
Dimensions

Dimension For 2711-T14C3

Size 14 inch
Input Type Touch
Panel Cutout Height 305 mm (12.0 in)
Panel Cutout Width 391 mm (15.40 in)
Terminal Height 355 mm (13.97 in)
Terminal Width 441 mm (17.37 in)
Terminal Overall Depth 394 mm (15.53 in)
Terminal Mounted Depth 370 mm (14.58 in)
Resolutions

Resolutions For 2711-T14C3

Size 14 inch
Input Type Touch
Display Resolution 800 x 600
