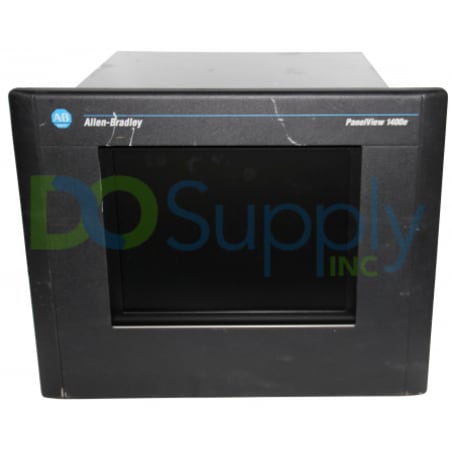

The Allen-Bradley 1400ELTC6 is a Panelview 1400E Operator Interface device with a 14-inch color display. It can be stud mounted, it is protected by a NEMA 4X enclosure, and its input type is an analog resistive touchscreen.
We sell industrial automation parts backed by our 2-year DO Supply Warranty.
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
Repairs and exchanges are available for all automation products.
Drop shipping, blind shipping, and account shipping with no extra fees.
Manufacturer | Rockwell Automation |
---|---|
Brand | Allen-Bradley |
Part Number/Catalog No. | 1400ELTC6 |
Series | Panelview 1400E |
Display Type | Color |
Display Size | 14-inch Display Screen |
Communication Type | DH+/Remote I/O Communications |
Mounting Style | Stud Mount |
Enclosure Type | NEMA 4X (indoor use only) |
Input Type | Analog Resistive Touch Screen |
Actuation Rating | 1,000,000 Presses |
Bezel | Cast Aluminum with Black Powder Coating |
Operating Temperature Range | 32 to 122 degrees Fahrenheit |
Dimensions | 19.00 inches x 13.97 inches x 16.71 inches |
Product Lifecycle Status* | Discontinued/Obsolete |
* The Allen Bradley 1400ELTC6 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1400ELTC6 units instead of migration.
The 1400ELTC6 is a 14-inch touch PanelView 1400E operator terminal. This human-machine interface (HMI) is a great solution for creating a graphical interface that allows the operators to interact with machines controlled by PLCs. It is the PLC that gathers information from the sensors and transforms it into data that can be transferred to the HMI in readable form, so the users will be able to act over the 1400ELTC6 terminal to control the process. The touchscreen is analog-resistive and it has an actuation rating of 1,000,000 presses. The users can connect a keyboard or a barcode reader to this device over a dedicated connector. There is a PCMCIA card slot available on the lower back side of the terminal. It is used to insert memory cards which the users can use to backup programs and expand memory. When the users turn off the terminal, its memory will be retained because it is backed up with a battery. The battery can hold the data unchanged for 2.5 to 7.7 years, but the exact length of time is dependent on the ambient temperature.
The Allen-Bradley 1400ELTC6 has an auto-select switching power supply function. The users can supply it with 90 to 132 Volts AC voltage with 60 Hertz frequency, or with 80 to 264 Volts AC voltages with 50 Hertz frequency. The 1400ELTC6 touchscreen terminal has a NEMA 4x rated housing that has dimensions of 19.00 inches x 13.97 inches x 16.71 inches (483 millimeters x 355 millimeters x 425 millimeters). The device can operate without problems at temperatures between 0 and 50 degrees Celsius (32 and 122 degrees Fahrenheit). The terminal weight is approximated at 32.6 pounds (14.8 kilograms).
Revision Part # | Also known as | |
---|---|---|
1400ELTC6 Ser A | 1400ELTC6/A, Series A, Rev A | Request a quote |
1400ELTC6 Ser B | 1400ELTC6/B, Series B, Rev B | Request a quote |
1400ELTC6 Ser C | 1400ELTC6/C, Series C, Rev C | Request a quote |
1400ELTC6 Ser D | 1400ELTC6/D, Series D, Rev D | Request a quote |
1400ELTC6 Ser E | 1400ELTC6/E, Series E, Rev E | Request a quote |
1400ELTC6 Ser F | 1400ELTC6/F, Series F, Rev F | Request a quote |
1400ELTC6 Ser G | 1400ELTC6/G, Series G, Rev G | Request a quote |
1400ELTC6X | 1400ELTC6/X, Series X, Rev X | Request a quote |
Don't see your particular revision? Contact us now. |
The 1400ELTC6 has a color display.
The 1400ELTC6 has a NEMA 4X enclosure.
Yes, the 1400ELTC6 has a PCMCIA card slot.
Yes, the 1400ELTC6 has a battery-backed memory.
Yes, the 1400ELTC6 has a touchscreen.
The 1400ELTC6's ambient operating temperature range is 32 to 122 degrees Fahrenheit.
