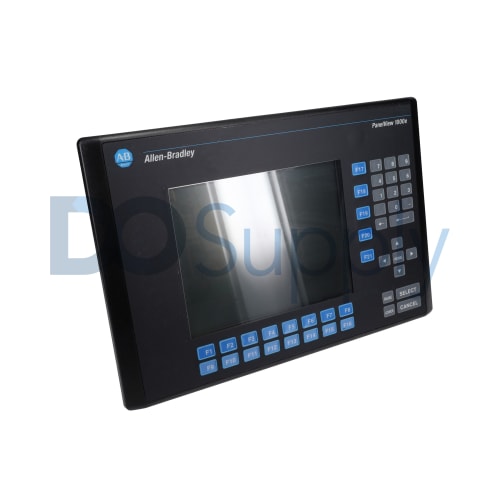

Allen Bradley Panelview 2711E 2711E-K10C15X

Product image is representative; revision or series may vary. Contact us to request a specific version.

2711E-K10C15X

|
Need a Specific Revision?

The 2711E-K10C15X from Allen Bradley is an operator interface designed primarily for industrial applications. It features a 10.4-inch TFT color LCD that supports a resolution of 640 x 480 pixels, offering a clear visual interface for operators.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 2711E-K10C15X

ManufacturerAllen Bradley
Product TypeOperator Interface
Product LinePanelview 2711E
Part Number2711E-K10C15X
Weight13.00 lbs (5.90 kg)
Input Voltage Rating180 to 264 Volts AC
Display Size10.4 inches
Communication PortControlNet, DH+, and remote input/output ports
Enclosure RatingNEMA 4X (Indoor-only use)
Ambient Operating Temperature0 to 50°C (in a non-condensing environment)
Display TypeThin Film Transistor (TFT) color Liquid Crystal Display (LCD)
Viewing Area211 x 158 millimeters
Storage Temperature-25 to 60°C (in a non-condensing environment)
Mounting MethodClip mount
Operator Input TypeKeypad
Backlight Life SpanApproximately 10,000 hours (minimum) to 50,000 hours (maximum)
Memory Capacity2.25 megabytes of flash memory
Shock Resistance15 G (operating) and 30 G (non-operating) at 11 milliseconds
Display Resolution640 x 480 pixels
View as PDF
Request a Repair

The Allen Bradley 2711E-K10C15X is classified as an operator interface, tailored for use in various industrial control scenarios. This device integrates a 10.4-inch display utilizing Thin Film Transistor (TFT) technology in its color LCD, providing clarity and reliable visual feedback at a resolution of 640 x 480 pixels.

Designed to operate with an input voltage range of 180 to 264 Volts AC, it ensures compatibility with a variety of power supplies. The interface supports multiple forms of communication, including ControlNet and DH+, in addition to remote input and output ports, facilitating easy integration into complex systems.

Its enclosure holds a NEMA 4X rating, which makes it appropriate for indoor environments, effectively protecting against dust and moisture. The ambient operating temperature is rated between 0 and 50°C, while the storage temperature range extends from -25 to 60°C, assuring operational robustness in various conditions.

Users can interact with the interface through a keypad, and the unit features a clip mount for versatile installation options. For enhanced visibility, the display includes a backlight with an expected lifespan ranging from approximately 10,000 to 50,000 hours. Memory-wise, this operator interface is equipped with 2.25 megabytes of flash memory. It also exhibits shock resistance ratings of 15 G during operation and 30 G when not in use, capable of withstanding impacts for reliable performance.
