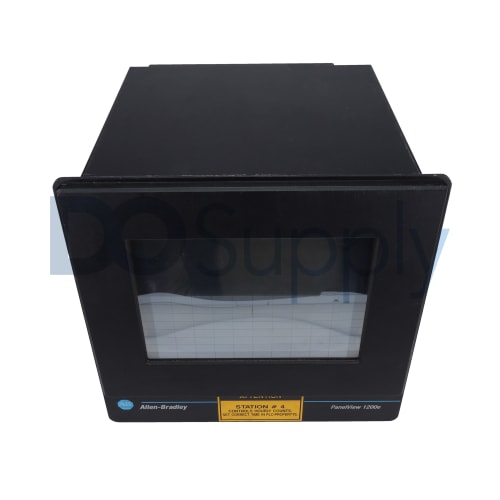

Allen Bradley Panelview 2711E 2711E-T12C6X

Product image is representative; revision or series may vary. Contact us to request a specific version.

2711E-T12C6X

|
Need a Specific Revision?

The 2711E-T12C6X from Allen Bradley is a touch-based HMI model that features a 12-inch CRT display. With a resolution of 640 × 480 pixels and a fixed color palette of 16 colors, it offers effective visual interaction in industrial settings. Designed for durability, this unit can handle shocks of up to 15 G and 1 G of vibration.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 2711E-T12C6X

ManufacturerAllen Bradley
Product TypeTouch HMI
Product LinePanelview 2711E
Part Number2711E-T12C6X
Weight32.00 lbs (14.51 kg)
Durability15 G shock, 1 G vibration
Environmental Limits0–50 °C, 95% RH
Battery & ClockLithium, RTC ±7 min/mo
Memory256 KB + PCMCIA slot
Serial PortsRS-232
CommunicationsDH+, Remote I/O
Display Size12" CRT
Resolution640 × 480
Colors16 fixed
Touch Input120 cells, 1M presses
Housing MaterialAluminum bezel
Power Supply90–132 / 180–264 VAC
View as PDF
Request a Repair

The Allen Bradley 2711E-T12C6X is a robust touch HMI that integrates a 12-inch CRT display, providing a resolution of 640 × 480 pixels for clear visual output. This interface is capable of displaying 16 fixed colors, allowing for precise interactions in machine monitoring and control. Weighing in at 14.8 kg, the design emphasizes ease of installation and operation in various settings.

The housing is constructed from durable aluminum bezels, which help protect the internal components from environmental stressors. The unit's resilience is further demonstrated by its capacity to withstand shocks of 15 G and vibrations of 1 G, making it suitable for industrial applications where stability is essential.

In terms of environmental resistance, the 2711E-T12C6X performs effectively between 0 and 50 °C, with a relative humidity tolerance of up to 95%. This unit is powered by a voltage range of 90–132 VAC or 180–264 VAC, providing flexibility in different operational scenarios.

Memory is provided through 256 KB of built-in storage, complemented by a PCMCIA slot for additional data capacity. For communication, the terminal is equipped with RS-232 serial ports and supports DH+ and Remote I/O protocols, ensuring robust connectivity options.

Moreover, it features a lithium battery for its real-time clock, which maintains accuracy within ±7 minutes monthly. With a touch interface rated for 120 cells and capable of 1 million presses, the 2711E-T12C6X is designed for frequent user interaction, making it a reliable choice for machine interfaces in various industrial contexts.
