About 2711E-T14C6

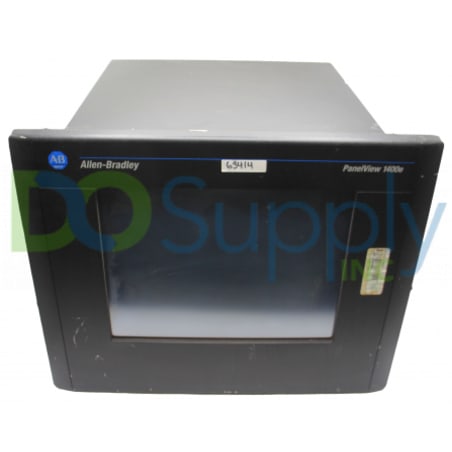

The Allen-Bradley 2711E-T14C6 is part of the PanelView 1400e Operator Terminal. This is an obsolete Human Machine Interface (HMI) device that provides centralized monitoring and control of machine and process from a convenient location in the factory-floor.

This operator terminal has a rugged design, allowing it to be installed and used in a wide range of industrial applications and industries. Being part of the early versions of HMI, this operator terminal comes with a 14-inch Cathode Ray Tube (CRT) with display area of 247.6 mm × 185.7 mm and 256 fixed colors with a resolution of 640 by 480 pixels and an integrated anti-glare component for and improved view of the HMI display.

This PanelView 1400e allows operator interaction via the touchscreen interface with Minimum size of 40 × 40 pixel touch cell and a maximum number of touch cells at 192 or 16x12 pixels. This touchscreen membrane is rated for an actuation rating range of 2.5 to 3 oz or 71 to 85 grams. It is made of cast aluminum with black powder coating bezel and 95% gloss, hard-coated, scratch-resistant polyester, over chemically strengthened glass touch membrane.

Available communication interfaces with this operator terminal are Data Highway Plus (DH+) / Remote I/O communications port which are support high-speed communication utilizing daisy-chain topology. This communication interfaces uses a common communication cable which is the Allen-Bradley 1771-CD or Belden 9463 communication cable.

The 2711E-T14C6 has a rated minimum power consumption of 60 Watts and maximum of 100 Watts. The integrated CMOS battery is capable of being operated for 10 years operation, used for retaining e internal real-time clock of the device.

The power consumption for the 2711E-T14C6 is rated at 60 Watts with up to 100 Watts of maximum consumption. The 2711E-T14C6 also features a factory-installed permanent battery with a lifespan of 10 years. The unit also comes with 256 KB flash user memory running on the PanelBuilder 1400E software. The 2711E-T14C6 features different user-definable function keys with a keypad that is used for entering numeric values. The 2711E-T14C6 keypad comes as a pre-labeled unit supporting the creation of the key labels to suit the application needs.

The 2711E-T14C6 features special keypad keys that include arrow keys and a home key used for navigating through the set bit cursor and the numeric input cursor points. The select key is used with a set bit cursor and it has the numeric input cursor points used to pop up the numeric entry scratchpad. The 2711E-T14C6 comes with a standard feature on all of the terminals with valid back numbers. The maximum number of racks is 64 and features the discrete and the block transfer configurations. These allow the device to achieve direct access to the other RIP ports without the PLC Logic module. The 2711E-T14C6 comes with the RS-232 serial featuring the ControlNet/RIO pass-through feature. The unit supports connectivity to multiple PLCs as well as the other PanelView terminals. It has a 24-hour display clock that can adjust accurately for up to 7 minutes per month at 50 degrees Celsius (122 degrees Fahrenheit). The 2711E-T14C6 has an operational temperature range between 32 and 122 degrees Fahrenheit and a relative humidity limit of 95% at 86 degrees Fahrenheit. It has a shock rating of 15 G and operational vibration of 1 G at 80 to 2000 Hertz.

FAQ for 2711E-T14C6

Question	Answer
1: What is the input type of the 2711E-T14C6 terminal?	The 2711E-T14C6 terminal has a touch screen input.
2: Which configuration software should I use for my 2711E-T14C6 terminal?	You should use the PanelBuilder 1400e Configuration Software for Windows to configure your terminal.
3: What is the price of a 2711E-T14C6 1400e Touch Screen Terminal?	Submit quote request, send us an email, or call 800-730-0292 for our best price.
4: Does DO Supply offer repairs for the 2711E-T14C6 1400e Touch Screen Terminal?	DO Supply offers repair services for a variety of Allen-Bradley products. For more information or to request a quote, please click here.
5: What type of software does this module require?	The 2711E-T14C6 uses PanelBuilder 1400E software.
6: Does this module have a replaceable backlight?	Yes, this module's backlight can be replaced with the 6189-NL2.
7: What is the physical dimension of the 2711E-T14C6?	This PanelView Operator measures 13.97” (Height) x 19” (Width) x 15.90” (Depth).
8: What is the power supply requirement of the 2711E-T14C6?	This 2711E-T14C6 is powered by an AC supply range of 90–132, 180–264 V ac, auto-sensing.
9: Does this PanelView come with a screensaver functionality?	Yes. Screen saver can be configured to prolong the CRT screen operation.

Repair Services for 2711E-T14C6

Type	Lead Time	Price	Action
Repair Service	2-4 weeks	$1455.79	Add to Cart

Our highly skilled technicians can repair your 2711E-T14C6. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for 2711E-T14C6

Please refer to the manual for more information about the 2711E-T14C6 such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.

Revision Part #	Also Known as	Availability
2711E-T14C6 Ser A	2711E-T14C6/A, Series A, Rev A	Request Quote
2711E-T14C6 Ser B	2711E-T14C6/B, Series B, Rev B	Request Quote
2711E-T14C6 Ser C	2711E-T14C6/C, Series C, Rev C	Request Quote
2711E-T14C6 Ser D	2711E-T14C6/D, Series D, Rev D	Request Quote
2711E-T14C6 Ser E	2711E-T14C6/E, Series E, Rev E	Request Quote
2711E-T14C6 Ser F	2711E-T14C6/F, Series F, Rev F	Request Quote
2711E-T14C6 Ser G	2711E-T14C6/G, Series G, Rev G	Request Quote
2711E-T14C6X	2711E-T14C6/X, Series X, Rev X	Request Quote

Reviews for 2711E-T14C6

Internal Review

"The 2711E-T14C6 is a PanelView 1400e operator terminal. This is a Human Machine Interface (HMI) device used to implement operator and machine interaction. This operator terminal has a more convenient way of operating the system as it comes with a touchscreen input interface compared to the 2711E-K14C6 which has embedded keypad. Touchscreen interface lessens the risk of human error as it permits direct control interaction without the need of referencing and memorizing variable functions of buttons." -DO Supply Tech
