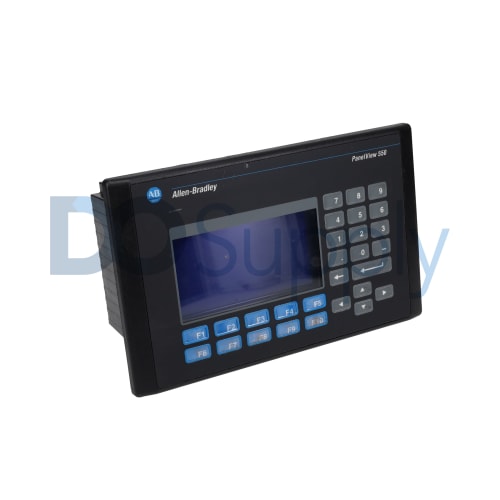

The Allen-Bradley 2711-K5A1 is a Panelview 550 Standard Operator Terminal. This operator terminal is powered by an external 85-264V AC supply voltage and has a 5.5 inch monochrome display with embedded Remote I/O communication (RIO) communication and RS232 printer port. It has Ten (10) Function keys and a Keypad operator interface.
We sell industrial automation parts backed by our 2-year DO Supply Warranty.
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
Repairs and exchanges are available for all automation products.
Drop shipping, blind shipping, and account shipping with no extra fees.
Backlight | 100,000 hr LED backlight life |
---|---|
Brand | Allen-Bradley |
Manufacturer: | Rockwell Automation |
Product Family: | PanelView Standard Operator Terminals |
Product Type: | PanelView 550 Standard Operator Terminals |
Operator Input: | Keypad |
Display Type: | Monochrome transflective LCD with LED backlight |
Display Area: | 120 x 60 mm (4.75 x 2.38 in.) |
Resolution: | 256 x 128 |
Keypad Assembly: | 10 function keys (F1…F10) |
Application memory: | 170 KB application runtime; 240 KB nonvolatile memory (application objects plus text and bitmaps) |
Communication ports: | Remote I/O (RIO); RS232 (printer) |
Input Voltage range: | 85…264V AC |
Input Frequency: | 47…63 Hz |
Enclosure: | NEMA Type 12/13, 4X (Indoor use only), IP54, IP65 |
Status Indicators: | COMM: Green Fault: Red |
Part Number/Catalog No. | 2711-K5A1 |
Product Line | Panelview 550 |
Display Size | 5.5 in. |
Display Color | Monochrome LCD blue mode |
Input Type | Keypad(F1-F10) |
Communication | Remote I/O Communication and RS-232 Printer Port |
Input Power | 120 VAC |
Memory | 170 KB application runtime |
Communication Cable | 2711-NC13 |
Shipping Weight | 6 lbs |
Shipping Dimensions | 14x11x8 inches |
Series | A,B,C,D,E,F,G,H |
UPC | 883809653284 |
UNSPSC | 43211902 |
Product Lifecycle Status* | Discontinued/Obsolete |
* The Allen Bradley 2711-K5A1 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 2711-K5A1 units instead of migration.
The 2711-K5A1 is a Human Machine Interface (HMI) device that is part of Allen-Bradley’s bulletin 2711 PanelView Standard Operator terminals. This product category is an obsolete product line with an industrially approved assembly, able to operate and withstand the demanding requirements of the automation industry.
The 2711-K511 comes with a rugged design which primarily featured a 5.5-inch display screen, with display area of 120 x 60 mm (4.75 x 2.38 in.) where monochrome process or machine mimic display may be designed to effectively reflect the status of operation of any connected application. This HMI is capable of displaying industrial graphical representation, texts and symbols related to the process. This monochrome screen provides the process visualization.
Control and interaction to the machine or process is initiated through the embedded keypad which is composed of Then (10) function keys, numerical key set and navigational buttons. These keypads enable the operator to enter commands, modify parameters, interact to system alarms and messages and navigate to different HMI screens. Communication with controllers is implemented through the built-in Remote I/O (RIO) communication terminal that supports daisy-chain topology, using Belden 9463 cable. It also has a single RS232 Printer port that is specifically used for communicating with printers for documentation of alarm logs.
The 2711-K5A1 comes with built-in memory pre-allocated for 170 KB application runtime and 240 KB nonvolatile RAM used for application objects plus text and bitmaps.
The 2711-K5A1 is an Allen-Bradley Panelview 550 terminal. The 2711-K5A1 Panelview terminal has a 5.5-inch monochrome LCD blue mode screen. This terminal has an internal backlight that is designed to last up to 100,000 operational hours. It comes with a built-in Remote I/O (RIO) communication port and RS-232 printer port.
The user is able to monitor and control the process using the built-in keypad where process information, data, and commands are initiated. The keypad has 10 programmable function keys labeled from F1 to F10 that can be assigned and perform specific functions. The 2711-K5A1 PanelView terminal is powered by 85-264V AC supply voltage. This unit has an internal memory of 170 KB of application runtime. Accessories that users can add on to the 2711-K5A1 terminal for different functions include a PC memory card, a function key legend, and an anti-glare shield for the display.
Revision Part # | Also known as | |
---|---|---|
2711-K5A1 Ser A | 2711-K5A1/A, Series A, Rev A | Request a quote |
2711-K5A1 Ser B | 2711-K5A1/B, Series B, Rev B | Request a quote |
2711-K5A1 Ser C | 2711-K5A1/C, Series C, Rev C | Request a quote |
2711-K5A1 Ser D | 2711-K5A1/D, Series D, Rev D | Request a quote |
2711-K5A1 Ser E | 2711-K5A1/E, Series E, Rev E | Request a quote |
2711-K5A1 Ser F | 2711-K5A1/F, Series F, Rev F | Request a quote |
2711-K5A1 Ser G | 2711-K5A1/G, Series G, Rev G | Request a quote |
2711-K5A1 Ser H | 2711-K5A1/H, Series H, Rev H | Request a quote |
2711-K5A1X | 2711-K5A1/X, Series X, Rev X | Request a quote |
Don't see your particular revision? Contact us now. |
We can Repair your Panelview 550
We have a team of highly trained technicians that can repair your panelview quickly at a great low price. To get a repair quote call +1 (919) 205-4392 or email sales@dosupply.com. Some of the benefits of our repair process includes:
We Can Repair Your Hardware failures including:
Yes, the 2711-K5A1 terminal has a replaceable internal backlight. The replacement part number is 2711-NL1.
Submit a quote request, send us an email, or call +1 (919) 205-4392 for our best price.
The 2711-K5A1 has a keypad input.
The 2711-K5A1 has a blue monochrome LCD as its display type.
The 2711-K5A1 has a Monochrome LCD blue mode display.
The 2711-K5A1 has a Remote I/O (RIO) communication port and RS232 Printer interface.
The supply voltage range of the 2711-K5A1 is powered by a supply voltage range of 85-264VAC.
The 2711-K5A1 is part of the Panelview 550 series. It has a 5.5 inch Monochrome display, Keypad(F1-F10) user input, 100-240 VAC 50/60 HZ input power, and has Remote I/O Communication and RS-232 Printer Port.
This Standard Panelview HMI can only be controlled using the (F1...F10) Keypad.
The 2711-K5A1 is a PanelView 500 standard operator terminal. This operator terminal comes with a slightly larger screen, compared to the PanelView micro and PanelView 300 operator terminals. However, only black and white graphics and animation are supported, limiting the information that can be conveyed by the operator terminal.
Size | 5.5 inch |
---|---|
Input Type | Keypad and Touch |
Panel Cutout Height | 144 mm (5.66 in) |
Panel Cutout Width | 243 mm (9.55 in) |
Terminal Height | 167 mm (6.57 in) |
Terminal Width | 266 mm (10.47 in) |
Terminal Overall Depth | 106 mm (4.17 in) |
Terminal Mounted Depth | 86 mm (3.39 in) |
Size | 5.5 inch |
---|---|
Input Type | Keypad, Keypad and Touch |
Display Type | Monochrome LCD blue mode display |
Display Size (Diagonal) | 5.5 in. |
Viewing Area | 120 x 60 mm (4.75 x 2.38 in.) |
Display Resolution | 256 x 128 |
